(Continued)

11.

While the machine is running, try to turn the latch counterclockwise.

Power may be cut to the motor but you should be unable to fully turn the

latch. If it is possible to turn the latch and open the lid while the unit is

running, contact The Drucker Company for assistance. Close and latch

the lid.

12.

Push the ‘OPEN / EMERGENCY STOP’ button. The ‘RUN’ indicator

light should go out and the motor should slow to a stop.

13.

The lid should remain locked until the rotor has nearly stopped. If the

machine unlocks prematurely, contact The Drucker Company for

assistance. Once the rotor has stopped, the interlock system will b

come disengaged for sixty (60) seconds. The ‘UNLOCKED’ indicator

light will illuminate during this time.

14.

To gain entry into the centrifuge after this period has ended, simply

press the ‘OPEN / EMERGENCY STOP’ button. The lid will unlock for

fifteen (15) additional seconds.

After the centrifuge has passed this procedure it is ready for operation.

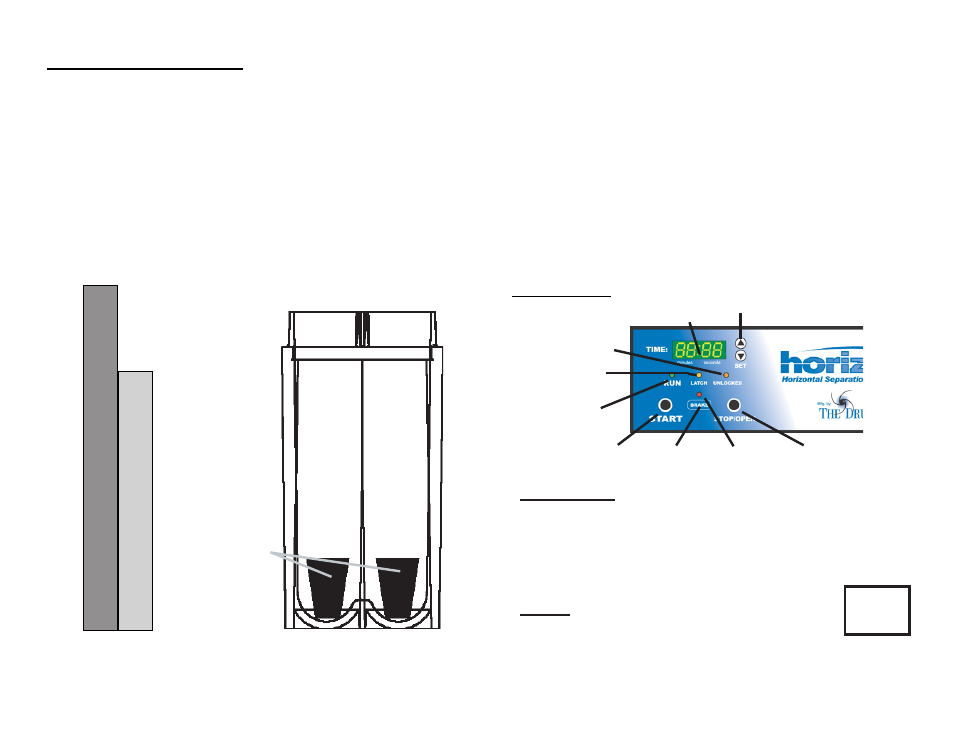

Control Panel:

Page 5

‘START’

Button

‘OPEN /

EMERGENCY

STOP’

Button

‘RUN’

Indicator Light

‘LATCH’

Indicator Light
‘UNLOCKED’

Indicator Light

Page 8

‘BRAKE

ON/OFF’

Button

‘BRAKE

ON/OFF’

Indicator

Light

‘TIME

UP/DOWN’

Buttons

‘TIME SET /

REMAINING’

Display

Indicator Lights:

TIME DISPLAY:

Shows the time set (idle) / shows time

remaining during a run

LATCH:

Illuminates when the latch is properly closed

UNLOCKED:

Illuminates when the lid is unlocked

RUN:

Illuminates when the motor is running

BRAKE:

Illuminates when the brake feature is turned on /

flashes when the motor is braking

Buttons:

START:

Begins a run

STOP:

Ends a run / Unlocks the lid

BRAKE:

Toggles the brake status (AUTO / OFF)

TIME UP/DOWN:

Set the time from 1 to 99 minutes

Tube Carrier Configurations:

A.

B.

See page

7 for

additional

functions

The horizontal rotor shipped with your Horizon Centrifuge is capable of spinning tubes

up to 16mm x 100mm. Use the following illustration to determine if you should use a

tube cushion.

Configuration A (100 mm tubes):

Use the tube holder as is with no additional tube cushions.

Configuration B (75mm tubes):

Place a 1” tube cushion in the bottom of each of the tube locations in the tube holder as

shown in the picture to the right.

1” Tube

Cushions

p/n 1525

(Configuration B)
