04
Any use other than those specified by the Manufacturer is explicitly prohibited.
Maximum sample density is 1.15 grams / mL, (water density = 1.0 grams / mL)
*Check Serial Number Badge for Your Model Specific Voltage Requirement.
Permitted Environmental Conditions
Electrical Requirements
Speed Range (Horizontal Rotor): ............. 1,000 - 3,200 rpm (+/- 100 rpm)
Speed Range (Fixed-angle Rotor): ........... 1,000 - 3,900 rpm (+/- 100 rpm)
Maximum Capacity (Horizontal Rotor): ... 60 mL (6 × 10 mL)
Maximum Capacity (Fixed-angle Rotor): .. 90 mL (6 × 15 mL)
Operating Voltage Ranges: ....................... 103 - 127 VAC or 207 - 253 VAC
Overall Dimensions (H x W x D): ............... 9.0˝ Ч 11˝ Ч 12.5˝ (22 cm × 28 cm × 32 cm)
Centrifuge Motor: ...................................... 1/30 HP, PSC motor
Nominal Acceleration Time: ..................... 10 seconds
Protection Breaker: ................................... 4 Amp. re–settable
Timer: .......................................................... Electronic, with hold or 0 to 99 minutes, +/- 1%
Weight: ........................................................ 18.5 lbs. (8.4 kg)
Ambient Temperature During Operation: 2 o C - 40 o C
Maximum Relative Air Humidity: .............. 90%
Power (Watts): ............................................ 200
Voltage (Volts): ............................................ 115 VAC (+/- 10), 230 VAC (+/- 20)*
Frequency (Hz): ........................................... 50/60
Specifications
General Specifications for the Horizon Model 642VES Centrifuge

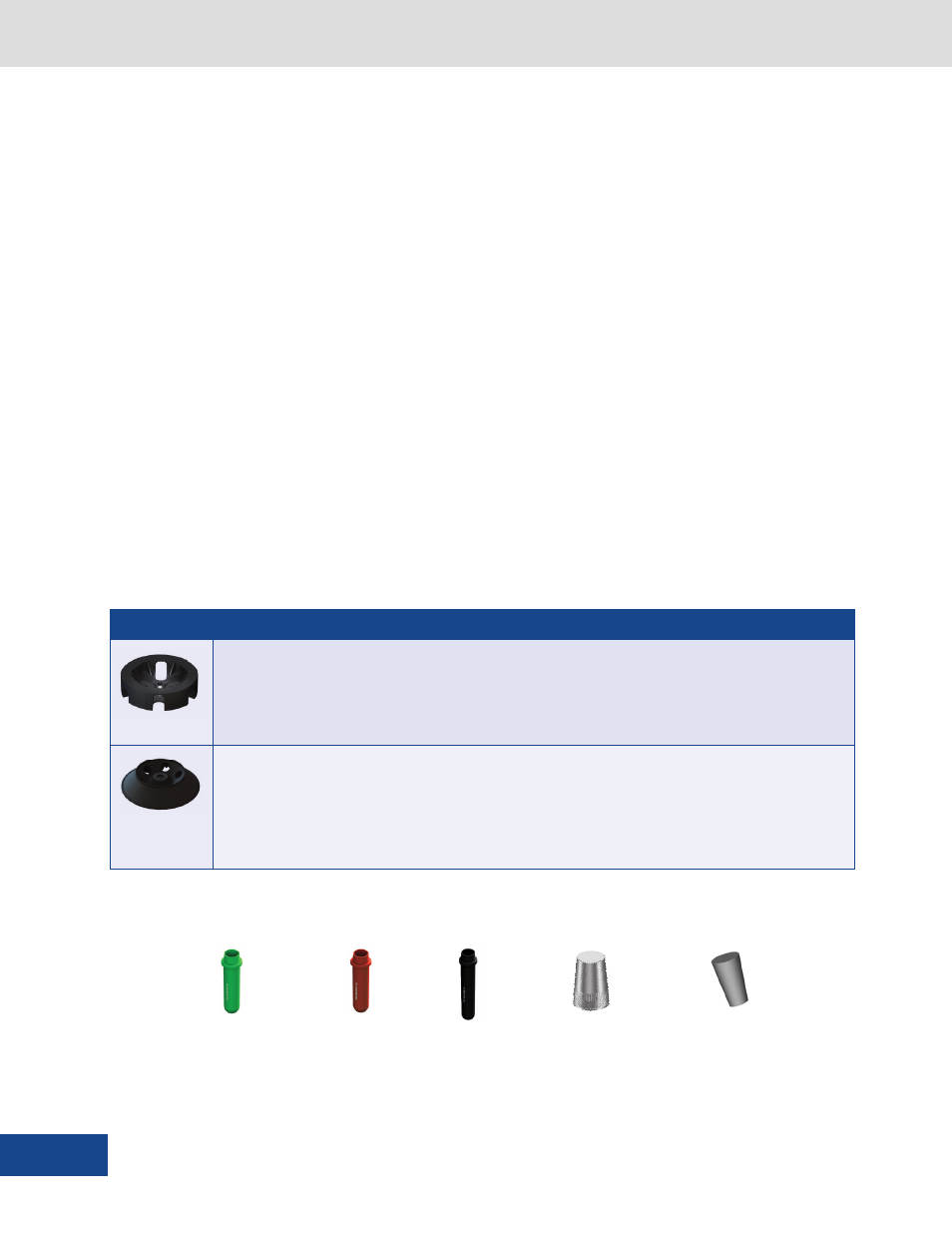

Contact your authorized dealer or The Drucker Co. to order accessories.
75 mm Tube Holder
p/n 7713033
100 mm
Tube Holder
p/n 7713031
125 mm
Tube Holder
p/n 7713032
Tube Holder Cap
p/n 7713011
1˝ Cushion Spacer
p/n 1525
7786021
75 mm tube holder 7713033 6 17 mm x 75 mm 1,000 to 3,200 RPM 111 to 1,134 xg
100 mm tube holder 7713031 6 17 mm x 100 mm 1,000 to 3,200 RPM 139 to 1,425 xg
7786047
75 mm tube holder 7713033 6 17 mm x 75 mm 1,000 to 3,900 RPM 88 to 1,339 xg
100 mm tube holder 7713031 6 17 mm x 100 mm 1,000 to 3,900 RPM 105 to 1,598 xg
125 mm tube holder 7713032 6 17 mm x 125 mm 1,000 to 3,900 RPM 122 to 1,857 xg
6-Place Horizontal Rotor
6-Place Fixed-angle Rotor
PART NO. # MAX TUBE SIZE SPEED RANGE FORCE RANGE
DESCRIPTION PART NO. MAX TUBE SIZE SPEED RANGE FORCE RANGE
6-Place Fixed-Angle Rotor 7786047 This rotor or rotor accessory is rated for a rotational speed of 4,500 rpm and a force of 2,475 × g
7713033 (Green)
7713043 (Blue)
75 mm Tube Holders 17 mm x 75 mm 1,000 to 3,900 rpm 88 to 1,339 × g
7713031 (Red)
7713040 (Purple)
100 mm Tube Holders 17 mm x 100 mm 1,000 to 3,900 rpm 105 to 1,598 × g
7713032 (Black)
7713044 (Orange)
125 mm Tube Holders 17 mm x 125 mm 1,000 to 3,900 rpm 122 to 1,857 × g
DESCRIPTION PART NO. MAX TUBE SIZE SPEED RANGE FORCE RANGE
6-Place Horizontal Rotor 7786021 This rotor or rotor accessory is rated for a rotational speed of 5000 rpm and a force of 3,475 × g
7713033 (Green)
7713043 (Blue)
75 mm Tube Holders 17 mm x 75 mm 1,000 to 3,200 rpm 111 to 1,134 × g
7713031 (Red)
7713040 (Purple)
100 mm Tube Holders 17 mm x 100 mm 1,000 to 3,200 rpm 139 to 1,425 × g
,
DESCRIPTION PART NO. MAX TUBE SIZE SPEED RANGE FORCE RANGE
6-Place Fixed-Angle Rotor 7786047 This rotor or rotor accessory is rated for a rotational speed of 4,500 rpm and a force of 2,475 × g
7713033 (Green)
7713043 (Blue)
75 mm Tube Holders 17 mm x 75 mm 1,000 to 3,900 rpm 88 to 1,339 × g
7713031 (Red)
7713040 (Purple)
100 mm Tube Holders 17 mm x 100 mm 1,000 to 3,900 rpm 105 to 1,598 × g
7713032 (Black)
7713044 (Orange)
125 mm Tube Holders 17 mm x 125 mm 1,000 to 3,900 rpm 122 to 1,857 × g
DESCRIPTION PART NO. MAX TUBE SIZE SPEED RANGE FORCE RANGE
6-Place Horizontal Rotor 7786021 This rotor or rotor accessory is rated for a rotational speed of 5000 rpm and a force of 3,475 × g
7713033 (Green)
7713043 (Blue)
75 mm Tube Holders 17 mm x 75 mm 1,000 to 3,200 rpm 111 to 1,134 × g
7713031 (Red)
7713040 (Purple)
100 mm Tube Holders 17 mm x 100 mm 1,000 to 3,200 rpm 139 to 1,425 × g
,
This rotor or rotor accessory is rated for a rotational speed of 5000 rpm and a force of 3,475 xg
This rotor or rotor accessory is rated for a rotational speed of 4,500 rpm and a force of 2,475 xg
