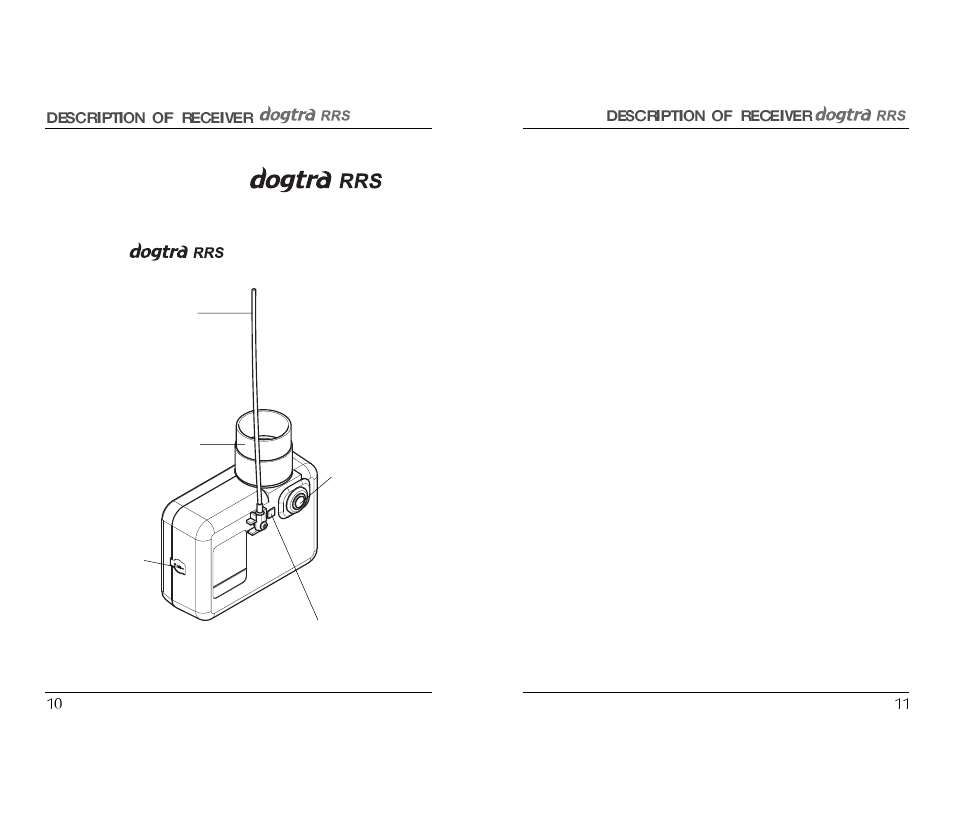

Receiver
1. Flexible antenna
2. Locator horn
5. Battery charging
receptacle
4. Receiver indicator light
3. Push button switch
DESCRIPTION OF
RECEIVER PARTS
LAUNCHER FUNCTIONS :
1. Flexible antenna - Receives transmissions
from the transmitter.
2. Locator horn - Emits a loud sound when the
transmitter's Locate button is pressed. It is
designed to help you find the launcher in
heavy cover.
3. Push button switch - Turns power on and off.
4. Receiver indicator light - Shows you when the
receiver is in use. When the receiver is turned
on, the indicator light will glow red. If it does
not come on, the battery needs to be charged.
5. Battery charging receptacle - To charge the
launcher, plug the battery cable jacks into the
battery charging receptacle.
