24
TESTING

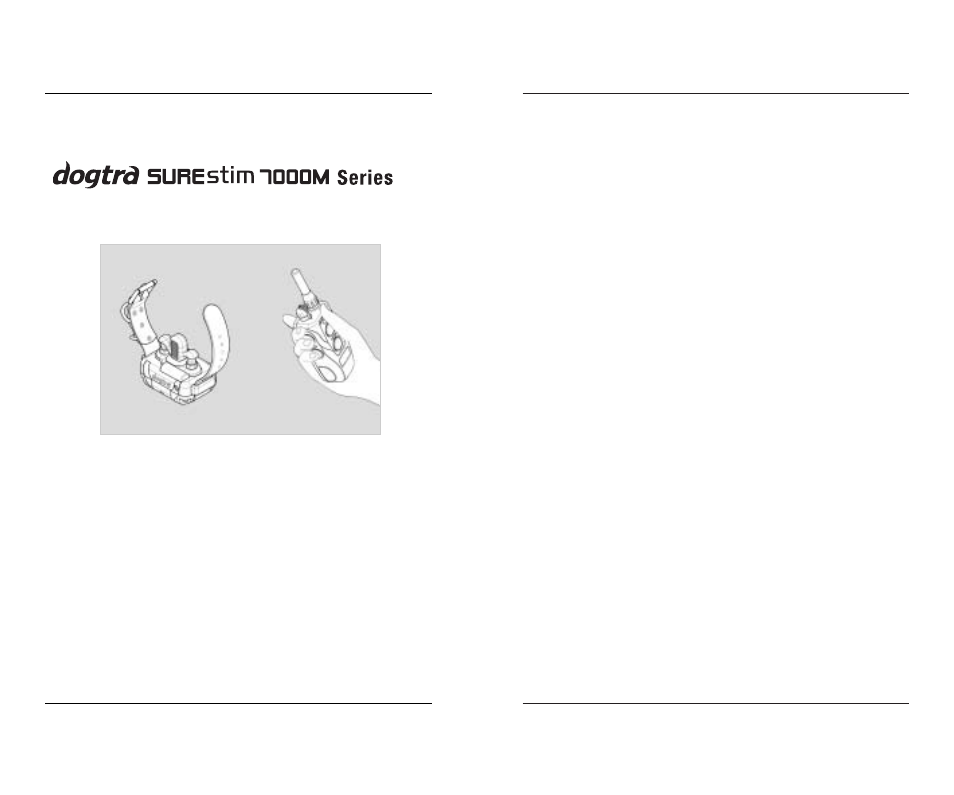

1. To activate the receiver/collar, place the
red dot on the back of the transmitter to the
red dot on the collar/receiver. Hold the two
red dots together for a moment until the
LED light on the receiver/collar comes on.
The indicator light will come on for a
moment then blink once every 4 seconds,
showing that the collar is ready to use. (If
the indicator light is red, or if there is only
1 bar showing on the battery icon on the
LCD transmitter screen, the unit needs to
be charged.)
TESTING YOUR
COLLAR
25
TESTING
2. Place the test light, included in the package
contents, on the contact points as shown in the
diagram.
3. Turn the transmitter on by pressing the blue
button on the right side of the transmitter until
the LCD screen illuminates. The LCD screen
shows the amount of battery life remaining and
the LED blinks once every 4 seconds.
4. Watch the test light as you push the “Nick”
button on the transmitter. It should light for just
a moment. The higher the intensity, the brighter
the test light will be.
5. Watch the test light as you push the “Constant”
button on the transmitter. It should light for as
long as the button is pressed. However, as a
safety feature, the collar/receiver will
automatically stop stimulation if the constant
button is depressed for 12 seconds or longer.
6. Turn the Rheostat Intensity Dial on the
transmitter clockwise and then
counterclockwise. The test light should glow
brighter with higher levels of stimulation and
dimmer with lower levels. When you change
the intensity dial, the number on the LCD
screen will change as well.
