18
BATTERY CHARGER
19
TESTING
The battery charger and splitter cables allow you to
charge both the transmitter and receiver/collar at the
same time. The battery charger is designed for a 120-
volt wall outlet. (European 230-volt AC chargers and
12-volt car chargers for Ni-MH batteries are also
available)

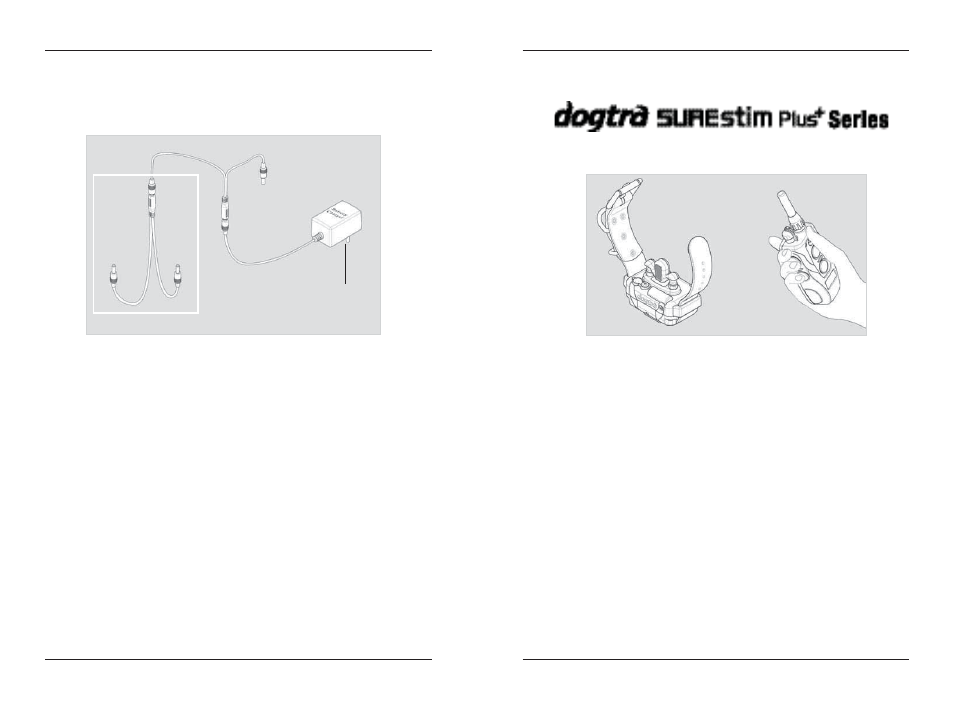

To use the battery charger Two-dog system combine
two sets of battery charging splitter cables as shown.
This enables you to charge the transmitter and both
receiver/collars at the same time.
BATTERY CHARGER
Charging Cable
120 volt
Charger
Wall Outlet
Two-dog system
1. To activate the receiver/collar, place the red dot on the
back of the transmitter to the red dot on the
receiver/collar. Hold the two red dots together until the
LED indicator light on the receiver/collar comes on.
The indicator light will come on for a moment then
blink once every 4 seconds, showing that the collar is
ready to use. (If the indicator light is red, or if there is
only 1 bar showing on the battery icon on the LCD
transmitter screen, the unit needs to be charged.)
2. Place the test light, included in the package contents,
on the contact points as shown in the diagram.
3. Turn the transmitter on by pressing the blue button on
the right side of the transmitter until the LCD screen
TESTING YOUR
COLLAR
