By pressing
“Activate” the thermal camera is powered up and the video signal is sent to the
monitor. All camera settings will now be accessible, see description below.
A second press on the same button turns the camera off.

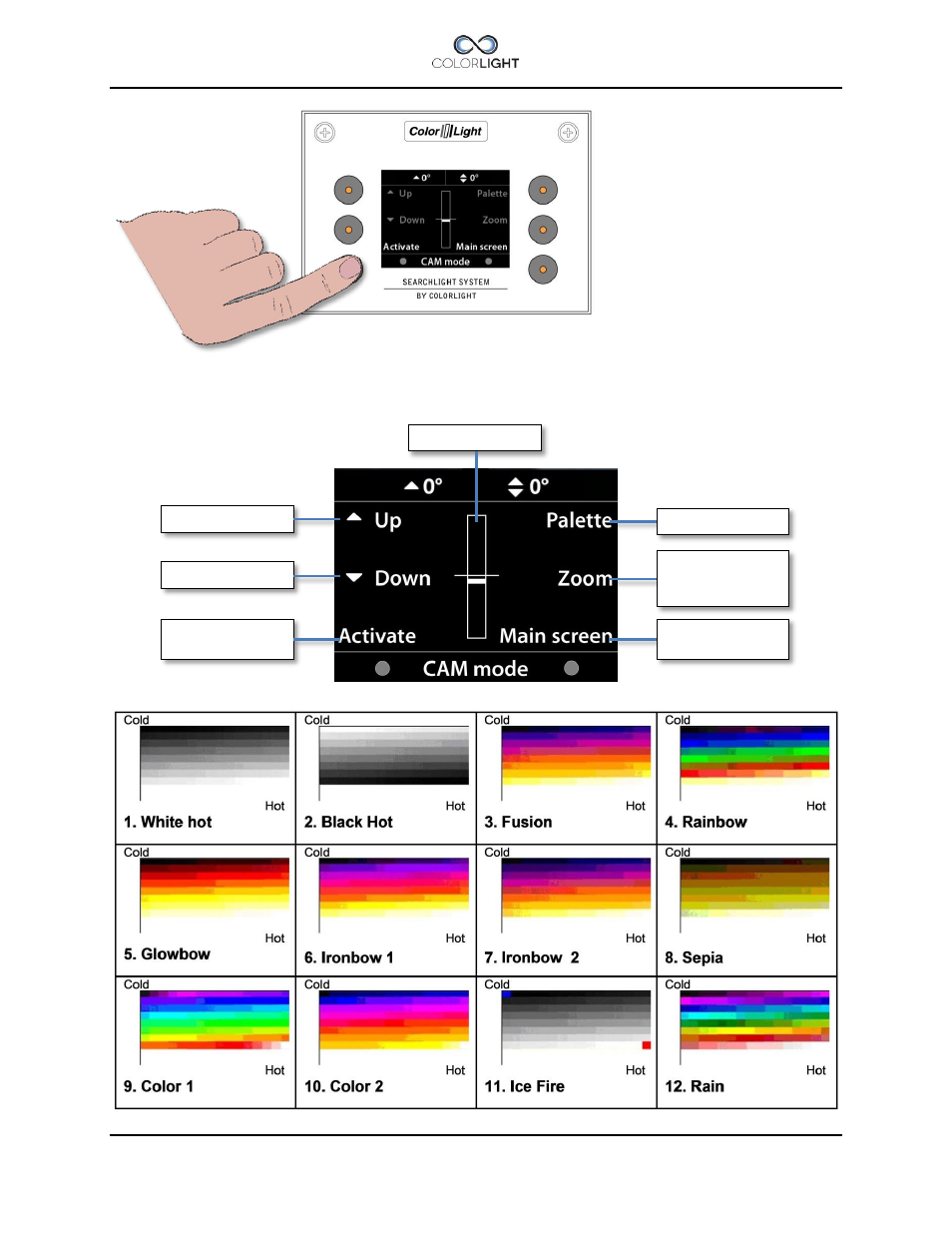

Figure 1 Palette. (Image source FLIR
®
)
Tilt camera up
Tilt camera down
Activate and
deactivate camera
See Figure 1 below
Zoom options:
X2
X4
Return to indicator
screen
Tilt indicator
