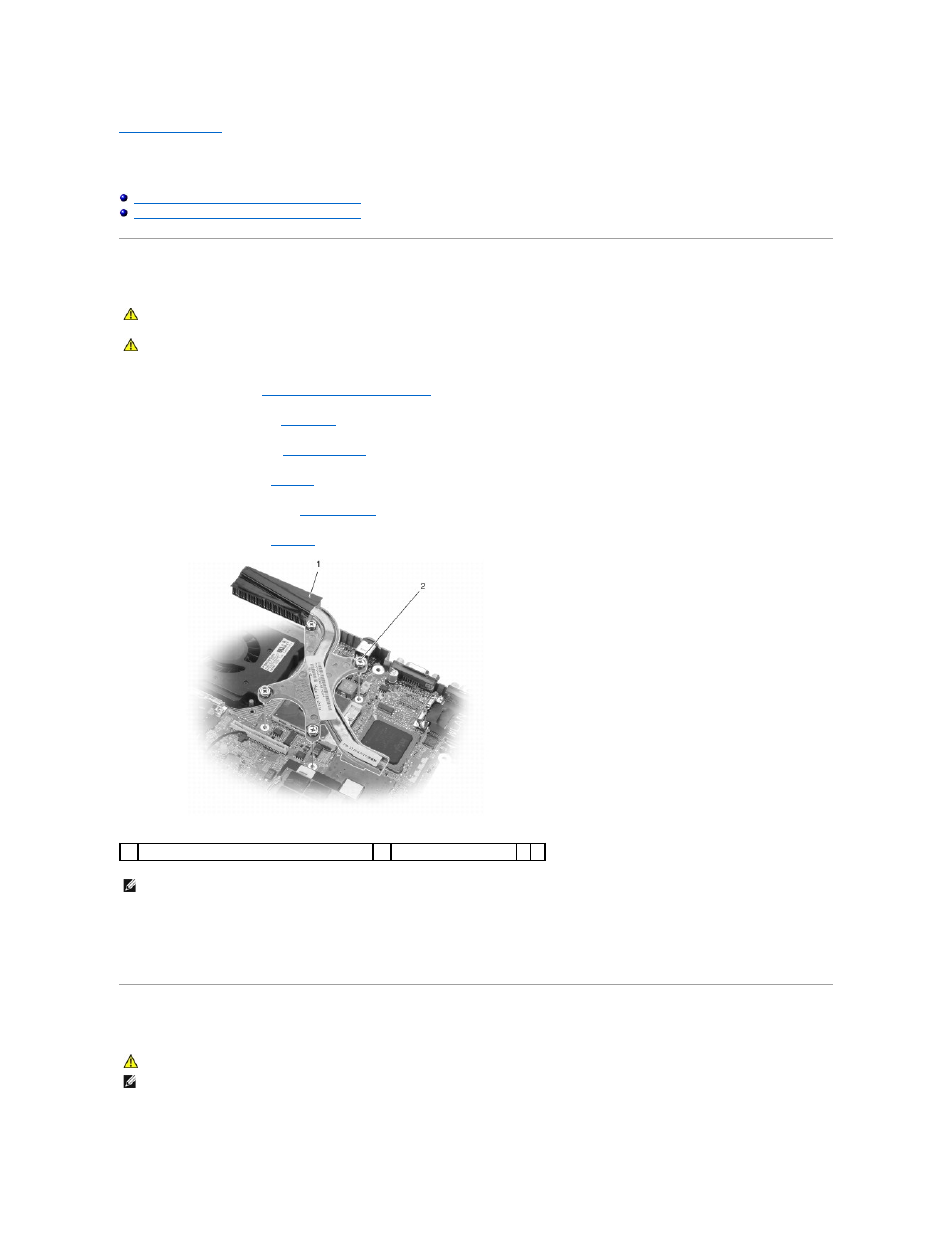

Processor Thermal-Cooling Assembly
Dell™ Latitude™ D620 Service Manual
Removing the Processor Thermal-Cooling Assembly
Replacing the Processor Thermal-Cooling Assembly
Removing the Processor Thermal-Cooling Assembly
1. Follow the instructions in Before Working Inside Your Computer .
2. Remove the hinge cover (see Hinge Cover ).
3. Remove the optical drive (see Media Bay Devices ).
4. Remove the keyboard (see Keyboard ).
5. Remove the coin-cell battery (see Coin-Cell Battery ).
6. Remove the palm rest (see Palm Rest ).
7. Loosen in consecutive order the four captive screws, labeled "1" through "4," on the assembly.
8. Lift the assembly out of the computer.
Replacing the Processor Thermal-Cooling Assembly
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1 processor thermal-cooling assembly 2 captive screws (4)
NOTE: The processor thermal-cooling assembly may differ in appearance, depending on your computer configuration. However, the removal procedure is
the same for all assemblies.
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
NOTE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an unpainted metal surface.
