1 • Overview 14
Rear Panel Overview
1
2
3
4

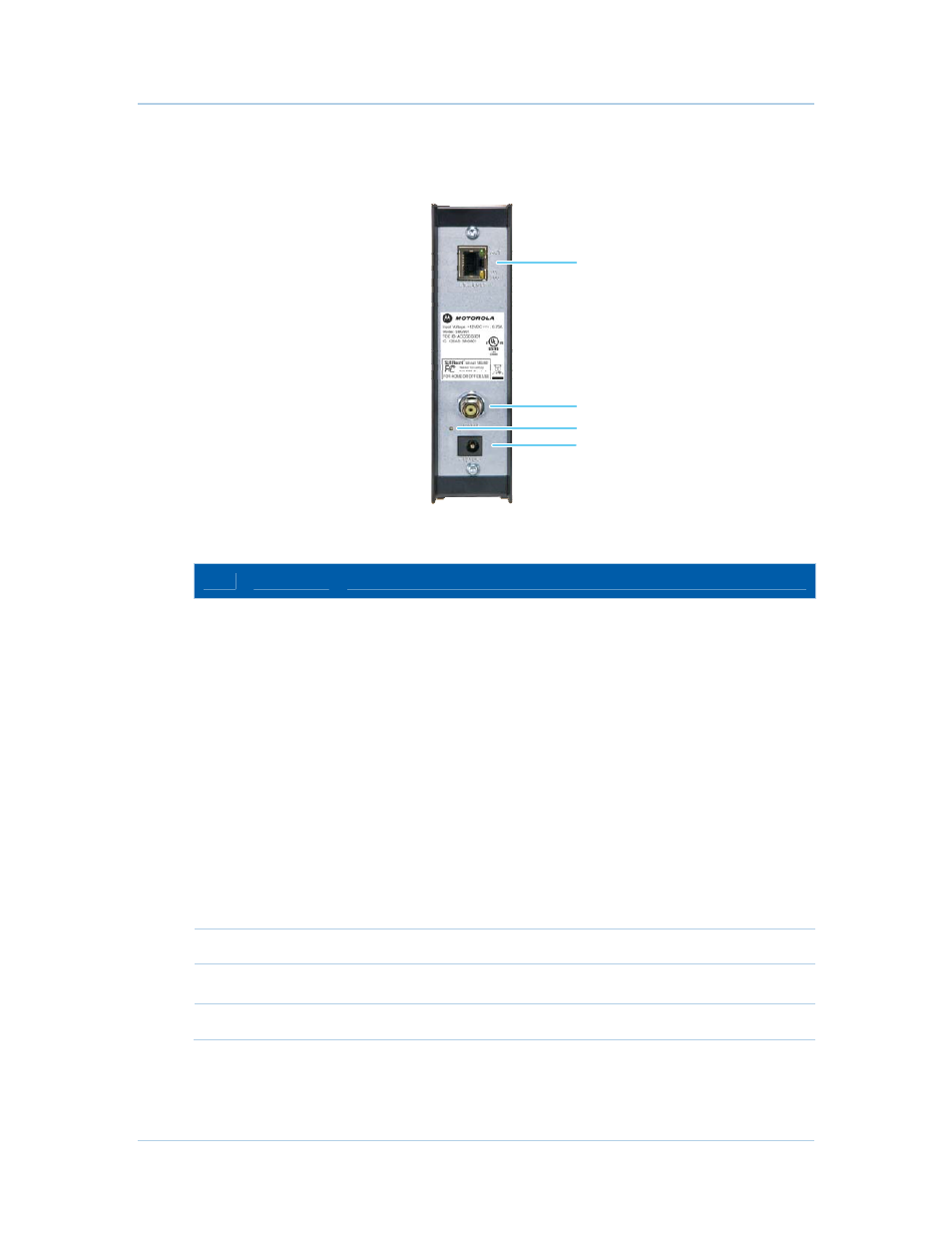

The SBG901 rear panel contains the following cabling port and connectors:
Key Item Description
1 ETHERNET Connects to an Ethernet-equipped computer, hub, or switch using an
RJ-45 cable connection.
Activity LED — Green LED defines the activity of the Ethernet
connector.
When LED is ON, this indicates that there is no data traffic and a
connection is stabilized.
When LED is FLASHING, this indicates that there is data being
transmitted upstream or downstream.
When LED is OFF, this indicates that the unit is not powered or there is
no Ethernet connection.
10/100 LED — Indicates the connection data rate.
When Green LED is ON, this indicates a 100Base-T data connection.
When Green LED is OFF and Activity LED is ON, this indicates a
10Base-T data connection.
2 CABLE Connects the SBG901 to a cable wall outlet.
3 RESET Resets the cable modem which may take from five to 30 minutes.
4 +12VDC Provides power to the cable modem.
