UDM 35/40 PANEL METER USER MANUAL
6

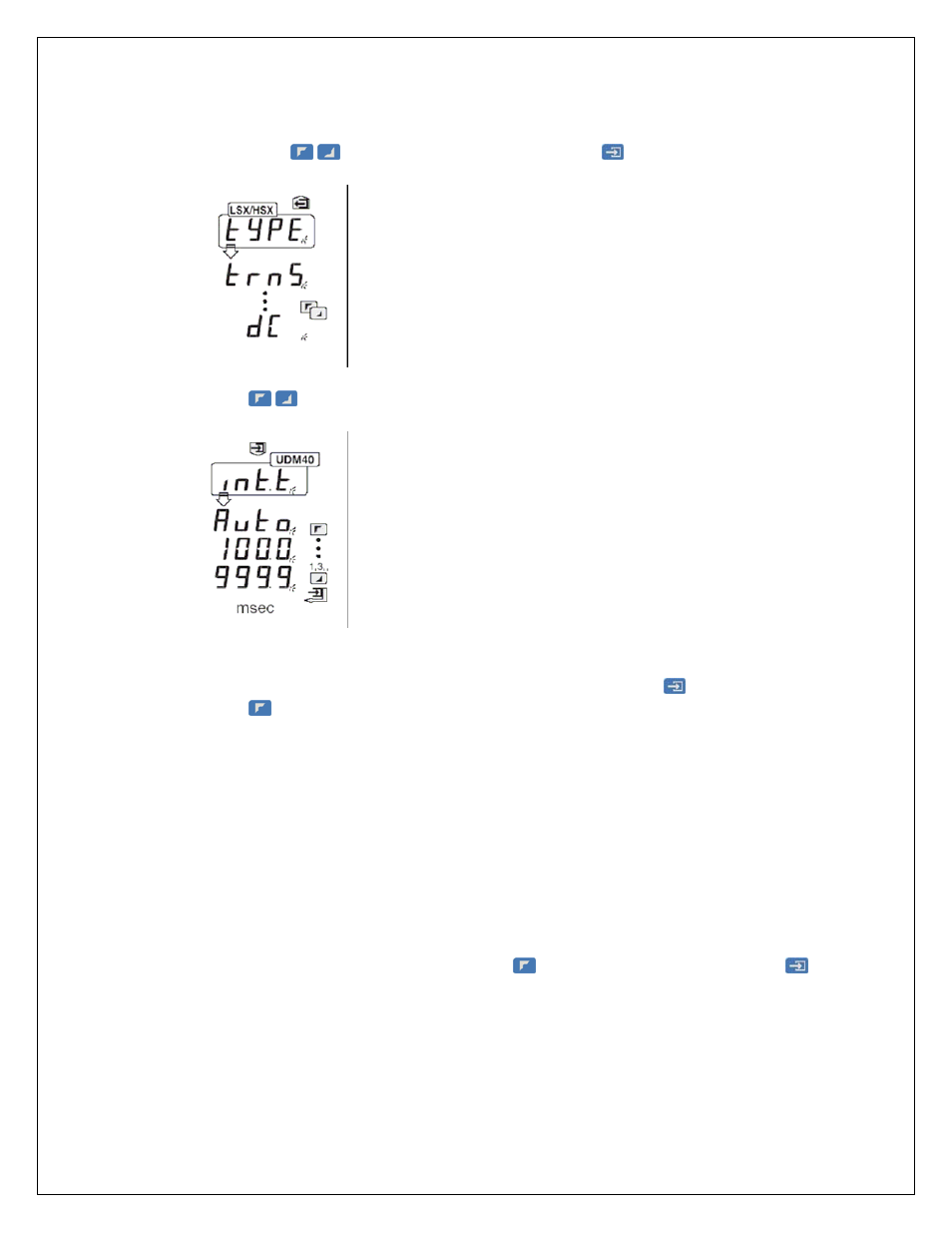

LSX and HSX input modules offer True RMS (trnS) or DC measurement
(dC). Use
keys to make selection. Press .
Press
keys to select Input signal integration time value (intt).
If all zeros “0000” is selected, “Auto” will be displayed and the value will be
automatically calculated from 100ms – 999.9 ms. Press
to confirm.
Press to advance to next program step sequence.
Cold Junction Compensation (CJC) Temperature Compensation
Available only when TRX input module is installed.
TRX module with Thermocouple (tC) requires configuration of Cold
Junction Compensation (CJC). Press
key to advance to CJC Then
to enter.
