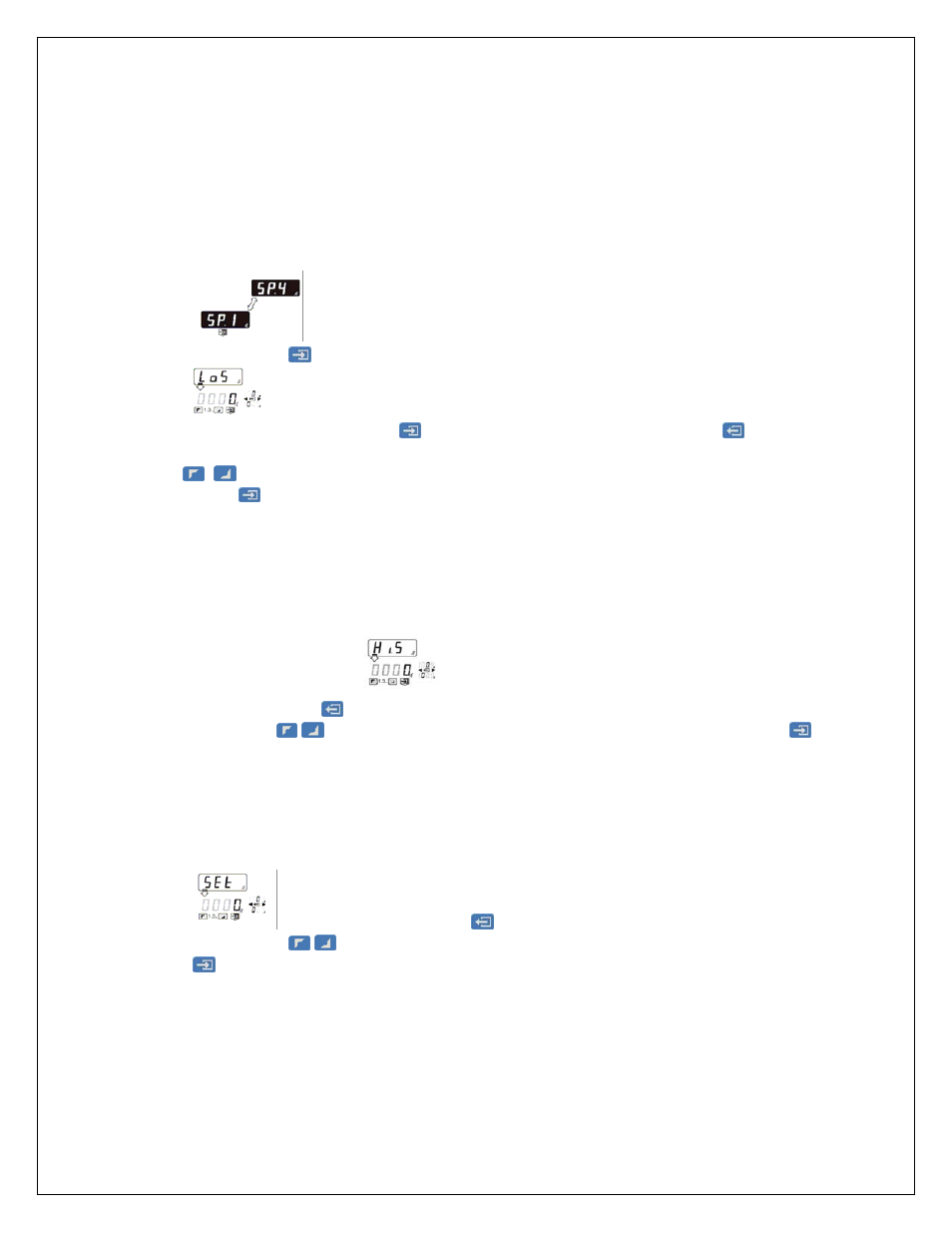

Navigating through this program sequence
Minimum Set-Point
The lowest value, below which, it is not possible to program a set-point.
When is first displayed, you have reached the Set-point program
sequence. Press to enter program. The first parameter, Minimum Set-point
Limit, will be displayed. To skip this step and advance to the next
parameter, press the enter key . Otherwise, press the escape key to
select the proper numerical position to enter a value. Press the up/down arrow
keys
to select the numerical value for each position. When completed,
press enter to confirm and advance to next programming sequence.
Maximum Set-Point
The highest value, above which, it is not possible to program a set-point.
Maximum Set-Point Limit . Using the same procedure as above,
press the escape key to toggle to the appropriate position. Then use the
up/down arrows to select the appropriate value for each position. Press
to confirm your choice and advance to the next programming step.
Set-Point
The actual value that must be reached to trigger an output.
When is displayed, press the key to toggle to the desired numerical
position. Use the keys to select the appropriate value for each position.
Press to confirm and advance to the next parameter in the program
sequence.
