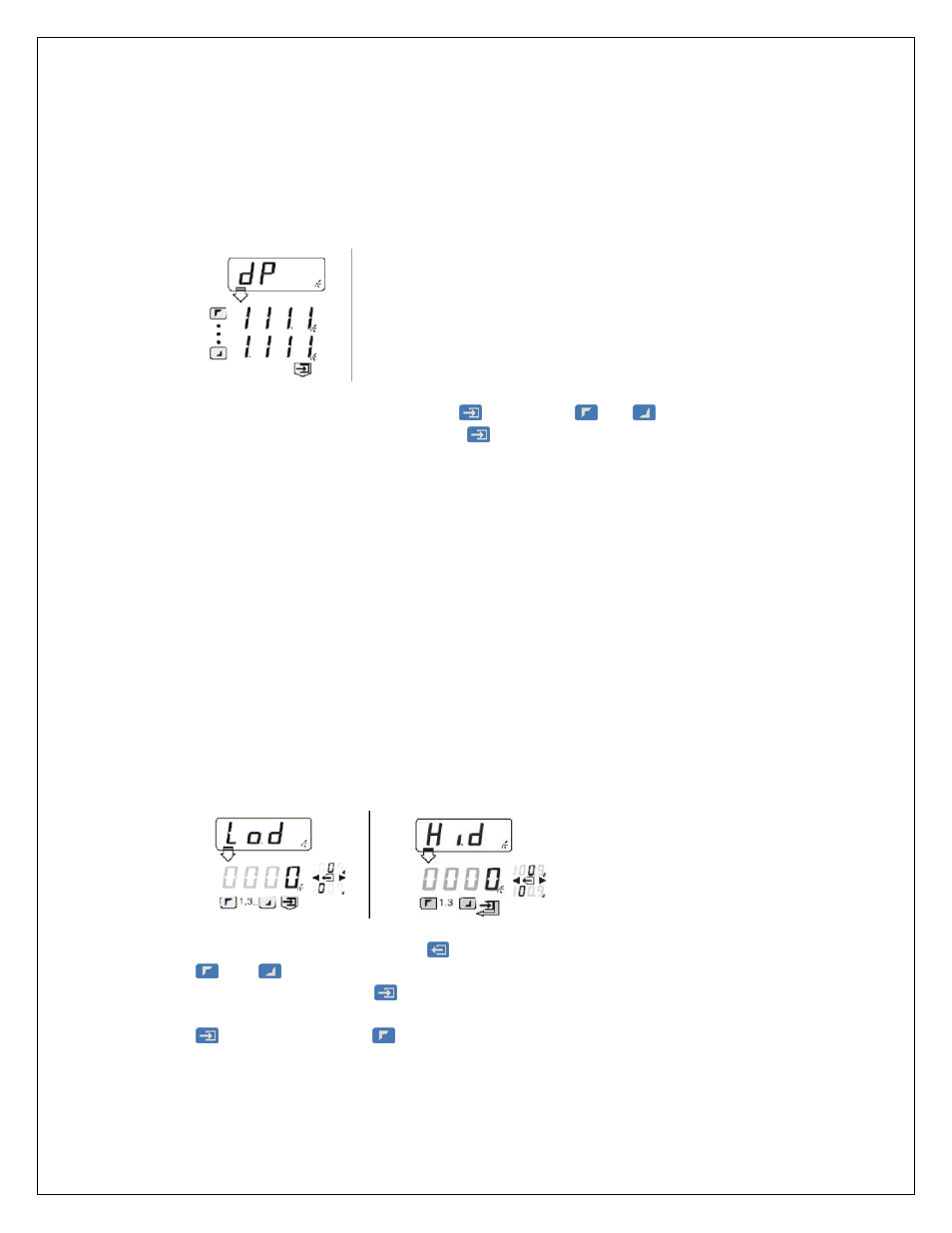

Decimal Point Position (dP)
The decimal point position is relative to the Display Value, which will be
discussed next.
When “dP” is displayed, press .
Using the and keys, select the
decimal point position and press to confirm and advance to next step,
“Lod” and “Hid”, the display span parameters.
Display Span (Lod and Hid)
Allows the user to define the actual display span (in engineering units)
corresponding to the previously defined electrical input range (HiE and
LoE). The “Lod” value represents the minimum displayed value; “Hid”
represents the maximum displayed value.
When “Lod” appears, press
key to toggle to proper digit. Use the
and keys to select desired value. Repeat procedure until all digits
have been set, press to confirm and advance to the next step, “Hid”.
Repeat the same procedure to select and confirm the “Hid” values. Press
to confirm. Press to advance to the next program step sequence.
