S1A0071 Audio Processor for Class-D Power AMP
Digital & Analog Co., Ltd. (Rev. 1.0) -4-

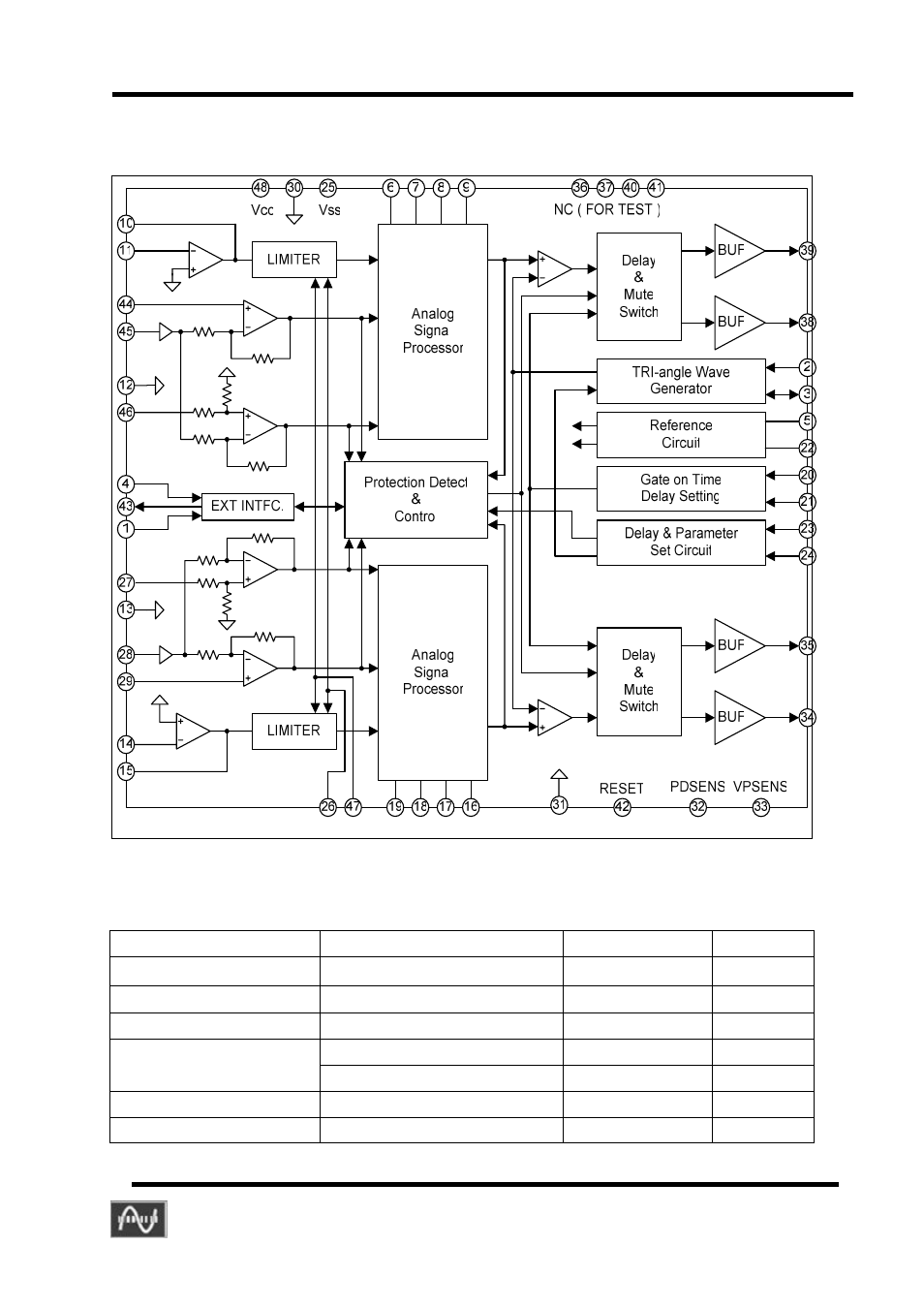

2. BLOCK DIAGRAM
3 ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Units
V
CC
, V
SS Driver supply voltage
± 7.5
V
Tstg Storage Temperature –55 to 150
°C
Topr Operating Temperature –25 to 75
°C
Electro-Static Discharge Human Body Model, All pin 2000 V
Machine Model, All pin 200 V
Electric Over Stress All pin 16 V
Pd Power Dissipation 1000 mW
