S1A0071 Audio Processor for Class-D Power AMP
Digital & Analog Co., Ltd. (Rev. 1.0) -11-

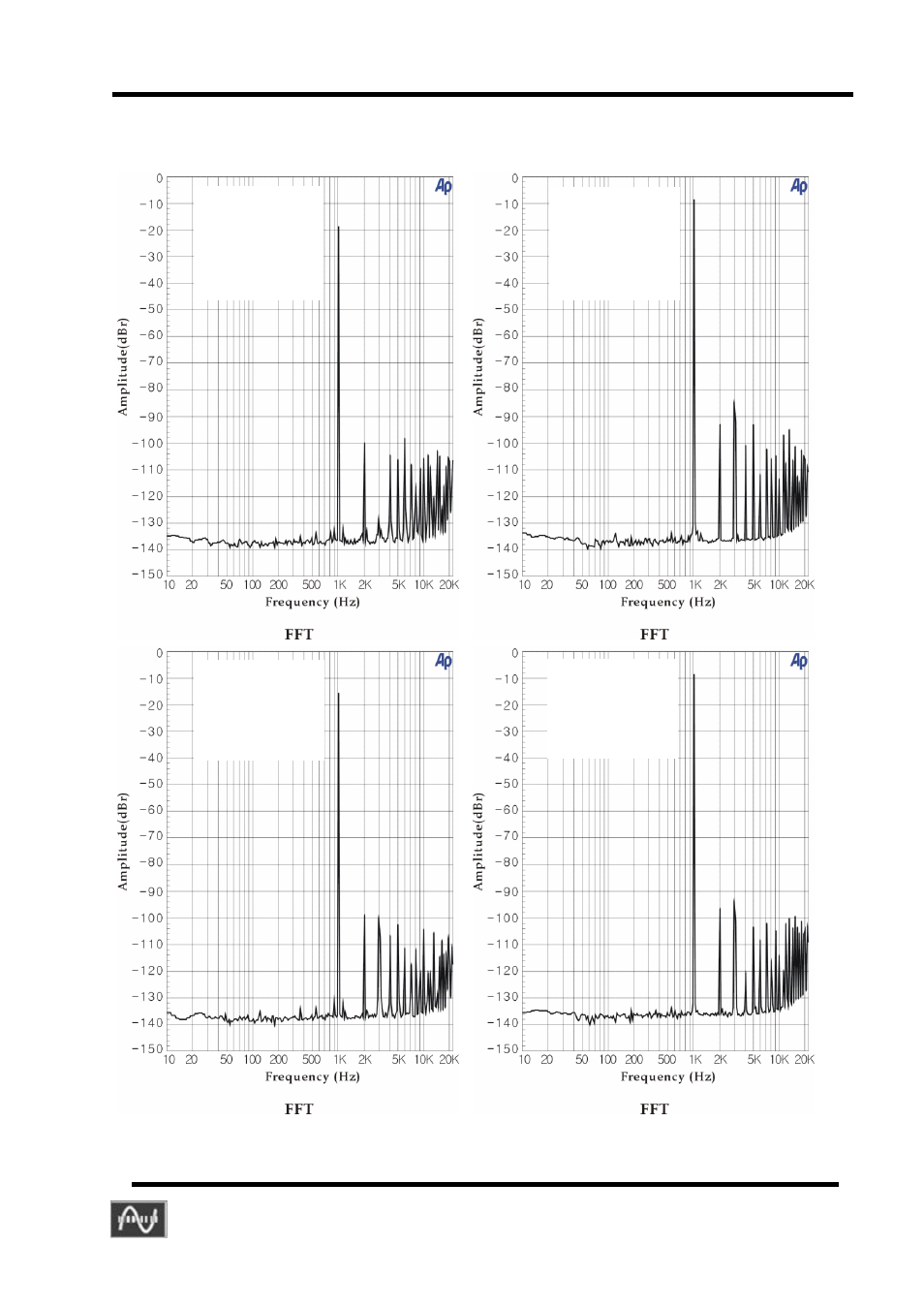

Typical Performance
±VCCP = ±25V
±Vcc = ±5V
Po
= 1W
f = 1kHz
BW = 22Hz ~
22kHz
0dBr = 17V
R
L
= 4 Ω
±VCCP = ±25V
±Vcc = ±5V
Po
= 1W
f = 1kHz
BW = 22Hz~ 22kHz
0dBr = 17V
R
L
= 8 Ω
±VCCP = ±25V
±Vcc = ±5V
Po
= 5W
f = 1kHz
BW = 22Hz~ 22kHz
0dBr = 17V
R
L
= 8
Ω
±VCCP = ±25V
±Vcc = ±5V
Po
= 10W
f = 1kHz
BW = 22Hz ~
22kHz
0dBr = 17V
R
L
= 4 Ω
