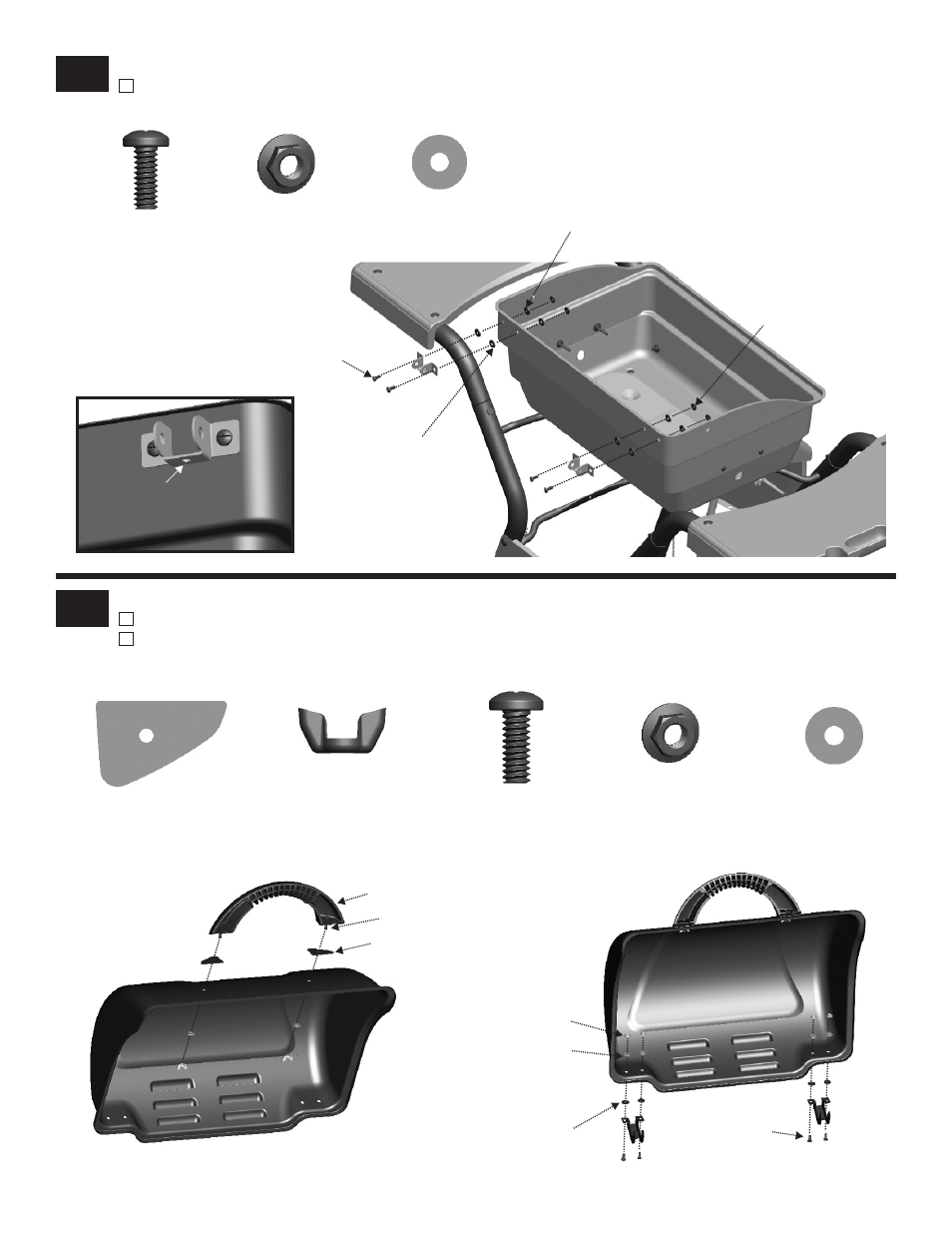

9 9 Lower Hinges
Attach lower lid hinges to back of firebox using two #10-24x1/2’’ machine screws, #10-24 flange nuts and four 5x15
fiber washers per hinge. The center flat portion of the hinge should be at the bottom (see insert below).
#10-24x1/2’’
Machine Screw
Qty.4
#10-24
Flange Nut
Qty.4
5x15
Fiber Washer
Qty.8
Center flat portion
of hinge on bottom
#10-24 Flange Nut
5x15 Fiber Washer
#10-24x1/2’’
Machine Screw
5x15
Fiber Washer
Handleand Upper Hinges
Attach handle and two insulation washers to front of lid. Secure with two 5x15 fiber washers and #10-24 wing nuts (A).
Attach upper lid hinges to back of lid using #10-24x1/2’’ machine screws, 5x15 fiber washers and #10-24 flange nuts
per hinge. Hinges should curve downward when properly installed (B). 10
Insulation Washer
Qty.2
#10-24
Wing Nut
Qty.2
#10-24x1/2’’
Machine Screw
Qty.4
#10-24
Flange Nut
Qty.4
5x15
Fiber Washer
Qty.10
A
B
#10-24 Flange Nut
5x15 Fiber Washer
5x15 Fiber Washer #10-24x1/2’’
Machine Screw
Handle
Handle Bolt
Insulation Washer
