Software Setup—BaseManager
1. When the installation is complete, run the BaseManager
application by clicking the desktop shortcut or the menu item
under the BaseManager folder in Programs.
2. Configure the Site settings and add BaseStation controllers as
needed for normal BaseManager operation. Verify that the
BaseManager application can communicate with all 3200
controllers.

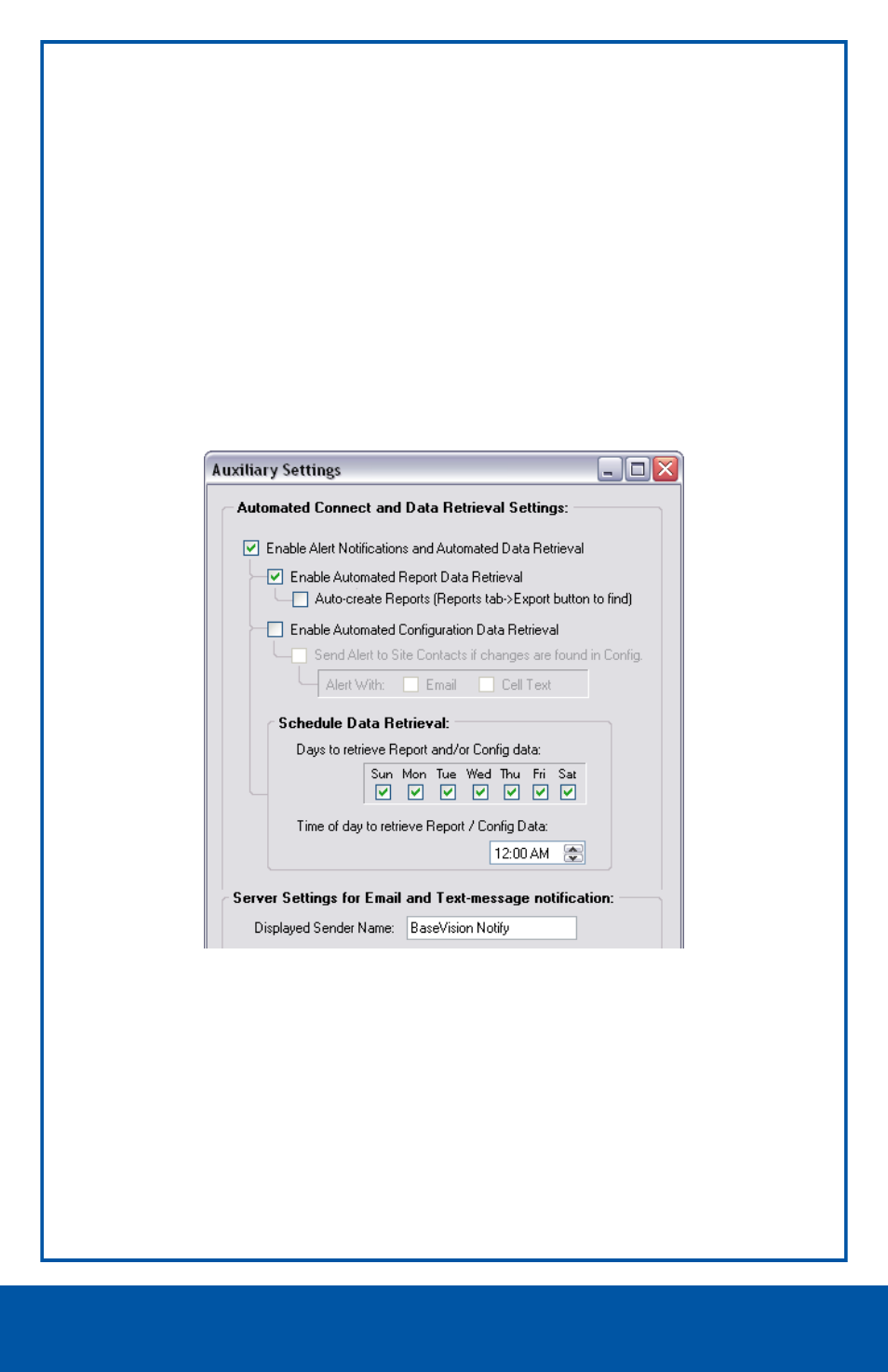

3. With BaseManager running, click the Advanced button at the top
of the screen to open the Auxiliary Settings window (see below).
4. For the basic setup, select the checkboxes as indicated in the
illustration above—additional settings are optional.
5. Click the System Functions button at the bottom of the window.
6. Click the Force-Start Alerts Checker button.
7. Click Close, and then click OK to close the two windows.
