BL-FLOWSTN-P FlowStation Module
Installation Guide
1-866-294-5847
Rev 9.5.2014
www.baselinesystems.com
Identify the attachment points
and connectors inside the
pedestal as shown in the
illustration.
2. Secure the
mounting plate
with the three
black screws.
3. Route the mini USB cable from the
top of the Ethernet switch around
the top of the BaseStation 3200
control board and plug the end of
the cable into one of the mini USB
ports on the control board.
IMPORTANT! Before proceeding,
verify that the power is off. The
LEDs on the BaseStation 3200
faceplate should not be
illuminated.

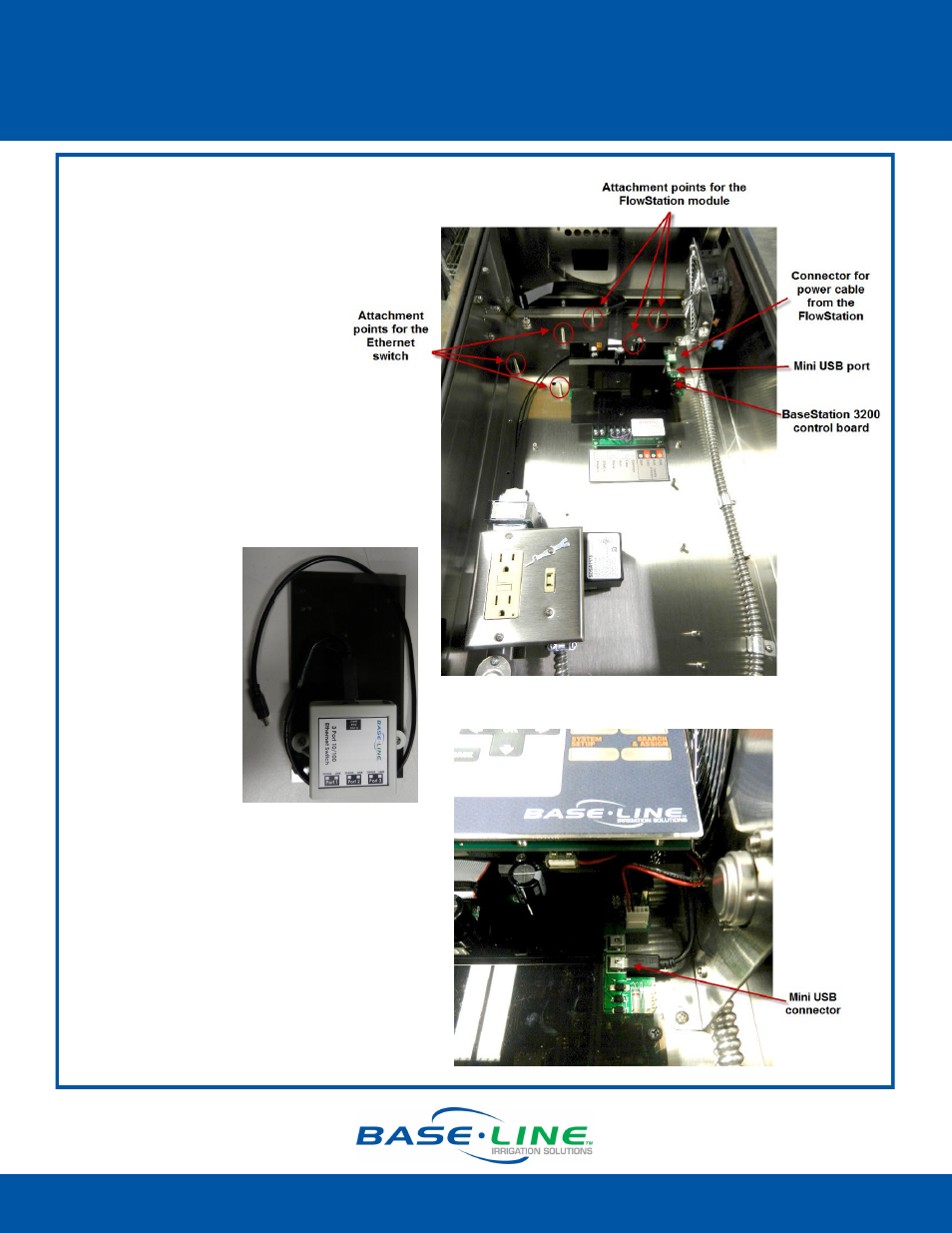

Identifying the Attachment Points inside the Pedestal
Attaching the Ethernet Switch
1. Align the holes
in the Ethernet
switch mounting
plate with the
attachment
points shown in
the illustration.
