(Data Industrial Flow and Similar Two-Wire Sensors)

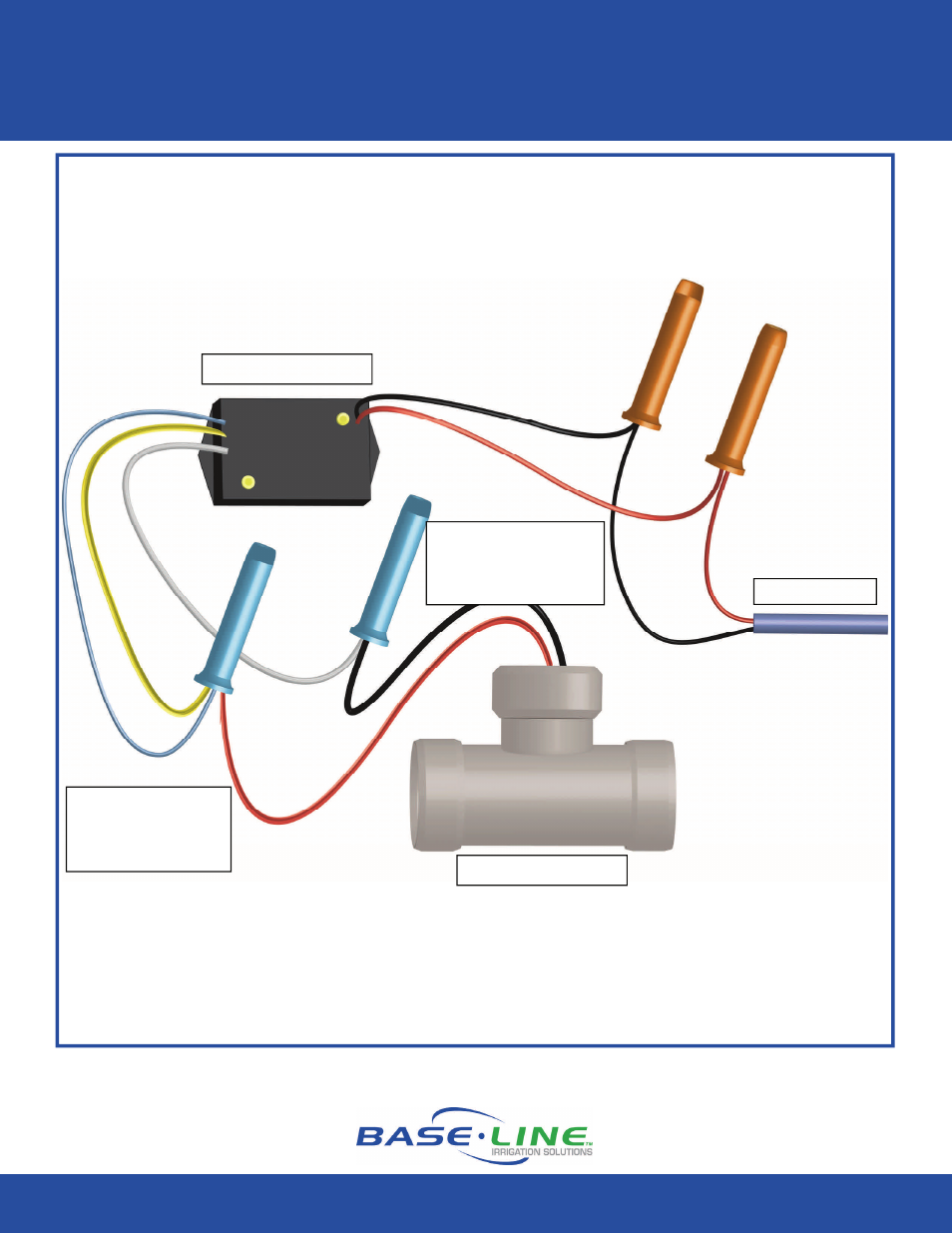

Diagram A: Flow Devices with Two Wires
BL‐5308 Flow biCoder
Two‐Wire
Connect the white wire
with the black stripe to
the black wire
Connect the blue and
yellow wires to the red
wire
Two Wire Flow Sensor
BL‐5308 Flow biCoder Wire Key
Blue wire = power
Yellow wire = sensor
White wire with black stripe = common
