Baseline X Cabinet
Wall Mount Enclosure
Installation Guide
1-866-294-5847
Rev 11.1.2012
www.baselinesystems.com
Materials and Tools
Hardware (wall anchors, screws,
etc.) for mounting the enclosure
to the wall
Tools as needed for wall
mounting hardware (drill,
screwdriver, pliers, marker, tape
measure, level, etc.)
Tools as needed for working with
conduit (cement, cutter, etc.)
Electrical power connection
hardware (½” conduit, wire, wire
nuts, etc.) and tools as needed
Enclosure Mounting Instructions
1. Mount the enclosure on a solid object/foundation taking into consideration wire and conduit
paths to electrical power, and the distance from your wire field.
IMPORTANT! Keep the enclosure out of direct sunlight.
2. Hang the enclosure to wall/pole from a #10 or larger screw.
3. Locate the position for the lower hole and secure the enclosure with #8x1 inch or larger screw.

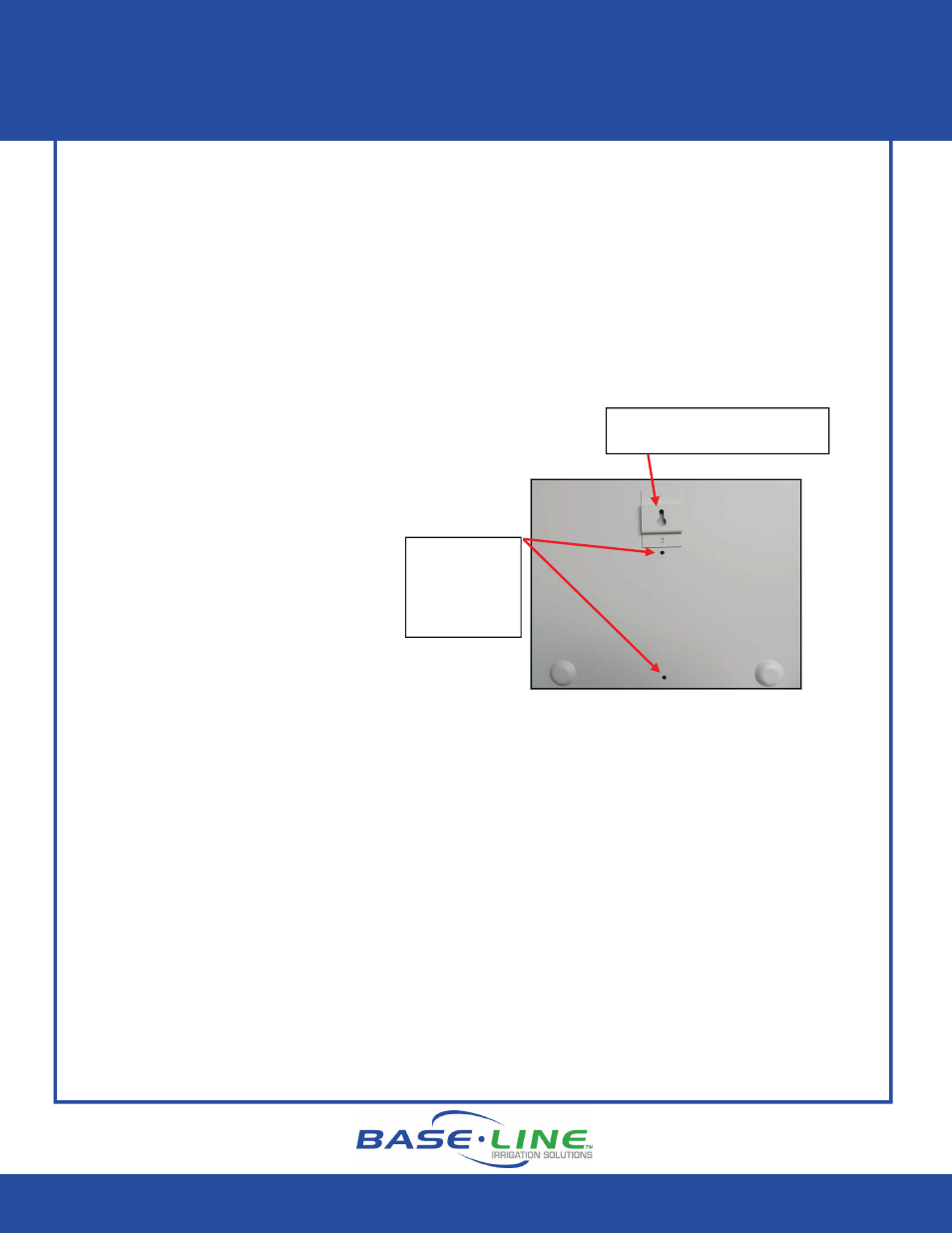

Hang the enclosure to wall/pole
with a #10 or larger screw
Secure the
enclosure with
#8x1 inch or
larger screws
Enclosure Electrical Installation
Note: Baseline recommends that you consult or hire a licensed electrician for these connections.
1. Turn AC power off at the source, and verify that it is off.
2. Run conduit (½” recommended) between the enclosure and the power source.
3. Remove the screw that secures the cover on the wiring compartment, and then remove the
cover.
The electrical installation instructions are continued on the following page...
