Baseline Systems P Pedestal - Manual

Materials and Tools
 Tools as needed for constructing the concrete form (drill, screwdriver, marker, tape measure, level,
etc.)
 Tools as needed for finishing the concrete
 Tools as needed for working with conduit (cutter, etc.)
 2” x 6” lumber for constructing the concrete form
 Concrete
 Hardware for the electrical power and irrigation wiring (½” conduit, wire, wire nuts, etc.) and tools
as needed
 Wrench for connecting the mounting bolts
Baseline P-Series Pedestal Enclosure
Installation Guide
1-866-294-5847
Rev 11.1.2012
www.baselinesystems.com

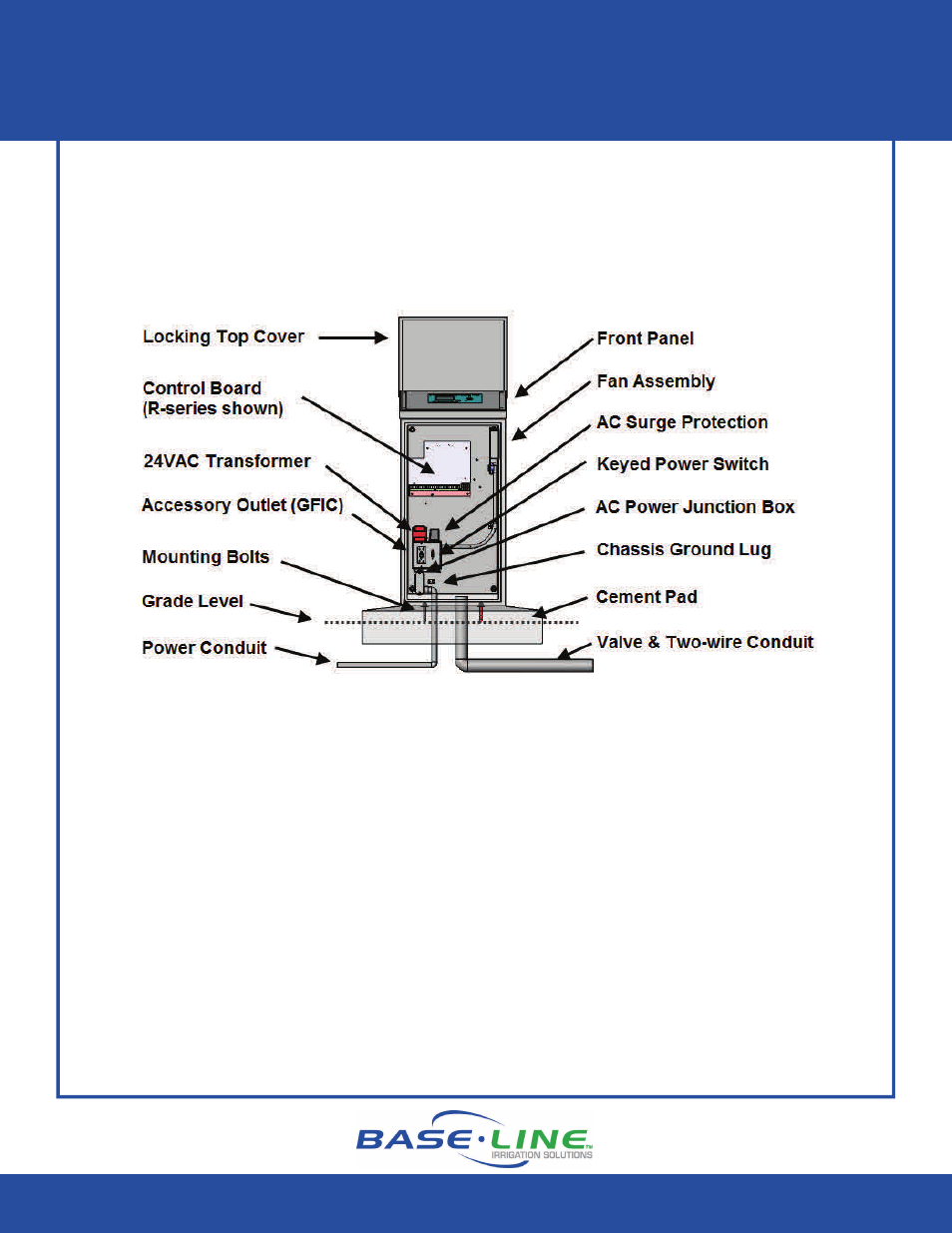

P-Series Pedestal Enclosures
The P-series pedestal units are designed to be mounted on a concrete pad. They come with a
template for locating all mounting bolts, AC power, and two-wire and/or valve wire conduits.
