Baseline P Pedestal Enclosure
Installation Guide
1-866-294-5847
Rev 11.1.2012
www.baselinesystems.com
Mounting the Pedestal to the Concrete Pad
The mounting template is attached to the bottom of the pedestal. For shipping purposes, it is attached
upside down.
1. Remove the template from the bottom of the pedestal by removing the 4 stainless steel bolts,
washers, and nuts that attach it to the bottom of the pedestal.
2. Reattach the 4 stainless steel bolts, washers, and nuts to the template in the exact same direction in
which they were removed.
3. Route the conduits for power and valve wiring to the site for the pedestal. Ensure that the conduits
extend at least 5 inches above grade and fit within the opening on the template.

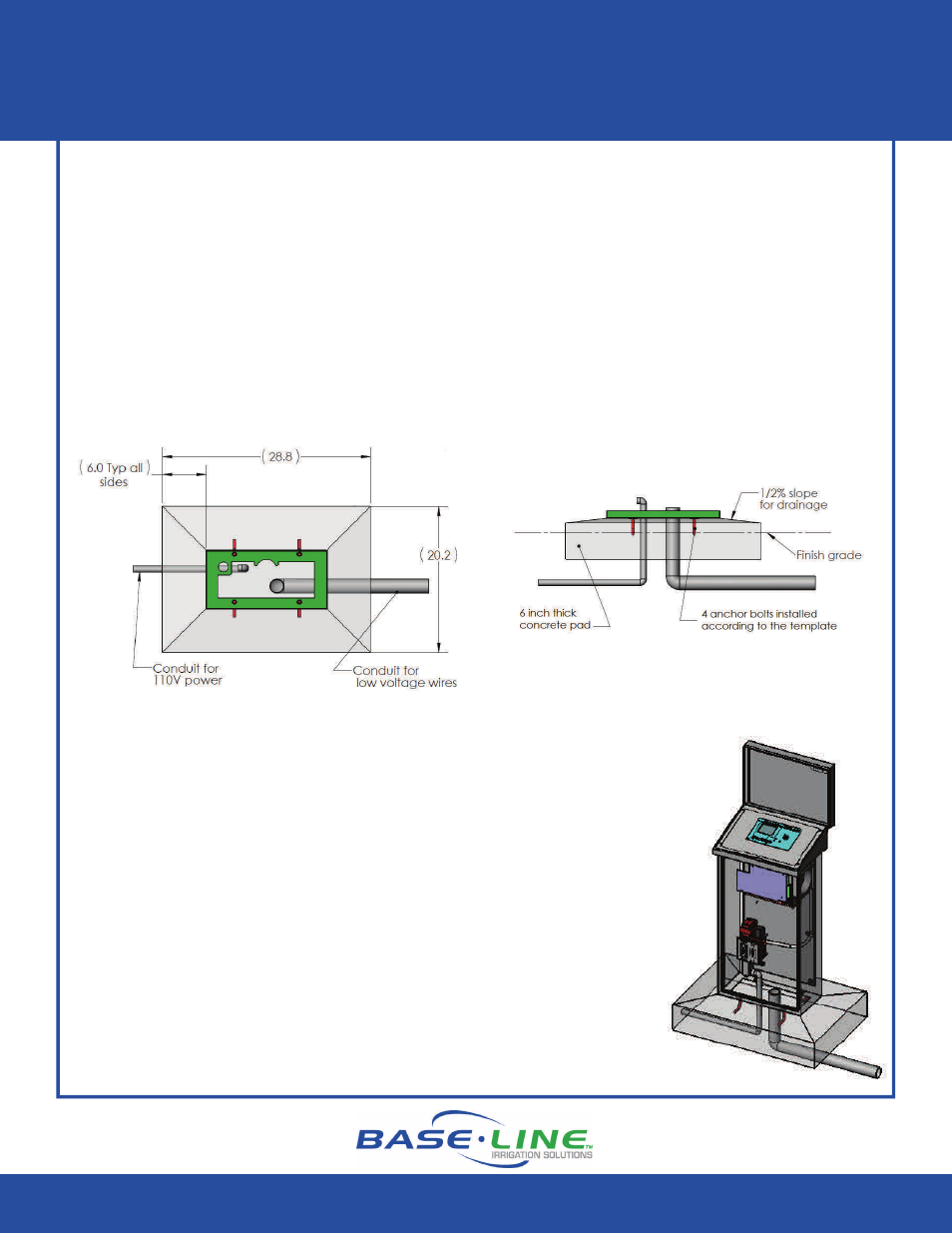

4. Build a form for the concrete pad using the dimensions given in the illustrations below.
5. Pour the concrete, and finish the top with a slope for drainage.
6. While the concrete is still wet, turn the template upside down so the
heads of the bolts are on the bottom.
7. Position the template in the center of the concrete pad, and then push
the stainless steel bolts into the wet concrete until the template touches
the surface of the concrete. The template should form a smooth, flat
surface for the enclosure to bolt onto.
8. After the concrete completely dries, remove the template. Set the
washers and nuts aside.
9. Ensure that the surface of the concrete is clean, flat, and smooth.
10. Position the mounting holes on the bottom of the pedestal onto the
stainless steel bolts, and then use the washers and nuts to secure the
pedestal to the concrete pad.
11. Connect the electrical wiring and the irrigation wiring.
