electrical connections
external connections

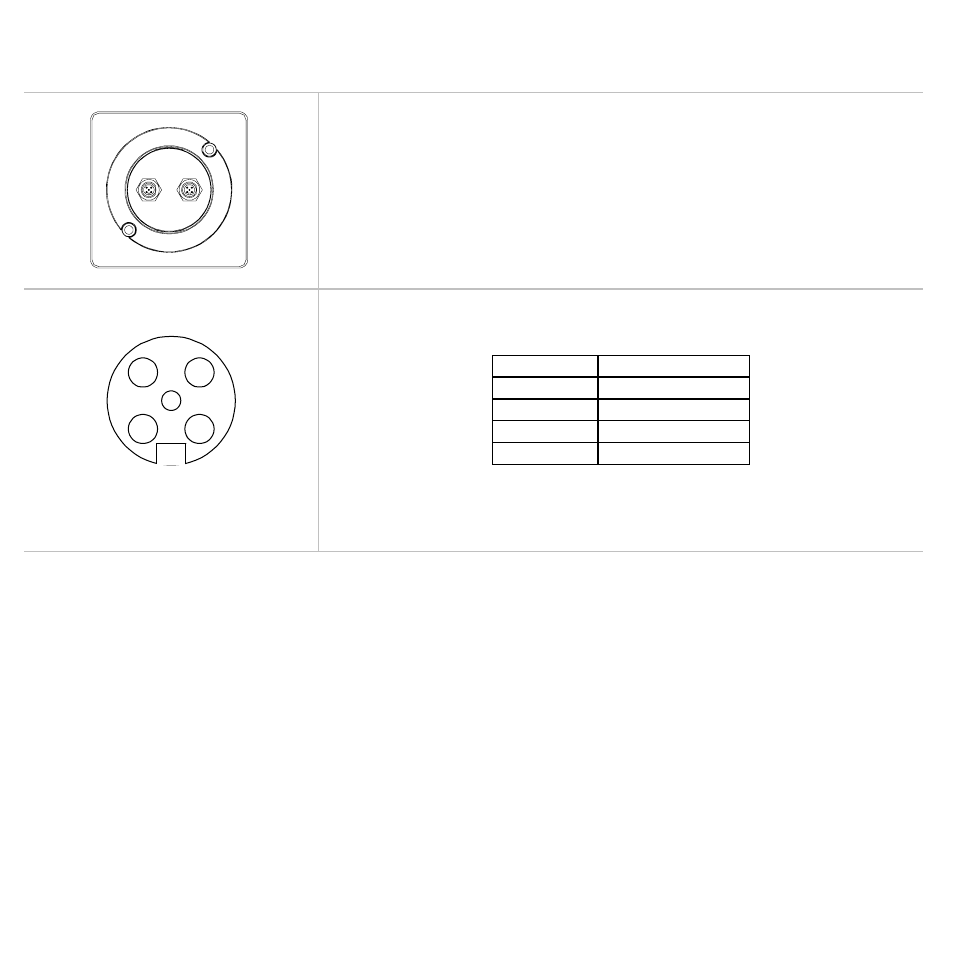

Two FastNet² connectors are provided at the rear of the unit. These
connectors allow connection to the rest of the system for the supply of power
and data.
The table below shows pin functions.
5
2
3
4
1
Front view of
male connector pins
Pin Number Signal
Pin Number Signal
Pin Number Signal
Pin Number Signal
1 12V
2 Busy
3 FastNet²-
4 FastNet²+
5 0V
