The sg05 evc gateway – B&G Triton Display User Manual
Page 15

| 13
Wiring |
IS40/Triton System Installation Manual

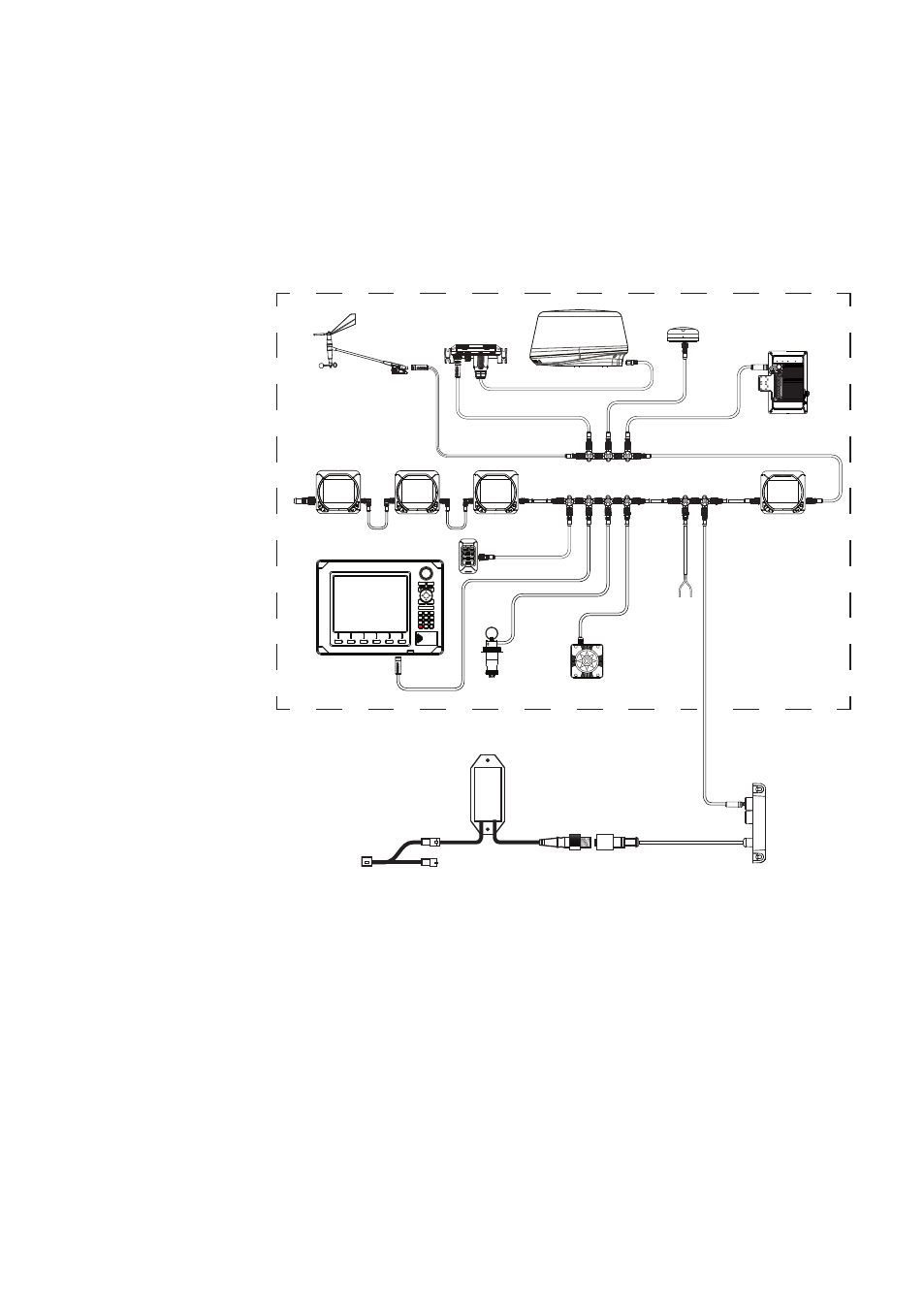

The SG05 EVC gateway
The SG05 is connected to the NMEA 2000 network in place
of Autopilot computer. It connects to a Volvo Gateway for
communication with Volvo’s EVC system.
Note that rudder angle data is sourced from the EVC system and a
seperate rudder angle indicator is not required.
120
LTW
LTW
LTW
LTW
1
4
2
3
1
IS40/Triton system
2
SimNet to Micro-C adapter cable
3
SD05 SimNet - Volvo Gateway
4
Volvo
Gateway (p.no. 000-1-258-001)
