1

Assembly Instructions

Great Plains Mfg., Inc.

© Copyright 1995 Printed 10/23/95

Used with:


Folding No-Till

Update

24’ & 30’ Folding No-Till

20 Series Folding No-Till

General Information

This assembly notice applies to the Folding No-Till Update listed
below:

196-183A 1995 2SNT Supplemental Update

Assembly Instructions

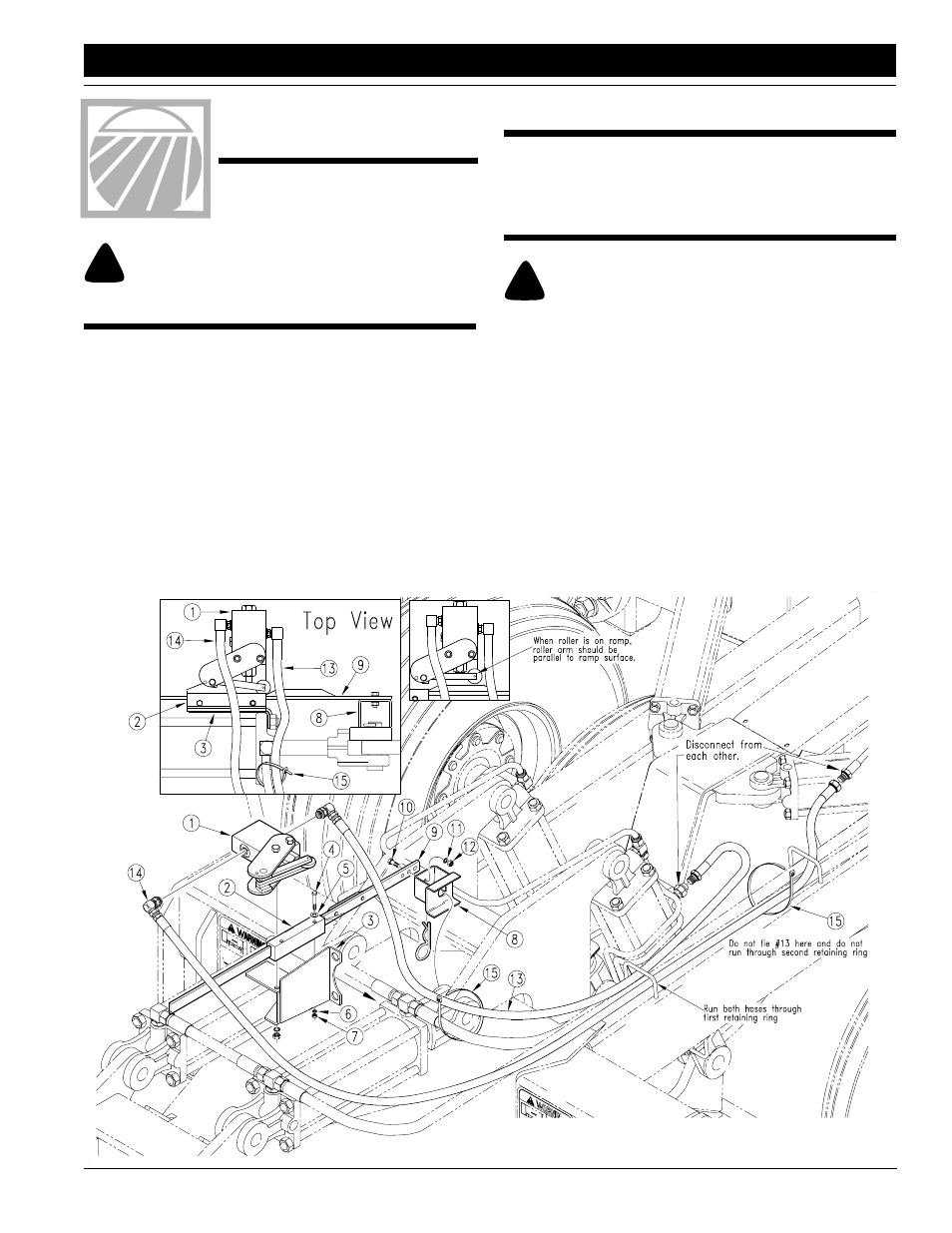

Refer to Figure 1 to install the delay valve (#1), and the guide
block (#2) on the valve mount (#3). Install the guide block with
1/4"-20 x 2 1/2" bolt (#4), 1/4" flat washer (#5), 1/4" lock washer
(#6) and 1/4" nut (#7). Remove the cylinder tie rod nuts for as-
sembly of the delay valve mount (#3). Install the clevis channel
(#8) and the push rod (#9) with 5/16"-18 x 1" bolt (#10), 5/16" lock
washer (#11), and 5/16" nut (#12). Remove the lift cylinder end
hose and install the hydraulic hoses 72" 3/4 MJIC 3/4MORB90
(#13) and 62" 3/4FJIC 3/4MORB90 (#14). Loop hydraulic hose
(#13) through only the first retaining ring and hose (#14) through
both retaining rings on the main frame. Use one cable tie (#15) to
tie the three hoses together between retaining rings and another
to tie the two hoses together near the tee fitting at the cylinder.
Do not tie hose (#13) with the three other hoses.

When you see this symbol, the subsequent instructions
and warnings are serious - follow without exception. Your
life and the lives of others depend on it!

!

Before You Start

This notice contains only instructions on assembling the attach-
ment to the main unit. A detailed Operator’s Manual was supplied
with the main unit when it was purchased. For more specific in-
formation on safety concerns refer to the Operator’s Manual.
Also included in the Operator’s Manual is important information
on operation, adjustment, troubleshooting, and maintenance for
this attachment (some of these sections do not apply to all at-
tachments).

A separate Parts Manual for replacement parts can be pur-
chased from your dealer. Have model and serial numbers handy
when placing an order.

Manual Part Numbers:

• Folding No-Till Drill Operator’s/Parts Manual . . . . .196-126M

• 20 Series Folding No-Till

Operator’s/Parts Manual . . . . . . . . . . . . . . . . . . . .196-164M

Do not attempt any repairs until the drill is unfolded and
lowered to the ground in the field position. Release all
hydraulic fluid pressure in the system!

!

196-184M

Delay Valve Assembly

Figure 1

14778
