2/16/2005 195-192M Rev. A
Great Plains Mfg., Inc.
7 Installation Instructions

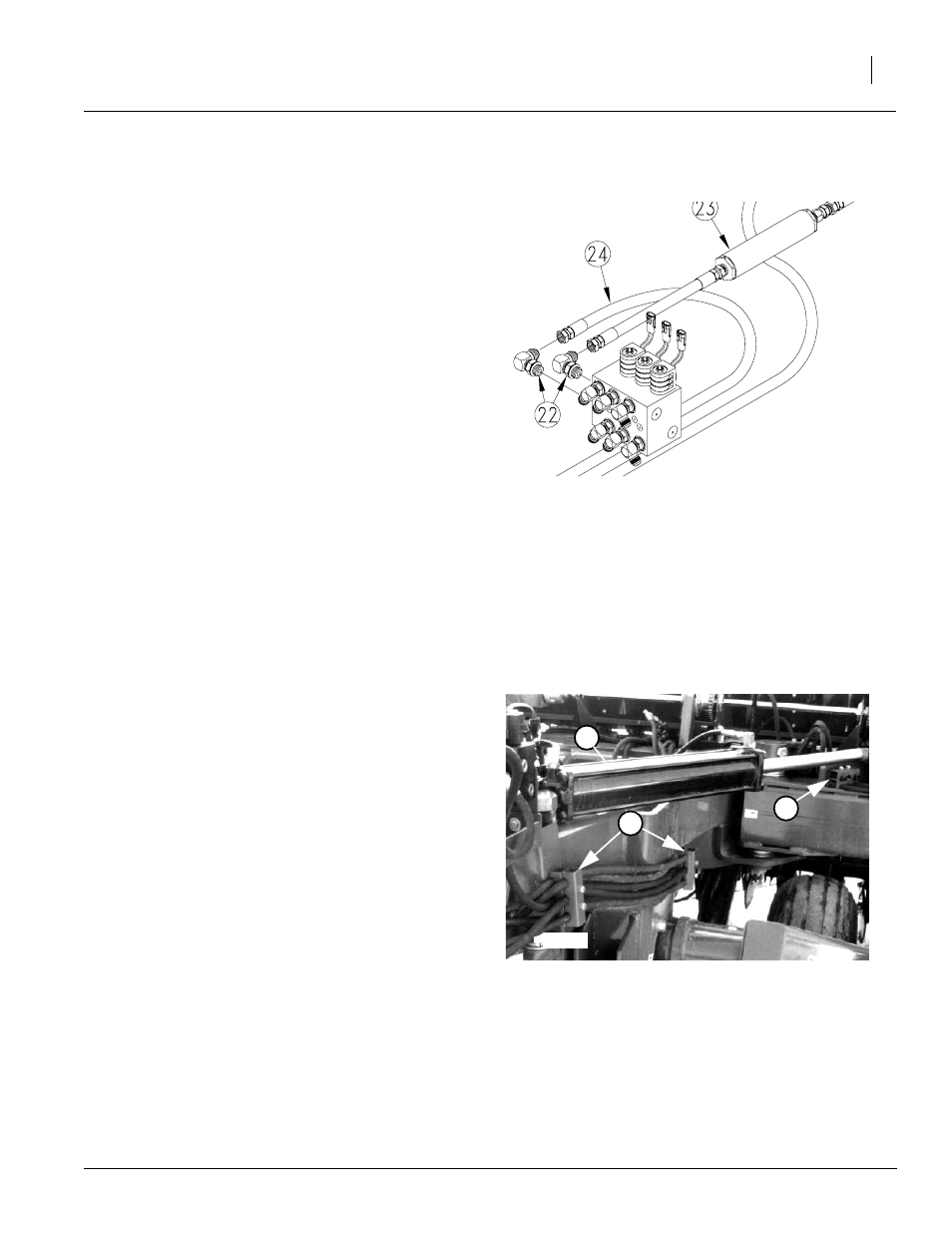

Refer to Figure 9
13. Connect hoses from tractor outlets to the el-
bow fittings (22) in the side of the block as fol-
lows.
On drills with bypass valve at tractor:
Connect hose from filter (23) to V1 (upper el-
bow).
Connect the other hose (24) to V2 (lower el-
bow).
On drills with bypass valve on drill:
Connect hose from filter (23) to V1 (upper el-
bow).
Connect hose from top rear port on bypass
valve to V2 (lower elbow).
Refer to Figure 10
14. Secure hydraulic hoses under hose clamps
on tongue (23) and frame (24).
18985
23
23
24
17101
Figure 9
Figure 10
