195-192M Rev. A 2/16/2005
Great Plains Mfg., Inc.
Point-Row Option 2004- 6

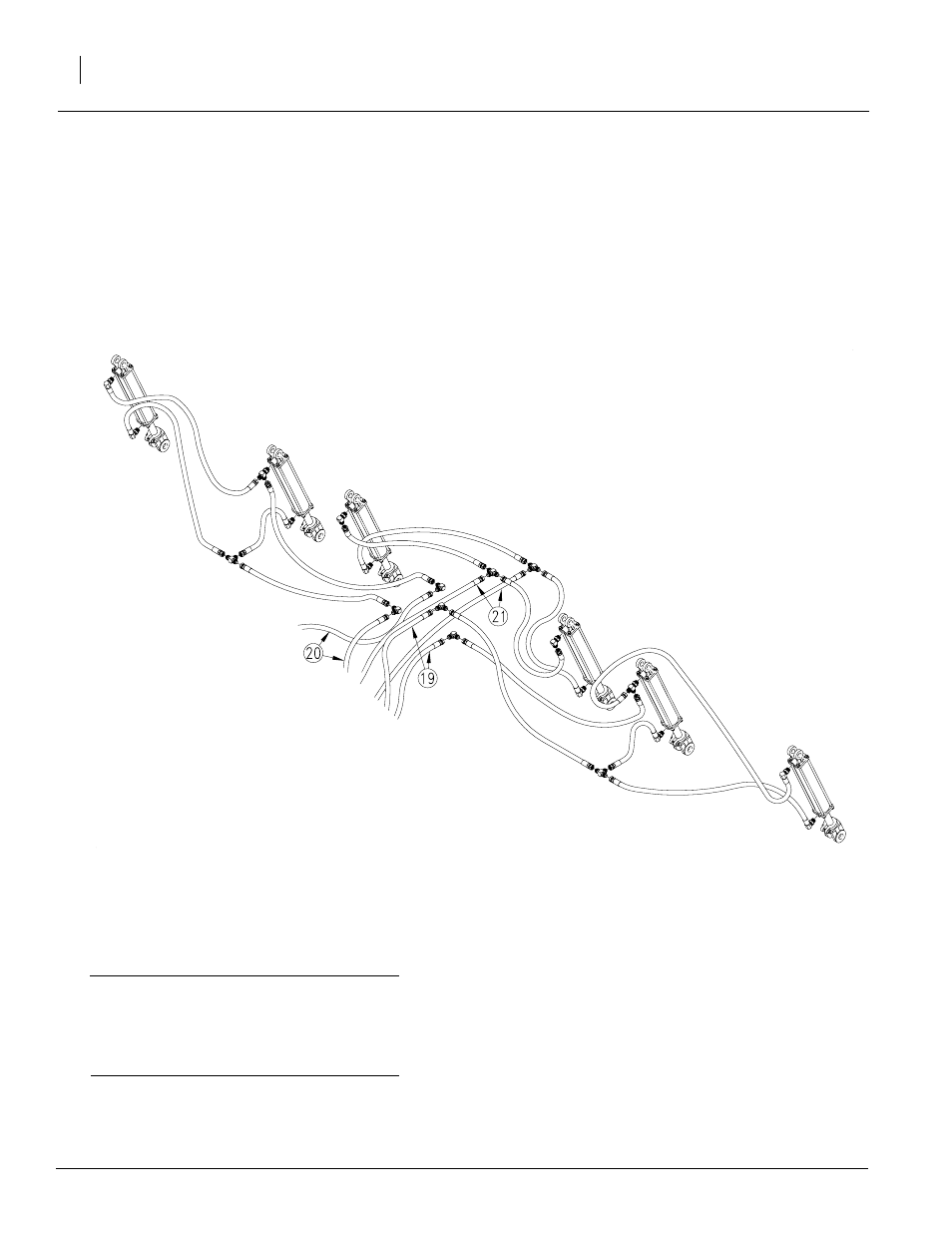

Refer to Figure 8
10. Using two elbow fittings, connect hoses from
the pressure-control valve on the far left (19)
to left wing cylinders.
11. Using two more elbow fittings, connect hoses
for pressure-control valve on the far right to
right wing cylinders (20).
12. Using the existing tee fittings, connect hoses
from the pressure control valve in the center
(21) to center section cylinders.
IMPORTANT: Connect hoses from rear port in
the pressure-control valves to the base end of
cylinders. Connect hoses from bottom port in
pressure-control valves to rod end of cylin-
ders.
17089
Figure 8
