Great Plains 3000-3S Assembly Instructions - Manual

© Copyright 2000 Printed
Great Plains Mfg., Inc.
Used with:
Installation Instructions
195-192M Rev. A
3000-3S
Point-Row Option 2004-
• 3000-3S
General Information
Assembly Instructions
When you see this symbol, the subsequent instructions and
warnings are serious - follow without exception. Your life and
the lives of others depend on it!
!!
These instructions explain how to install the Point-
Row Option. The point-row option allows you to
raise and lower openers on each drill section
independently.
These instructions apply to:
195-191A 3000-3S Point Row Assembly 2004-
Instructions apply for 3S-3000 drills built before
December 2004, up to and including S/N S1699.
These drills have a single inline hydraulic filter.
Definitions
Right-hand and left-hand as used in this manual
are determined by facing the direction the drill will
travel while in use.
02/16/2005
Manual Update
Refer to the 3000-3S operator’s manual for de-
tailed information on safely operating, adjusting,
troubleshooting and maintaining the Point-Row
Option. Refer to the parts manual for part
identification.
195-110M 3000-3S Operator’s Manual
195-110P 3000-3S Parts Manual
Before You Start
Pages 14 and 15 are a detailed listing of parts in-
cluded in the Point-Row Option package. Use this
list to inventory parts received.
Hydraulic Assembly
Refer to Figure 1
1. Unscrew hoses from tee fittings (1) on mount-
ing bracket. Remove and discard tee fittings.
17083

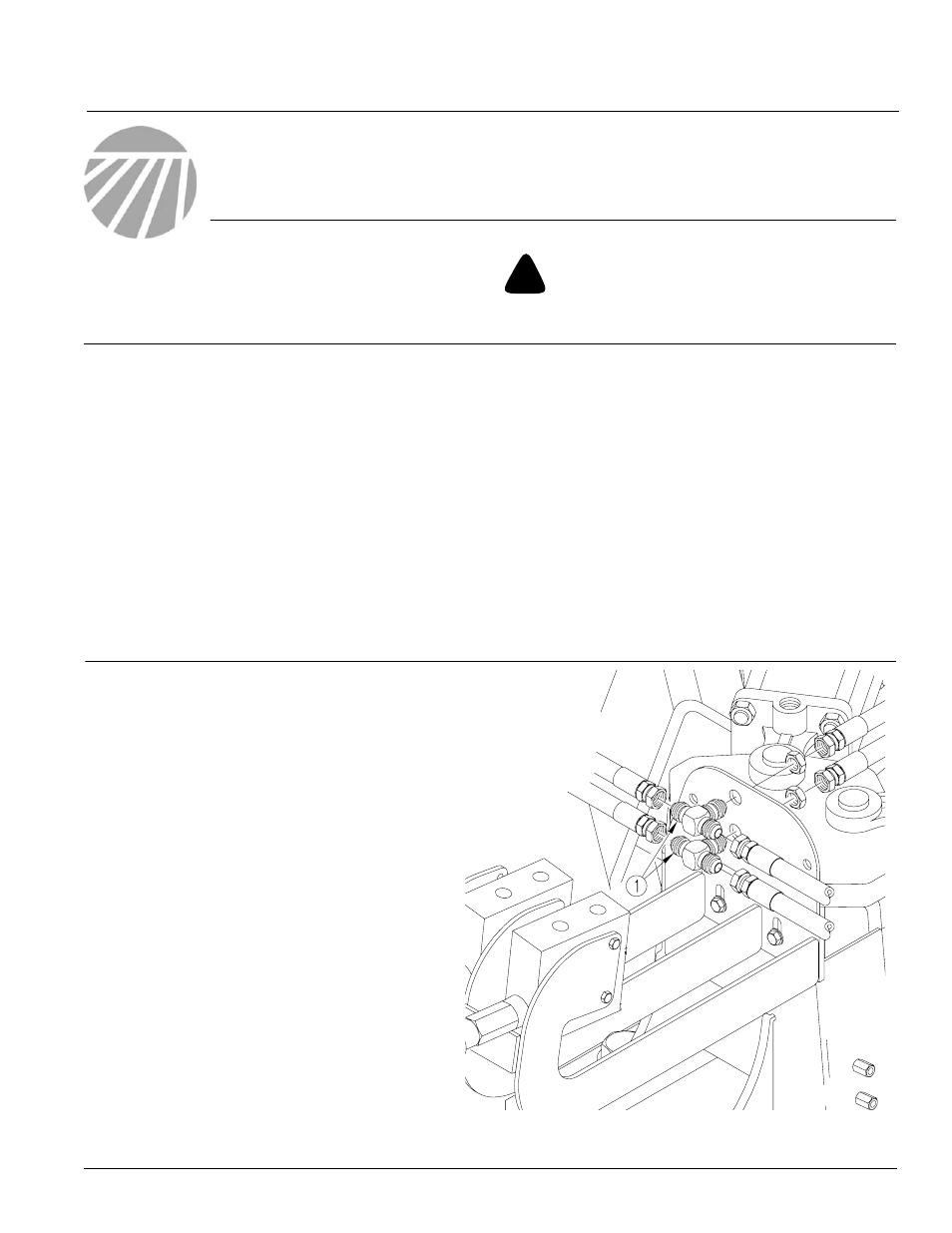

Figure 1
Removing Fittings
