5 Installation Instructions
Seed Tube Assembly
The openers on the 706/1006 have two locations
for small grass delivery. In row or side delivery.
The in row delivery is installed in the rear opener
hole while the side delivery attaches to the side of
the opener.
Refer to Figure 6
19. Insert the seed tube (1) into the hole on the
top of the opener. Secure in place with a num-
ber 10-16 x 1/2” screw (2).
20. Slide a hose clamp (4) over the hose (3). Slide
the end of the hose over the seed tube and
secure it in place with the hose clamp.
21. Slide a hose clamp (4) over the other end of
the hose and slide the hose over the seed out-
let which corresponds with the appropriate
opener. Secure hose in place with the hose
clamp. Repeat the above steps to install the
rest of the seed tubes and hoses.
22. Set the side delivery tube (5) down over the
top of the opener directly in front of the fertil-
izer tube. Line up the holes with the holes in
the opener and insert the 3/8” x 3 5/8” bolt and
secure bolt with a 3/8” lock nut flange.
23. Slide a hose clamp (4) over the hose (3). Slide
the end of the hose over the seed tube and
secure it in place with the hose clamp.
24. Slide a hose clamp (4) over the other end of
the hose and slide the hose over the seed out-
let which corresponds with the appropriate
opener. Secure hose in place with the hose
clamp. Repeat the above steps to install the
rest of the seed tubes and hoses.
Walkboard Assembly
25. Assemble walkboard on the end panels and
walkboard supports using hardware removed
in step 2 on page 2.
26. Attach SMV sign and add all safety and warn-
ing decals to the walkboard.
27. Refer to your Great Plains seed rate book and
operator’s manual for setup, calibration and
use.

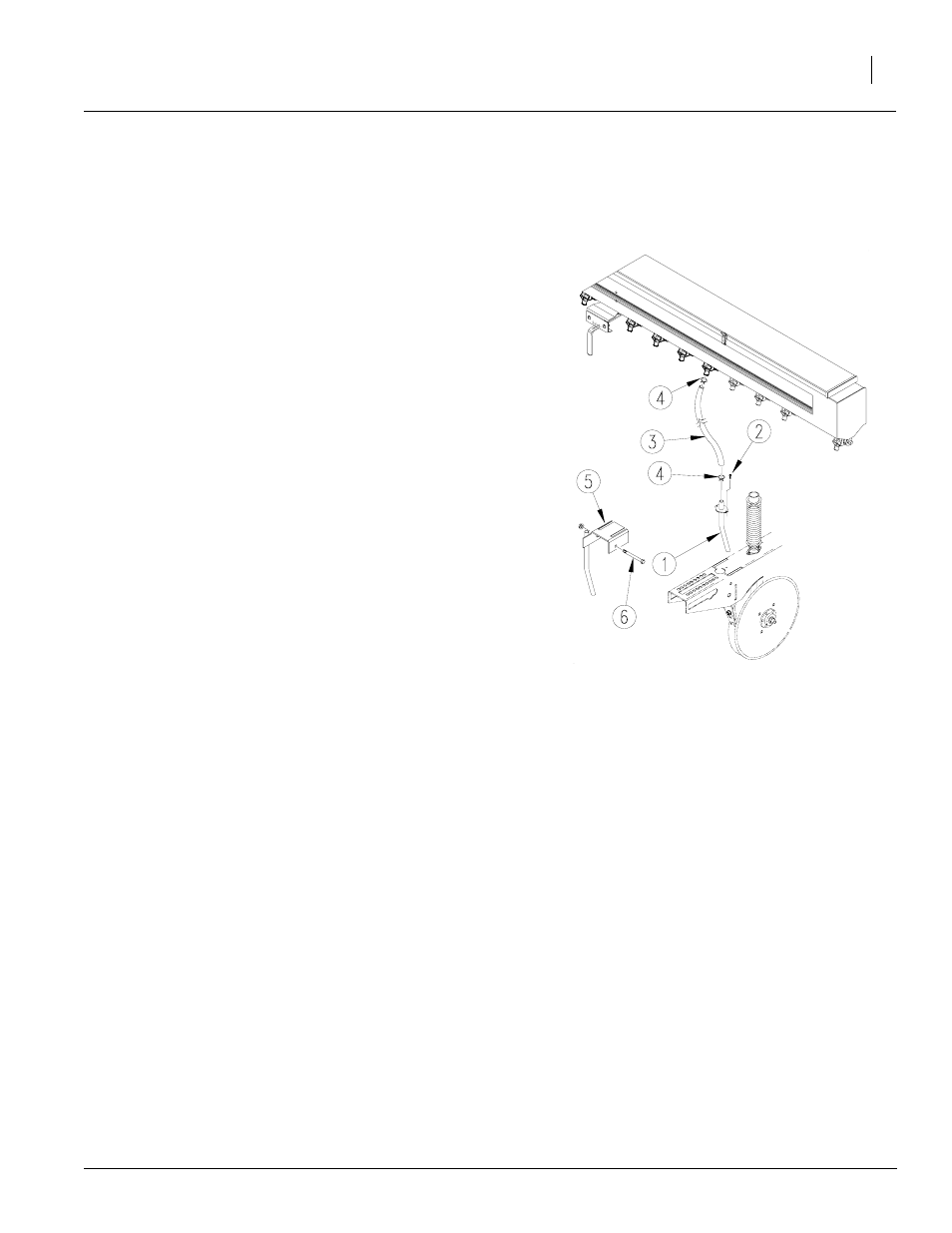

Figure 6
Seed Tube Assembly
22559
