Quick Setup Guide for IntelliAg Model CTA
System Component Installation

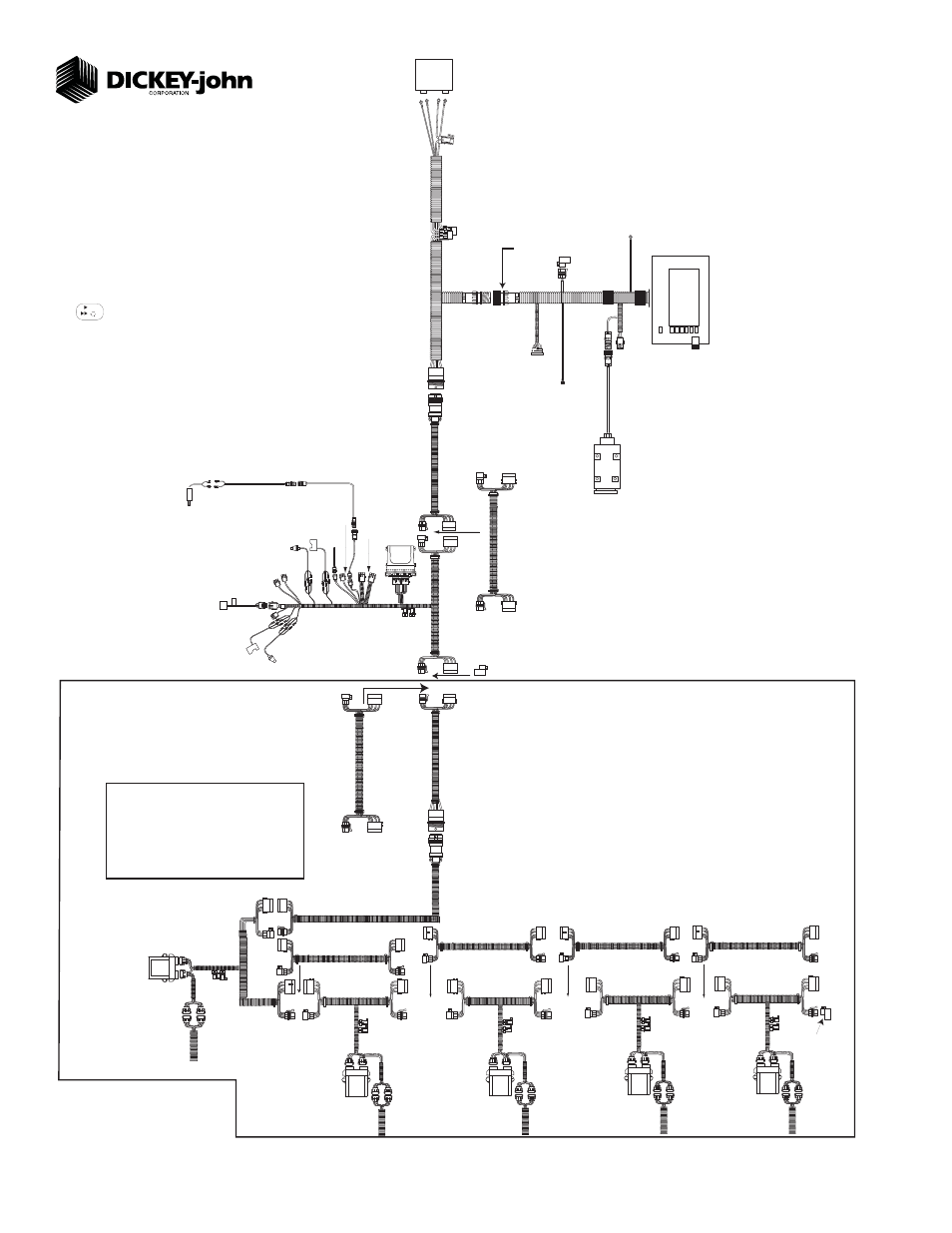

Locate and install system components as shown in the
diagram. Note how the modules are identifi ed and which
modules are located on which sections in this system.
Connect WSMB module harnesses together with included ex-
tensions. Modules connect to the WSMT harness connection.
Plug all unused connectors with included dust plugs.
Secure any excess wires with tie wraps.
See Operator’s Manual for additional installation information.
Power on monitor and program with correct constants as
described on this Quick Start Guide.
Note: The pre-programmed constants in the monitor may
cause an error code on the initial power on of a new system.
This is normal and can be cleared by pressing and holding
ESC key for 2 seconds.
1.
2.
3.
4.
5.
5
Connect Cab Harness
to Implement Can
Harness
Connect harnesses and accessory devices as
shown. Verify that outputs have
properly connected feedback sensor.
Implement CAN
Breakaway Harness
467980131
Multiple Lengths
Radar Speed Sensor
(Radar connected to either tractor harness
or WSMT as shown below)
Virtual
Terminal
Ignition
Connect to switched
+12VDC
NOTE: This wire
must be connected to
switched +12VDC
+ -
Tractor Cab Harness
467980455
Battery
Tractor ECU
467980451A
Harness only
Harness
467980452
(A2 Terminal)
or Harness
467980451A
(A1 Terminal) Chassis
Ground
Hopper Level
Sensor Front
Zeromax
Labeled Front
and Rear
Fan
RPM
WSMT2
Module
ACCGP
Pressure Sensor
Front
Clutch
Hopper Level Sensor
Rear
Pressure Sensor
Rear
Ground
Speed
Application Rate
Sensor Front
Fan
Solenoid
10’ Extension
467980141
20’ Extension
467980131
WSMB Module Harness
467981201 Dj SE style
467751320 harness (CTA 50 row)
467751330 harness (CTA 65 row)
467751330 harness (CTA 80 row)
10’ Extension
467980141
10’ Extension
467980141
467751320 (CTA 50 row)
467751330 (CTA 65 row)
467751330 (CTA 80 row) 467751320 (CTA 50 row)
467751330 (CTA 65 row)
467751330 (CTA 80 row) 467751320 (CTA 50 row)
467751330 (CTA 65 row)
467751330 (CTA 80 row) 467751320 (CTA 50 row)
467751330 (CTA 65 row)
467751330 (CTA 80 row)
Connect CAN
Terminator
467980126 with
Blockage option
5’ Extension
467980142
50 row (rows 1-10 connected)
(rows 11-12 not connected-
plug w/464211090)
65 row (rows 1-13 connected)
(rows 14-16 not connected-
plug w/464211090)
80 row (rows 1-16 connected)
Application Rate
Sensor Rear
CAN
Terminator
467980126
467980360
467980856
WSMB WSMB WSMB WSMB
467980477
5’ Extension
467980142 5’ Extension
467980142
467981201 467981201 467981201 467981201
* * * *
*
*
Blockage option
467980475 467980474
**
Connect CAN Terminator 467980126 for
non-Blockage application or 10’ Extension for
Blockage option
