10/7/2004

196-304m

Great Plains Mfg., Inc.

3

Installation Instructions

196-300A cont.

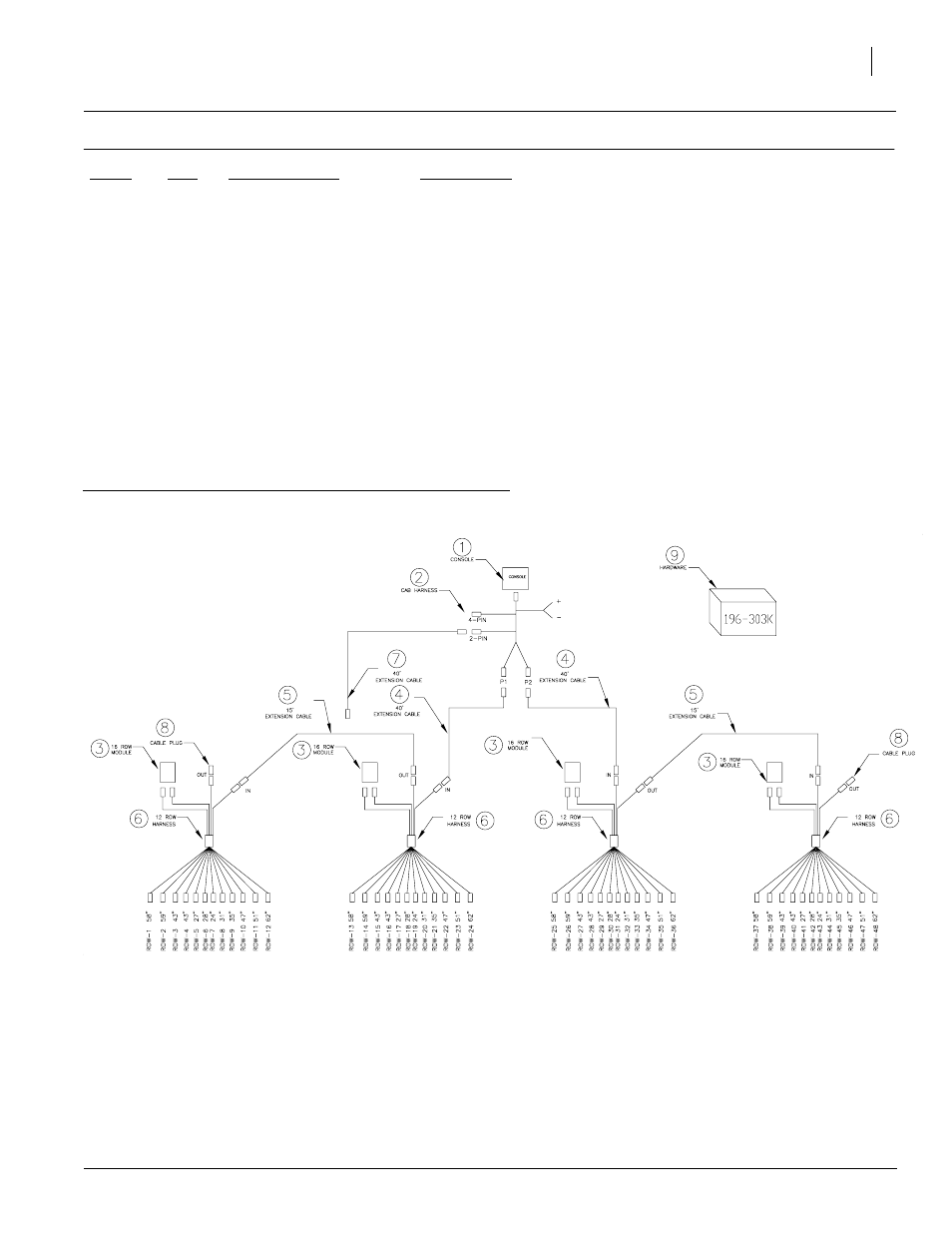

30P 48 Row 7.5" Spacing Monitor System Schematics

Note: For further schematic illustration, refer to the DJ manual supplied in the Monitor System Package.

20230

Ref #

Qty

Part Number

Description

1.

1

466822000S1

Seed Manager Console*

2.

1

466820134S1

Seed Manager 4WD Cab Harness

3.

4

467751130S1

16-Row Module

4.

2

467751207S1

Seed Manager 485 Module Extension 40’

5.

2

467751203S1

Seed Manager 485 Module Extension 15’

6.

4

467751437S1

12-Row Harness 30P 10

7.

1

466820834S1

Speed Sensor Extension Cable 40’

8.

2

464211340

Seed Manager Module Cable Plug

9.

1

196-303K

Hardware Bundle

*NOTE: Refer to DJ manual for Console installation.
