NOTE: The lower left box in Figure
5 locates 556-442D’s and 556-441D’s
bottoms from the center frame hitch plate’s
bottom.

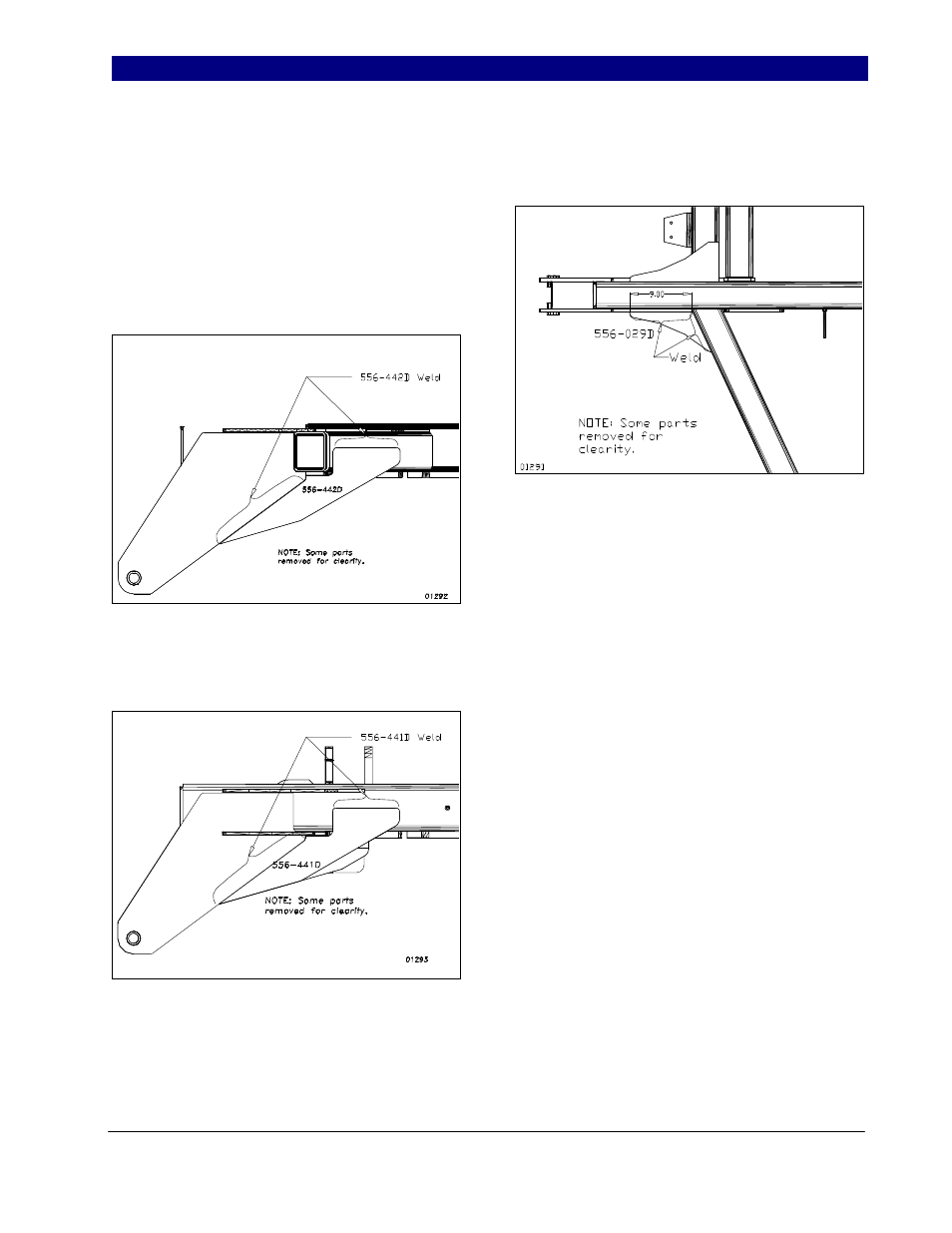

Start with the 556-442D gusset to
center frame and clamp or hold and tack it as
shown in Fig. 6. Then weld completely in
locations shown. Now weld the second 556-
442D on other side of frame as previously
described.
Figure 6
Repeat the same procedure for the
556-441D gusset as shown in Figure 7.
Figure 7
When you have the 556-442D and the
556-441D completely welded you can repeat
the same procedure for the 566-029D gusset
as shown in Figure 8.
Figure 8
