3/3/2006 113-688M
Great Plains Mfg., Inc.
3 Installation Instructions
Carrier Assembly for 20P drill
To assemble carrier onto drill frame, refer to Fig-
ure 3

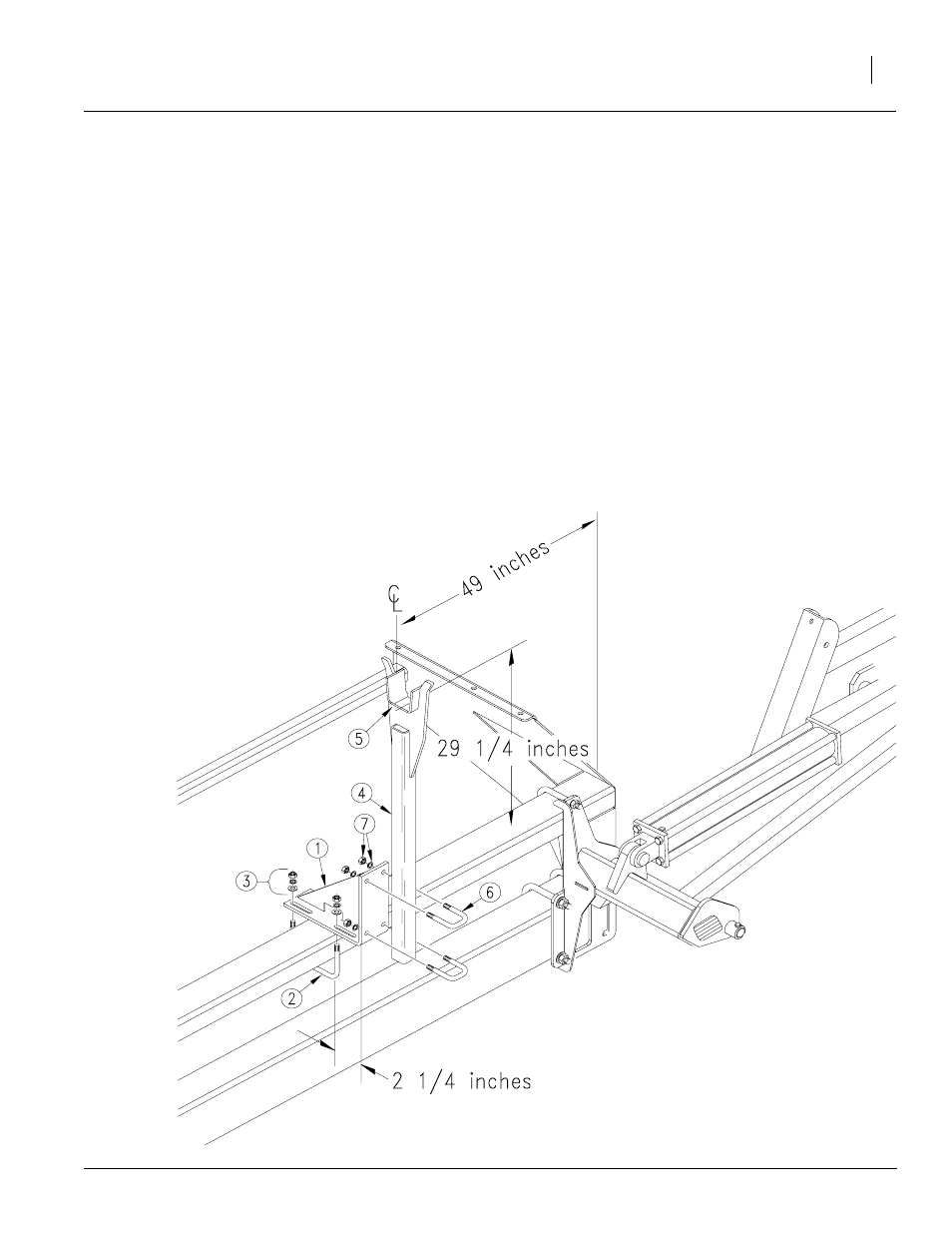

Figure 3
Carrier Assembly
18415
.
1. Assemble transport-carrier mount (1) on drill
frame. Center mount 49 inches from outside
end of drill frame. Use 1/2 x 6 1/32 x 7-inch
u-bolts (2), flat washers, lock washers and
hex nuts (3). Slide mount forward so its lead-
ing edge is about 2 1/4 inches ahead of front
edge of drill frame tube.
2. Bolt transport carrier (4) to transport-carrier
mount so top surface of saddle (5) is about
29 1/4 inches above top of drill frame tube.
Secure transport carrier with 1/2 x 2 x 3-inch
u-bolts (6), lock washers and hex nuts (7).
3. After installing and bleeding hydraulics, trans-
port carrier may require further adjustment.
When folded, the second marker section
should rest in the transport-carrier saddle.
