Attach New Lift-Assist Frame Mount
Refer to Figure 11
Attach Clamp and Spacers
30. Select two each:
151-384D LIFT ASSIST MOUNT CLAMP SPACER
and one each:
151-180H LIFT ASSIST MOUNT CLAMP WLDMNT
and eight each:
802-057C HHCS 5/8-11X2 1/4 GR5
803-021C NUT HEX 5/8-11 PLT
804-022C WASHER LOCK SPRING 5/8 PLT
Position both clamp spacers . Place lift assist
mount clamp weldment on top of spacers. Secure
with bolts, washers and nuts.
Frame Mount Weldment
31. Select one new frame mount:
151-179H LIFT ASSIST FRAME MNT WLDMNT
and eight each bolts, washers, nuts:
802-053C HHCS 5/8-11X1 3/4 GR5
803-021C NUT HEX 5/8-11 PLT
804-022C WASHER LOCK SPRING 5/8 PLT
804-195C WASHER FLAT 1.31ODX.65IDX.188T
32. Mark hole placement on frame.
33. Drill holes then attach mount weldment using one
set of bolts, washers, and nuts per hole.
Attach Lift-Assist Bolt On Mount
34. Select one:
151-172H LIFT ASSIST BOLT ON MOUNT
and ten each:
802-055C HHCS 5/8-11X2 GR5
804-022C WASHER LOCK SPRING 5/8 PLT
803-021C NUT HEX 5/8-11 PLT
Attach lift assist bolt on mount to frame mount
weldment using bolts, washers and nuts.

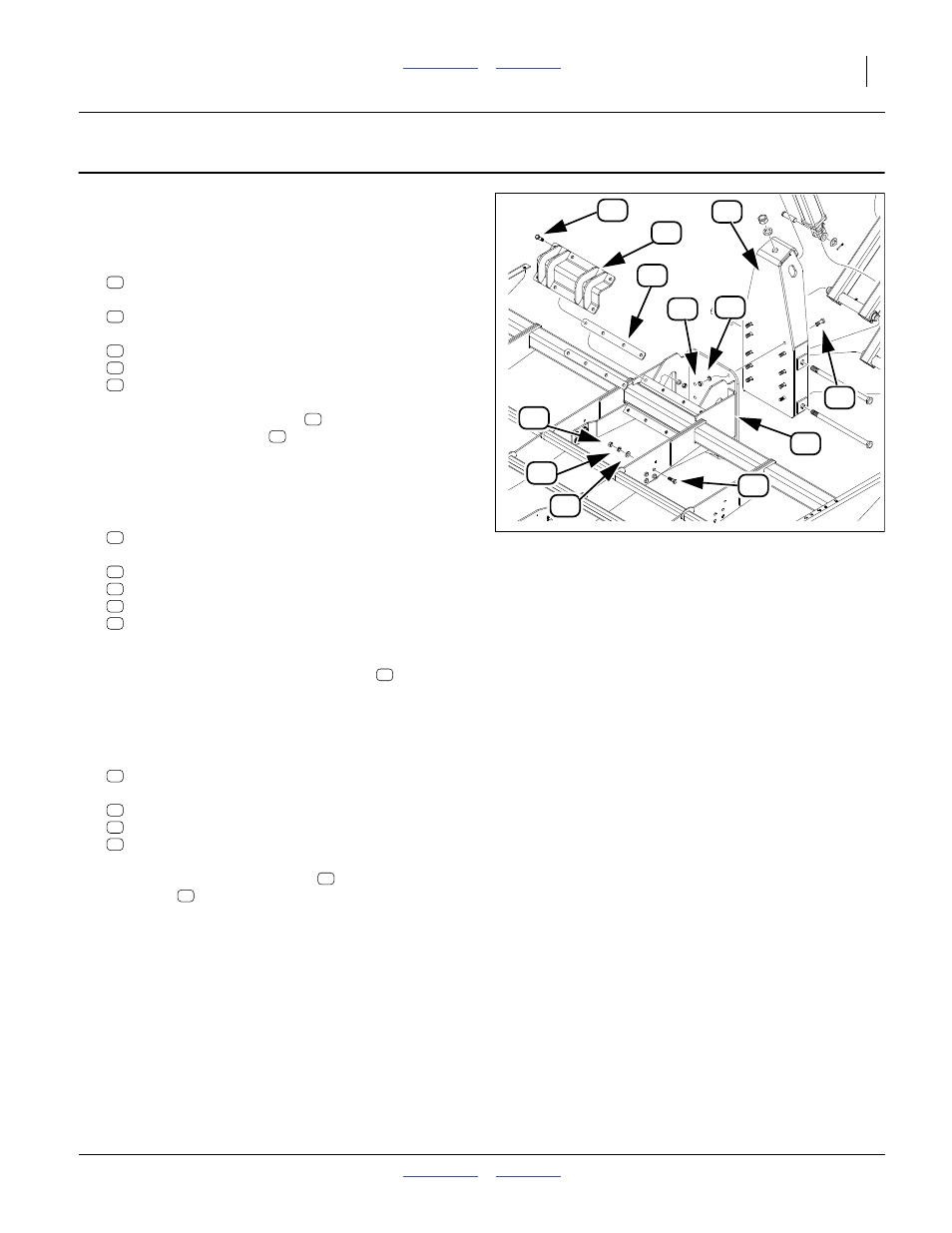

Figure 11
Install Frame Mount Weldment
and Bolt On Mount
