Install Hydraulic Hose
Refer to Figure 15
49. Select saved hose:
841-286C HH1/4R2 134 9/16FJIC 1/2MNP
and one each:
811-065C EL 9/16MJIC 9/16MORB
841-286C HH1/4R2 134 9/16FJIC 1/2MNP T
50. At the MORB fitting, fully back off the jam nut.
Loosely connect the MORB end of hose to the top
(base end) port of the cylinder. Orient the elbow so
that the hose route is down. Do not tighten ORB fit-
ting or its jam nut.
51. Secure the FJIC end of hose to the end port of
the elbow . Tighten to specification.
52. Select two sets:
800-239C 1.125 WIRING AND TUBE CLIP
802-017C HHCS 3/8-16X1 GR5
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
Note: The hose is secured to the frame brace plate at two
points.
53. Place the clip around the feed-line hose .
Insert the bolt . Loosely secure with lock washer
and nut . Tighten the nut.
54. Feed-line hose terminates in a 1 ⁄
2
in male NPT fit-
ting. Adapt this to the style and size of coupler
required to connect the drill to a hydraulic source for
the next step. The drill does not include a coupler for
this purpose. If fitting the coupler for the tractor to be
used with this drill in the field, apply liquid sealant to
the threads before making the connection. Do not
use plastic tape sealant.

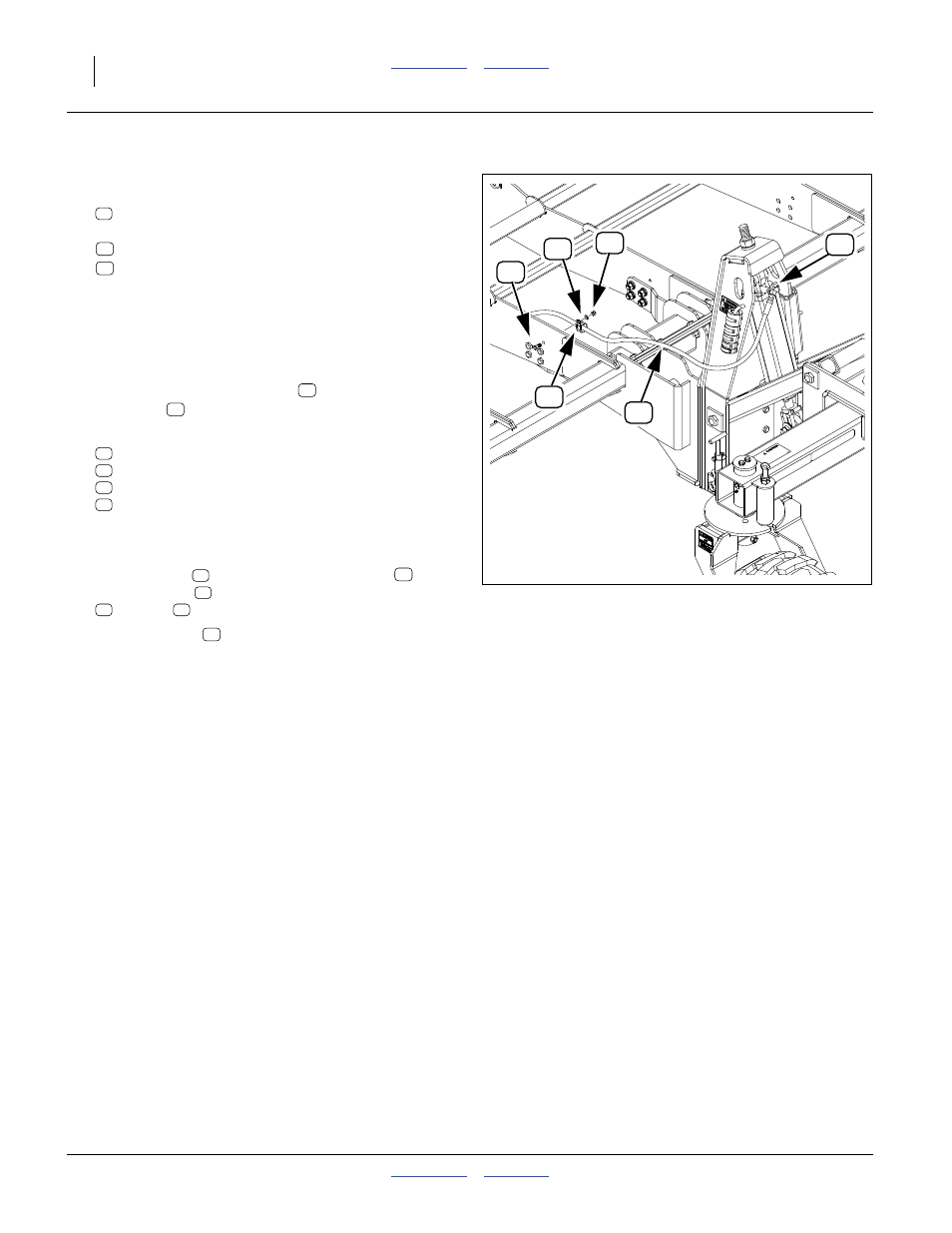

Figure 15
Install Hydraulic Line
32134
46 74
76
70
69
81
81
46
81
81
46
69
70
76
74
69 81
70
76 74
81
