Installation Instructions
Ref#
Qty
Part Number
Description
1.
1
466822000S1
Seed Manager Console*
2.
1
466820134S1
Seed Manager 4WD Cad Harness
3.
2
467751130S1
16-Row Module
4.
1
467751206S1
Seed Manager 485 Module Extension 30’
5.
1
467751202S1
Seed Manager 485 Module Extension 10’
6.
2
467751420S1
10-Row Harness 24P 10 LH
7.
1
466820835S1
Speed Sensor Extension Cable 30’
8.
1
464211340
Seed Manager Module Cable Plug
9.
2
110116416
TY Wrap Bundle (Not Shown)
10.
1
464211330
Seen Manager 2-Pin Cable Plug
11.
1
298-282K
Hardware Bundle (Not Shown, for parts listing refer to page 25)
*NOTE: Refer to DJ manual for Console installation.
298-293A cont.

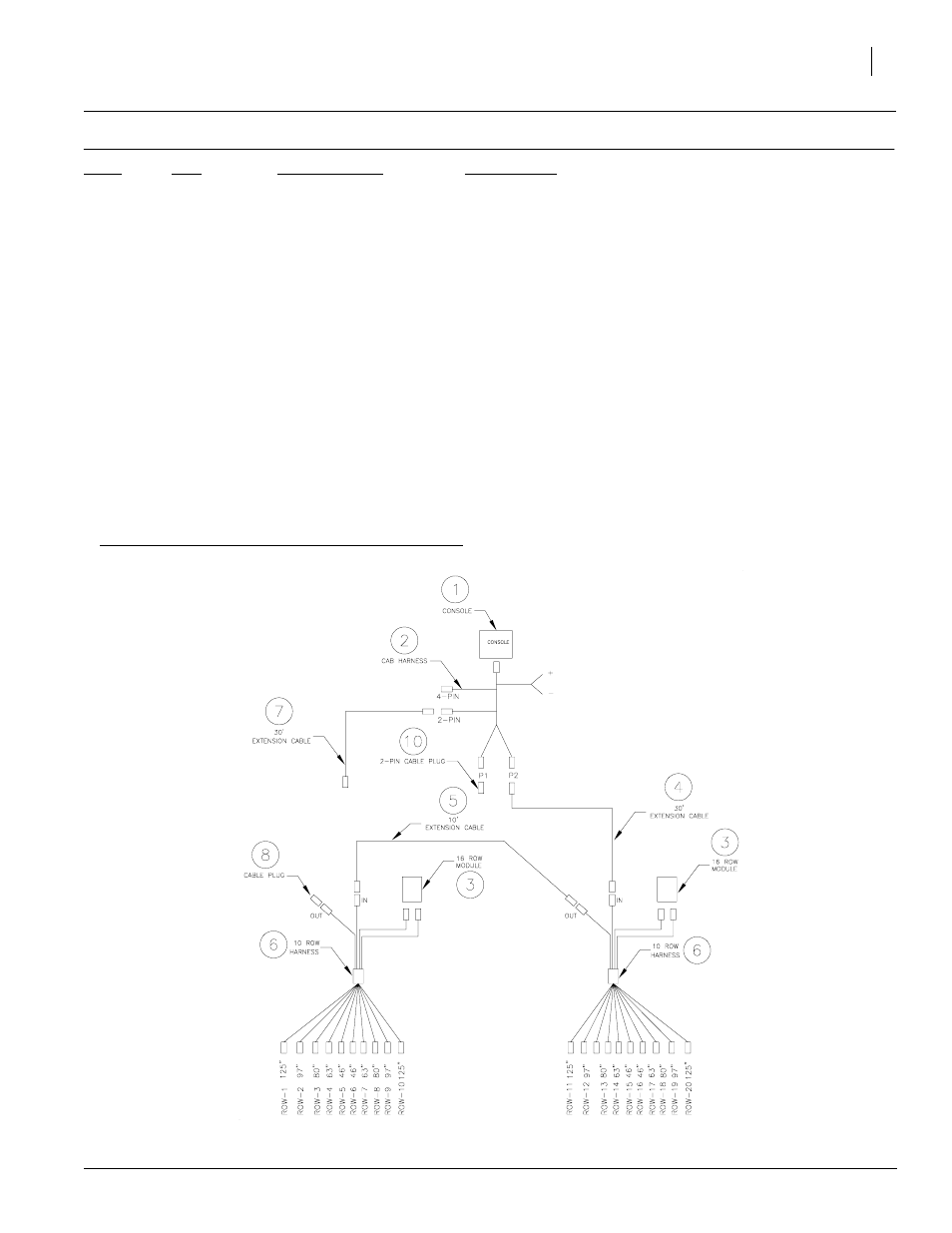

25P 20 Row 15" Monitor Harness Schematics
Note: For further schematic illustration, refer to the DJ manual supplied in the Monitor System Package.
