Rear Attachment Settings
Spike Drag Settings
Refer to Figure 24
21. On the spike drag, start with 5 links hanging from the chain
in drag arm bottom slot. (This is the starting point for worst
conditions). The cleaner the ground, the shorter the pull
chain may be pulled up. On the spike drag, one of the links
in the first row of angles is turned over. This allows the
trash to start flowing through the drag easier by changing
the angle of the first row of teeth. Always make sure that
the drag is never pulling off of the hang chains. If so,
shorten pull chains.
Heavy Coil Tine Settings
Refer to Figure 25
22. To change angle of coil tine, remove the hair pin cotter
from 3/4 hitch pin , remove hitch pin and move strap
adjustment by moving the adjustment lever forward or
backwards. The adjustment lever has 4 holes and will
change the coil tines several degrees.
23. Re-install the 3/4 hitch pin and hair pin cotter when
desired angle is set.

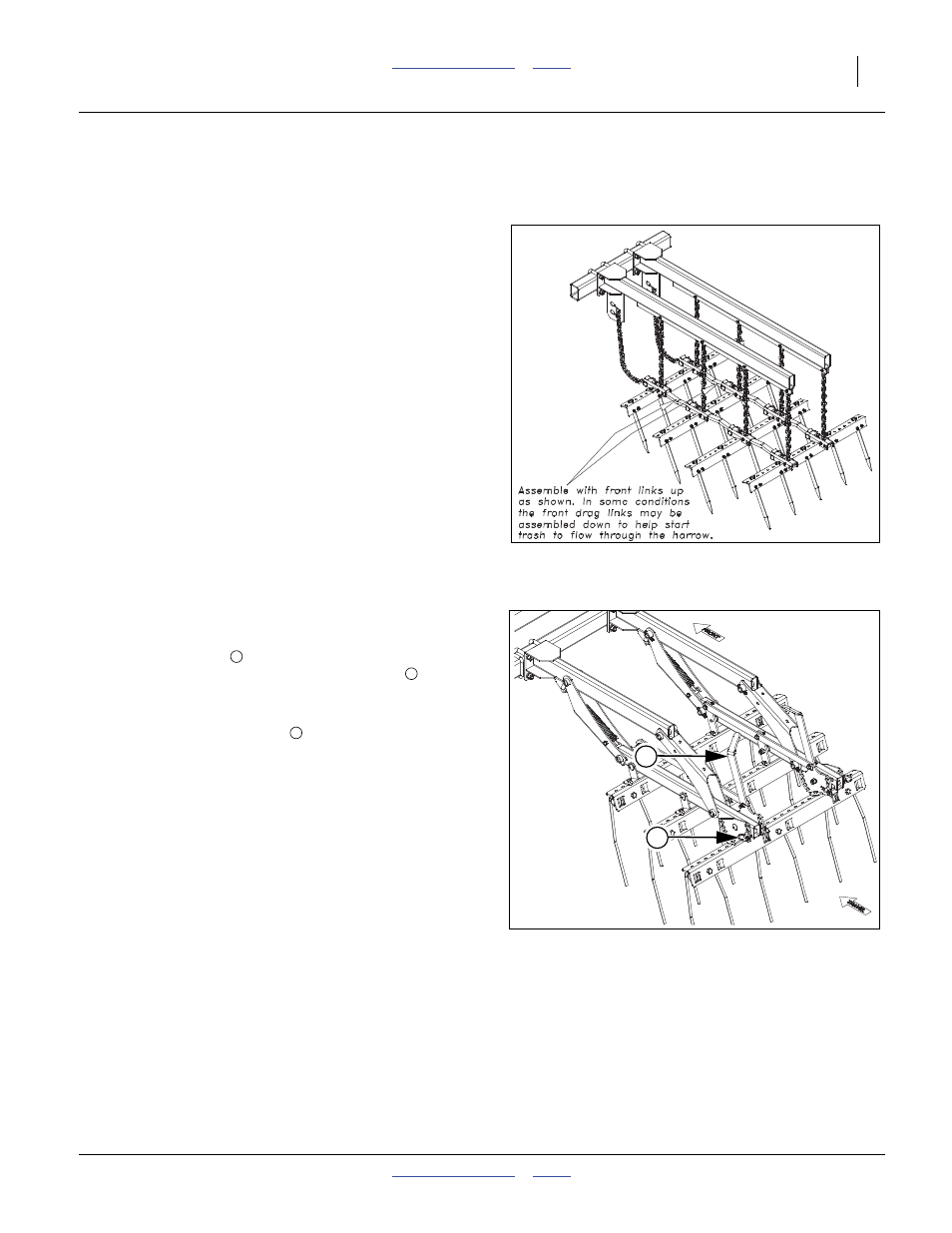

Figure 24
Spike Drag Settings
42153
Figure 25
Heavy Coil Tine Settings
42127
1
2
1
2
1
