21 Preparation and Setup
Installing Shins and Tips
Straight and Parabolic Shanks
Refer to Figure 9
1. Attach straight shin retainer (shown) (1) to the
straight shank using 1/2 x 2 1/2” bolts and 1/2”
lock nuts.
2. Slide one end of the straight shin (shown) (2)
under the shin retainer (1). Hold the lower end
in place by installing a tip (1 1/4” x 2” with fin
shown) (3). Use 1/2” x 2 1/2” bolts and 1/2”
flange lock nuts to secure tip.
Note: The the retainers and shins for the parabolic
shank and rigid shank mount use the same hard-
ware.

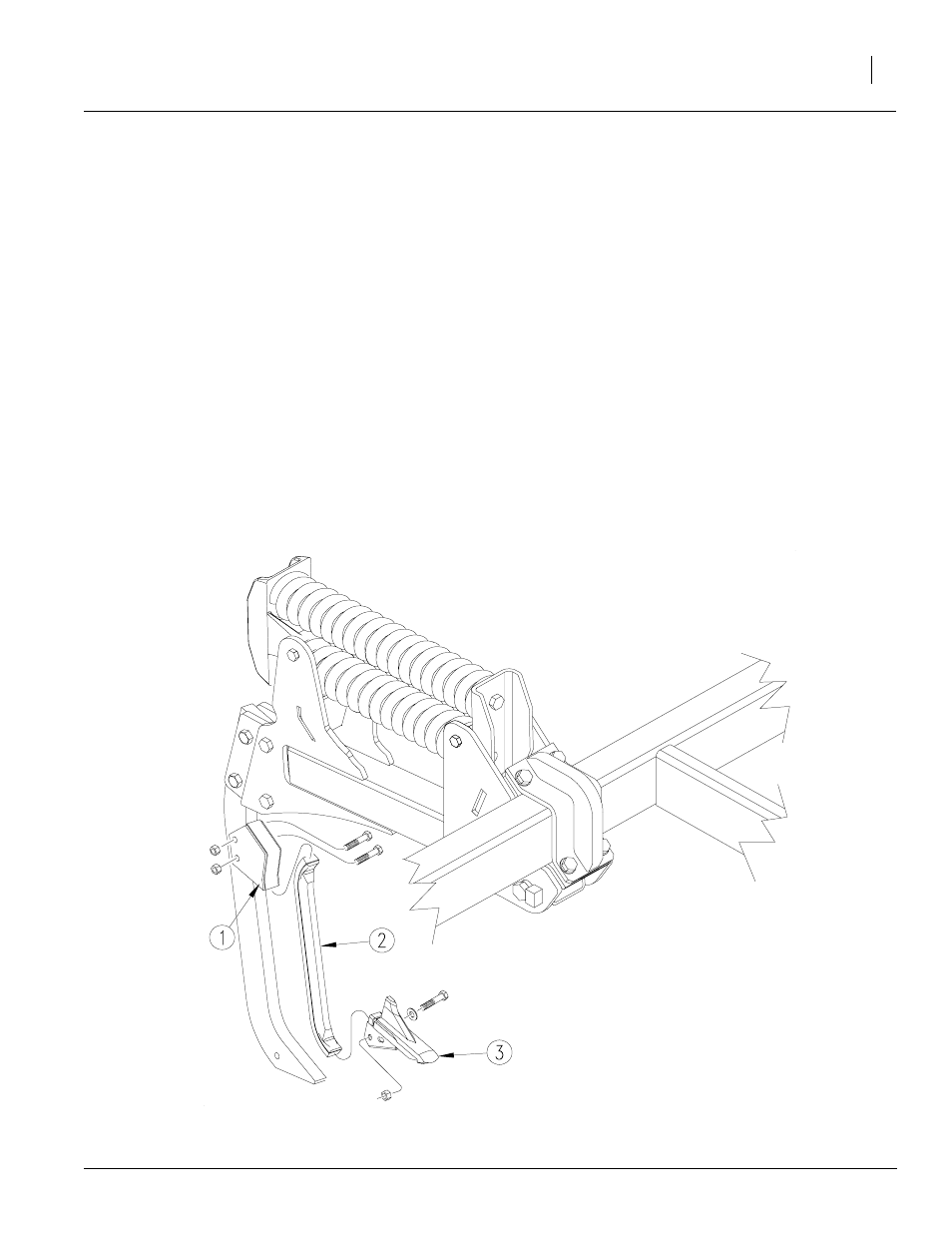

Figure 9
Shims and Tips
