This section will help you prepare your tractor and imple-
ment for use.
Wiring Drill
NOTE: If tractor does not comply with ASAE connector, use
the European adapter.
Refer to Figure 1
1. Remove screw from outer casing of ASAE connector.
2. Loosen screw holding wires in place from outer casing
of ASAE connector. Pull outer casing apart. Disconnect
wires from connector by removing screws.
3. Completely remove outer casing from wires.
Refer to Figure 2
4. Remove black rubber end piece from European
adapter. Thread wires through black rubber end piece
starting with the smaller end.
Refer to Figure 3
5. Remove the two screws holding the outer casing of the
European adapter together. Keep for reuse.
6. Remove connector from outer casing. Thread wires un-
der metal bar in bottom of outer casing.
Refer to Figure 4
7. Attach wires to connector using the terminal number in-
dicators on the back of the connector and the table be-
low.
Preparation and Set-Up
Conductor
Identification
Wire
Color
Terminal
Number
Circuit
Wht White 3 Ground
Yel Yellow 1 Left Blinker
Grn Green 4 Right Blinker
Brn Brown 6 Tail Lamps
8. Align connector in bottom of outer casing.
NOTE: BE SURE CONNECTOR AND CASING ARE
PROPERLY ALIGNED, OTHERWISE CASING WILL NOT
FIT CORRECTLY.
9. Tighten screws securing wires and metal bar in place.
10. Replace top of outer casing. Insert and tighten screws
removed in Step 3.
11. Slide black rubber end piece over the end of the outer
casing securing the wires.
23264
23265
End Piece
Figure 2
European Adapter
23252
Figure 3
Remove Screws to Outer Casing
23254

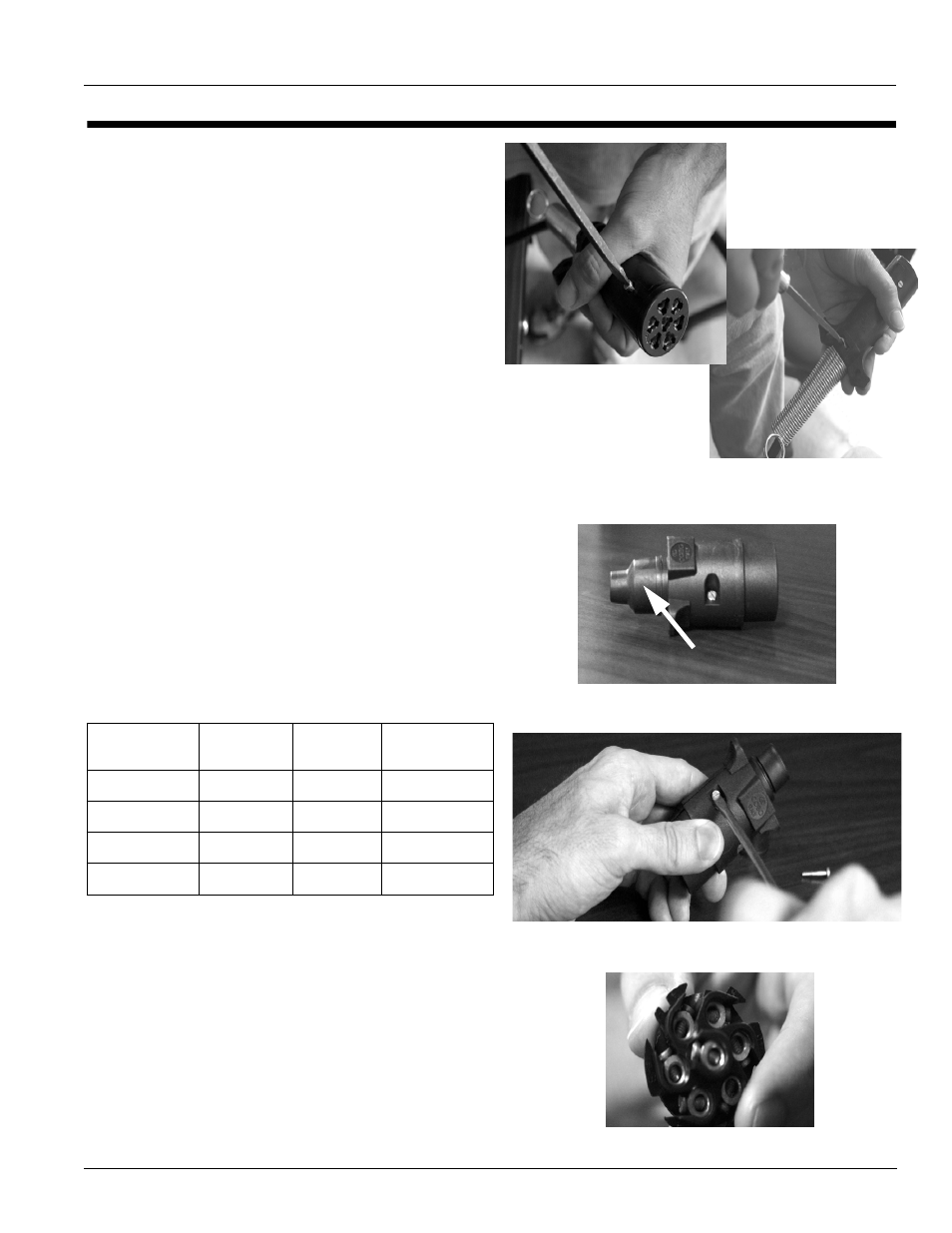

Figure 1
Removing ASAE Connector
Figure 4
Back of Connector
23255
