Great Plains Yield-Pro Planter Seed Tube User Manual
Page 2
5/10/2006
Great Plains Mfg., Inc.
Seed Tube Support Update
2
24470

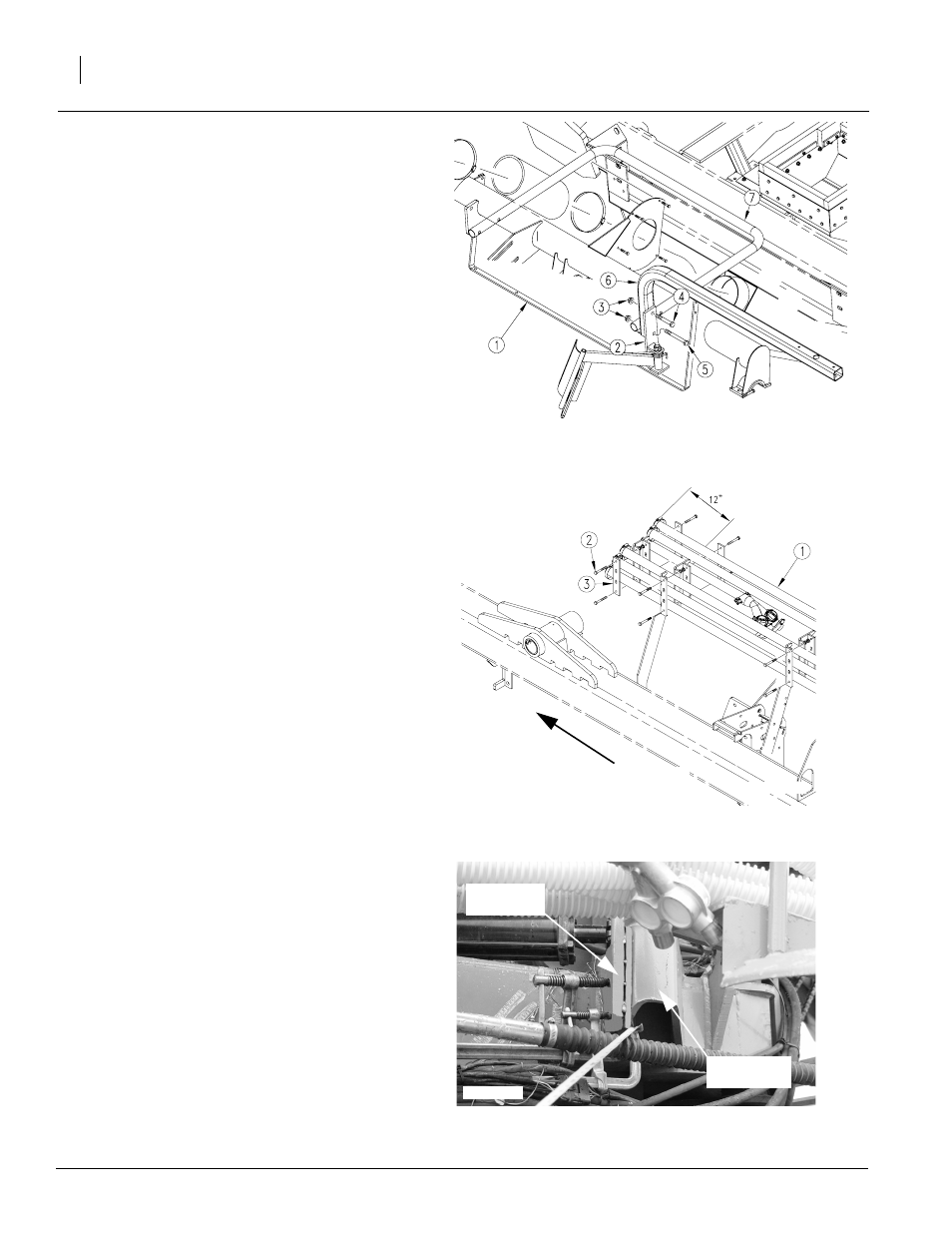

Figure 2
Hose Support Bar & Rear Hose Support Mount
Refer to Figure 2
4.
Unscrew and remove hose support bar (1)
from planter frame.
5.
Detach rear hose support mount (2) from fan
guard (7) and light bracket (6) by unscrewing
1/2-13 x 5 bolt (5) and 1/2-13 x 3 1/2 bolt (4).
Discard rear hose support mount (2).
6.
Reattach light bracket (6) to fan guard (7) us-
ing 1/2-13 x 5 bolt (5), 1/2-13 nut hex (3).
7.
Complete steps on opposite side of planter.
Refer to Figure 3
8.
Unclamp and remove air hoses from end of
seed tubes. Keep hose clamps for reuse.
9.
Remove last set of air tube support clamps (3)
closest to center of planter frame by unscrew-
ing bolts (2) and discarding all hardware.
10. Measure 12" off the end of the air tubes (1)
closest to the center of planter. Cut measured
12" off end of air tubes (1).
To Center of
Planter
24471
Figure 3
Air Tubes
Figure 4
Toolbar Air Hose Support
Refer to Figure 4
11. The toolbar air hose support comes in a pair
of left-hand and right-hand. Toolbar air hose
suppport will not install if trying to install LH
toolbar air hose support on RH planter toolbar
channel.
Toolbar
Channel
Air Hose
Support
24472
