Storing Parking Stands
Refer to Figure 5
18. While holding the parking stand
, remove the snap
lock pin .
19. Slide the stand clear up in stand mount as shown.
20. Install snap lock pin through aligned holes to secure.
Shank Mounting
Straight Shanks
21. Attach the straight shank assembly Refer to Figure 6
or no-till shank Refer to Figure 7 to the auto reset
shank mount using 3/4 x 6 Gr. 8 bolts , 3/4” hard-
ened flat washers , two on head side and one on lock
washer side, 3/4” lock washers and 3/4” nuts.
Note: Extra hardened washers allows use of longer bolt to
keep threads out of the shear area.
IMPORTANT: Torque bolts to 400 FT LBS.

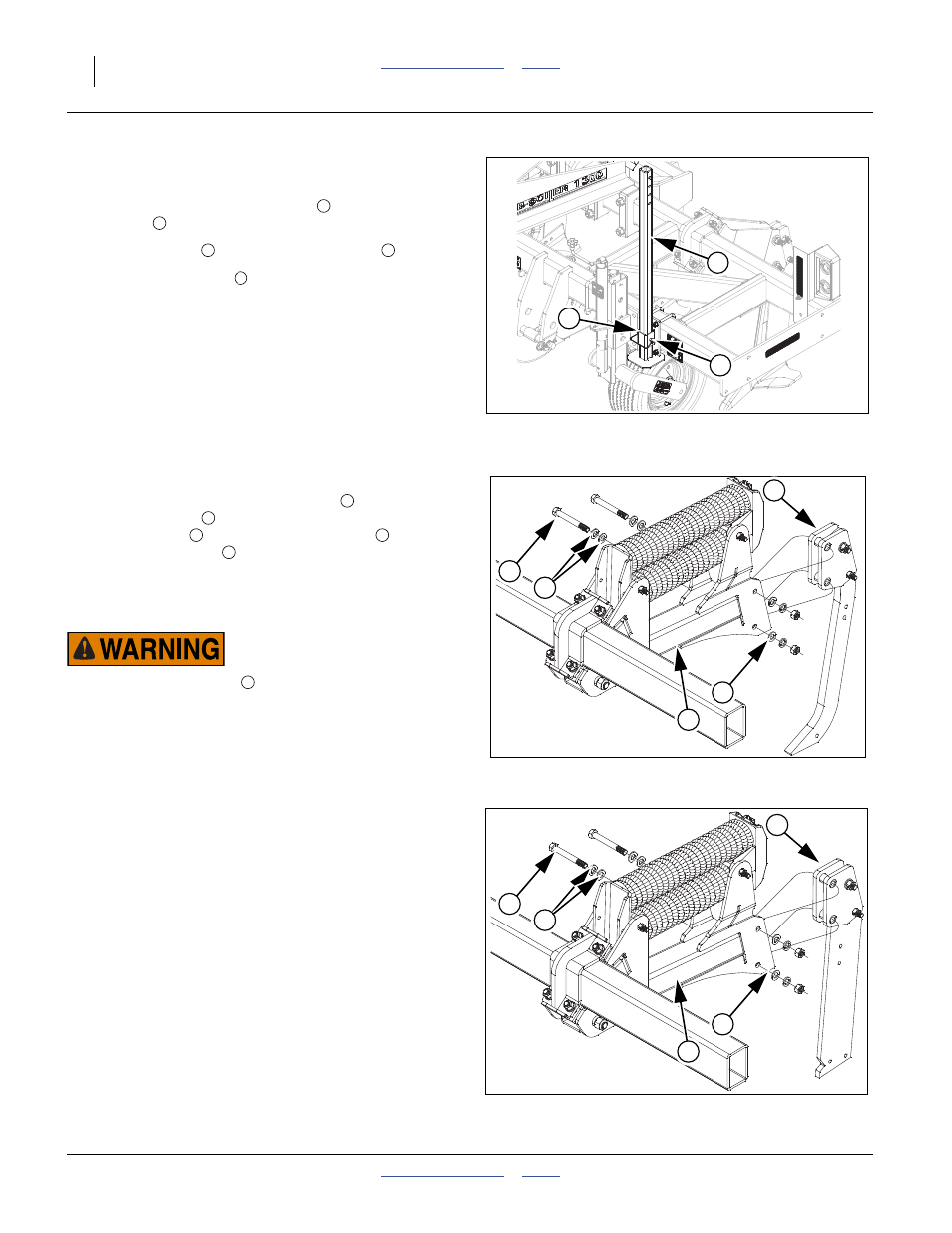

Figure 5
Store Parking Stands
41861
2
1
3
1
2
1 3
2
3
1
4
Figure 6
Straight Shank Mounting
42784
5
5
1
2
3 4
5
4
3
2
4
Figure 7
No-Till Mounting
42785
5
5
