9. Mount the transport carrier arm on the box by u-bolting it to the pull bar ears as shown in Fig. 6. The carrier arm (#
45) will fit on either side of the pull bar ear (# 46) but on drills that are equipped with the small seeds box, the carrier
must be installed towards the center of the drill as shown.Hold the carrier in place by passing the two u-bolts (# 47) over
the carrier tube, and through the holes in pull bar ears.Tentatively, tighten the u-bolts with the lock washers (# 48) and
nuts (#49) so that the top of the carrier is approximately 31 3/8" above the top surface of the box's 6" x 6" frame tube.
Mount the transport saddle (# 50) on the top of the carrier arm (# 45) using the u-bolts (# 51), lock washers (# 48) and
nuts (# 49). On 24' drills it is important that the saddle (# 50) be positioned so that the offset in the saddle is to the outside
of the drill as shown.Saddles on 30' drills may be oriented either in or out.
11201

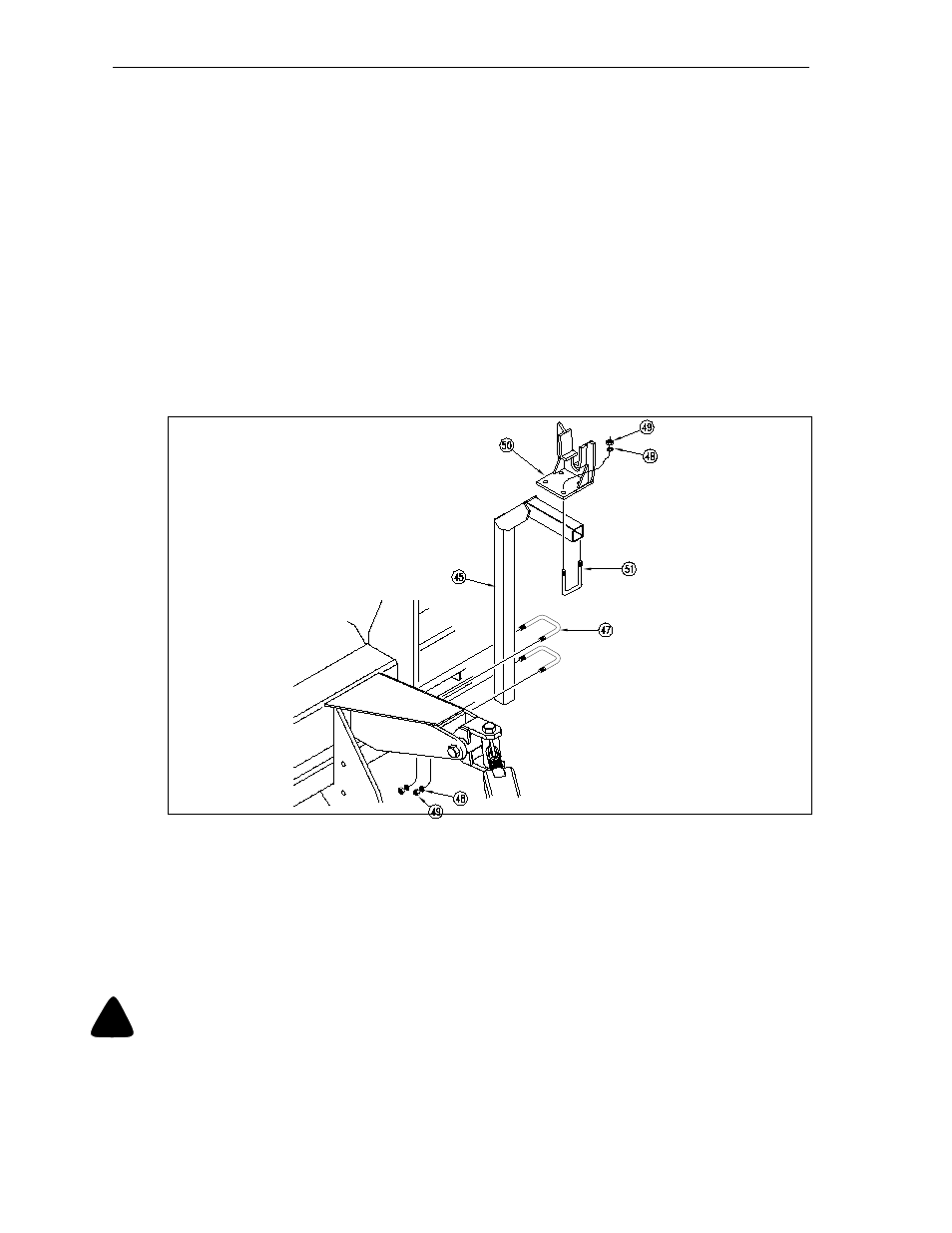

Fig. 6
NOTE: Dual Marker Installations.... To complete the installation, repeat steps 3 through steps 9 on the opposite marker.
All Installations.....
After all parts are in place, go back over the entire installation and tighten every bolt and u-bolt.Refer to the torque chart
in the front of your drill's owners manual. U-bolts can be torqued to grade 5 bolt values.
When finished, read and follow the MARKER HYDRAULIC SYSTEM INSTALLATION section of this manual.
!
CAUTION!
BEFORE FOLDING THE MARKER(S) FOR THE FIRST TIME, READ THE
SECTION ON ADJUSTMENTS IN THIS MANUAL.
INSTALLATION INSTRUCTIONS: 1992 2SNT 24’ & 2SNT 30’ MARKERS (CON’T.)
