4/8/04 1-9
HOSE CLAMPING AND ROUTING
8. Refer to the hose routing illustration Fig. 8, to fine tune the hose placement. Make a generous loop in both hoses
near the box's flex hinge. This loop should be large enough to allow the outer box wing to flex without the hoses pulling
tight. Maintain the loops by clamping the hoses in the existing hose clamps, using the split rubber sleeves as bushings
between the clamps and the marker hose. Use the cable ties supplied with the kit to hold the hoses away from any pinch
point along their path.

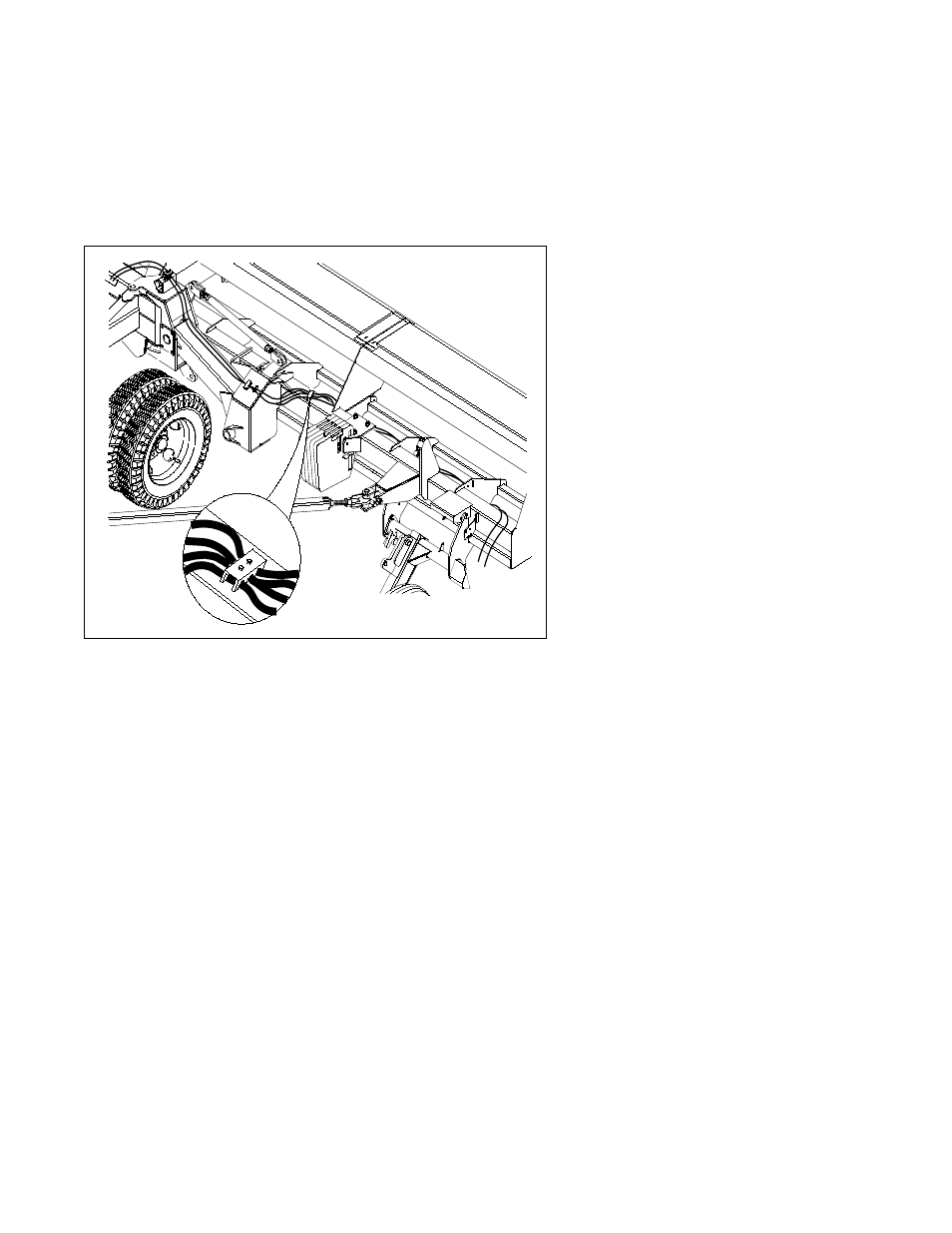

Hydraulic Hose Routing
Fig. 8
11161
