33 9/21/05 Great Plains Mfg., Inc. CPH and CP1000 Coulter Command System 148-258M-B
Ref. Part No. Part Description
Section 5 Parts
Piston Valve
Use Seal Kit 810-228C
(Ref. Item #6)
1. 39680008 Delta Coil 12VDC With Connector
2. 85002279 Delta 3W2P Valve
3. 810-265C Delta Shuttle Valve
4. 61000000 Delta 1/16" NPT Plug
5. 85002006 Delta Check Valve
6. 34952104 Delta Piston Assembly
7. 87410043 Delta PCR Valve
8. 30102610 Delta Coulter Command Manifold
9. 62010056 Delta PCR Sticker
10. 62010053 Delta Notice Tag

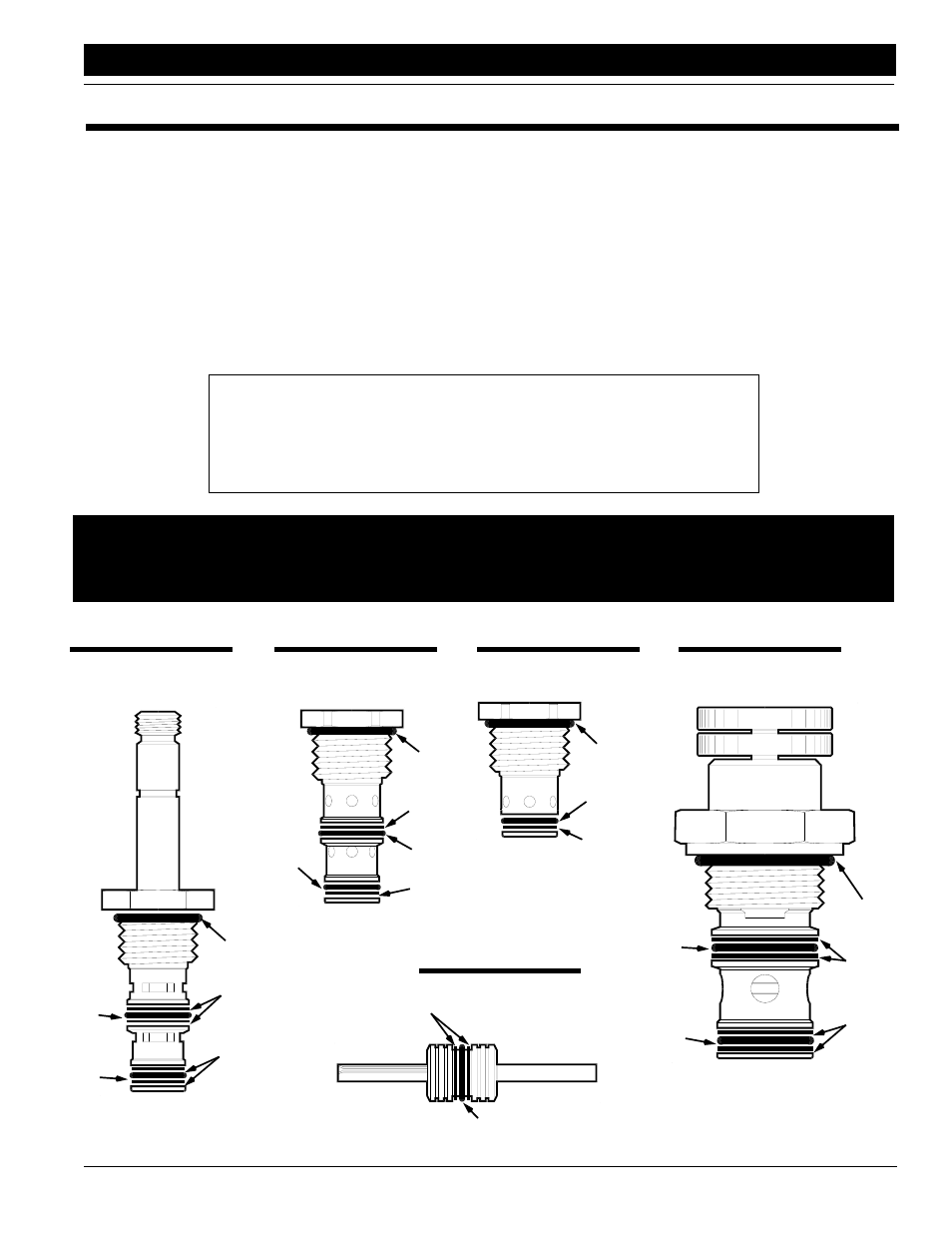

11. Seal Kit For Cartridge Valves (Refer To The Illustrations Below
For Proper Seal Kit Identification.)
"C" size
thin
"A" size
o-ring
"C" size
o-ring
"B" size
thin
back-up "B" size
o-ring
"C" size
thick
back-up
"A" size
o-ring
"C" size
o-ring
"B" size
o-ring
"B" size
thick
back-up
"A" size
o-ring
"B" size
thick
back-up
"B" size
o-ring
"B" size
o-ring
"B" size
thick back-up
"C" size
o-ring
"E" size
o-ring
"A" size
o-ring
"C" size
back-up
"E" size
back-up
3W2P Valve
Use Seal Kit 810-228C
(Ref. Item #2)
Shuttle Valve
Use Seal Kit 810-228C
(Ref. Item #3)
Check Valve
Use Seal Kit 810-228C
(Ref. Item #5)
PCR Valve
Use Seal Kit 810-235C
(Ref. Item #7)
Seal Kits For Coulter Depth Control Valves
Refer to Page 34 For Full Scale O-Ring/Back-up Ring Identification Chart
12587 12590
12591
12589
12588
NOTE: Each o-ring kit contains all of the o-rings for the series of valve on
which it is used. Not all of the seals will be used on every valve.
Each kit also contains a packet of sealant which is to be used on the threads
of the valve when it is re-installed into the manifold.
