Agitator Paddle Installation

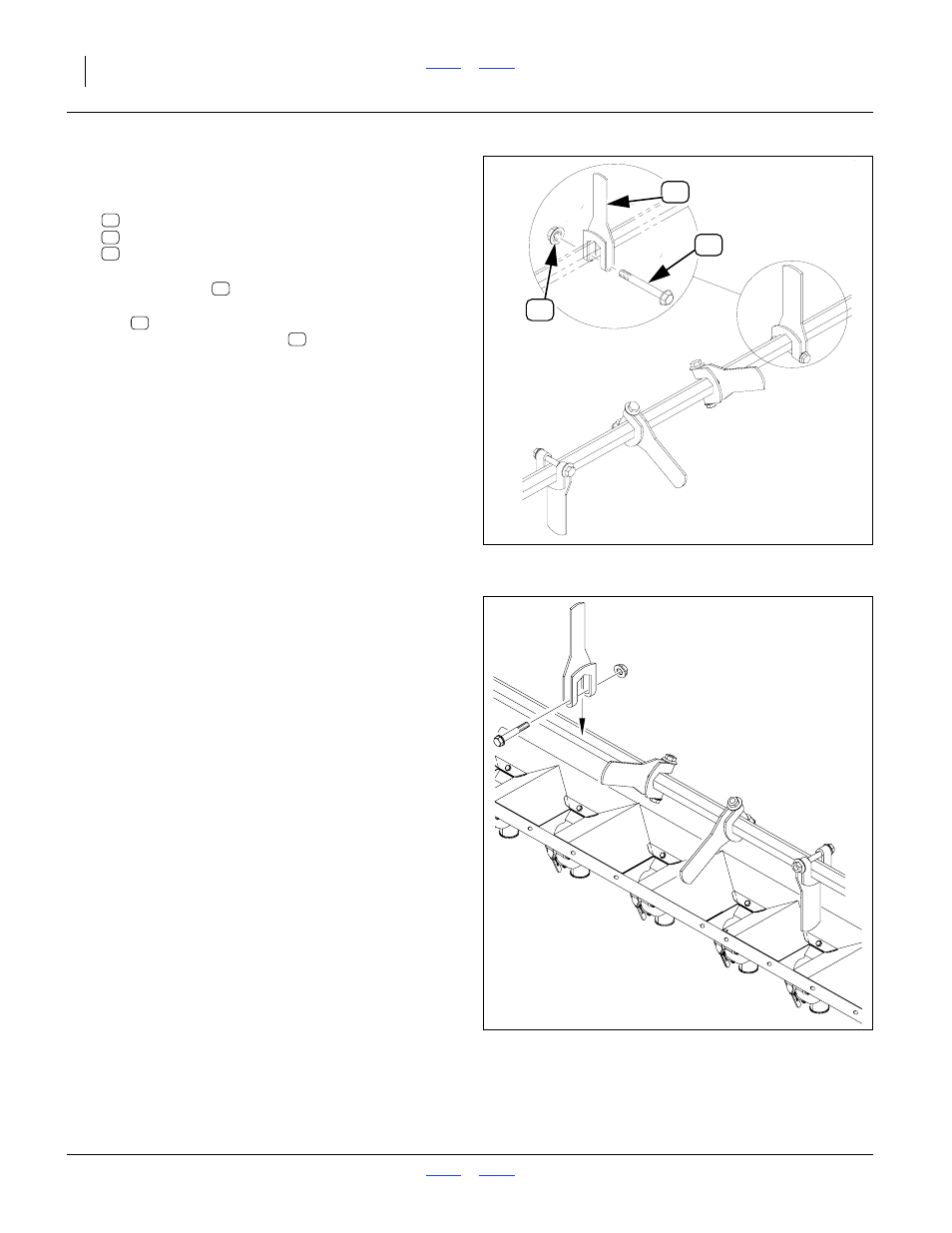

Refer to Figure 8:
8.
Select as needed:
118-493D AGITATOR PADDLE 3/4 HEX
802-448C HFSS 1/4-20X2 GR5
803-088C NUT HEX LOCK 1/4-20 FLG
Slip one paddle over the hex shaft directly above
a feed cup. Insert a
1 ⁄
4
-20 x 2 inch long hex flange
bolt through the paddle and secure with a
1 ⁄
4
inch hex flange lock nut . Before tightening a
paddle or group of paddles, carefully rotate the drive
system to make sure paddles do not hit the tray
dividers.
9. After checking for interference, torque the paddle
bolts to 9 foot-pounds. (108 inch-pounds.)
10. Install the next paddle over the next feeder cup.
Index this paddle
1 ⁄
6
th
of a turn by sliding it onto the
next set of flats. Continue the installation, using the
next set of flats for each paddle. The fully
assembled shaft will have a built in spiral when
finished.
