Great Plains 1205NT Assembly Instructions User Manual
Page 6
6
Agitator
Front
Great Plains Mfg., Inc.
118-598M
Front
2014-06-16

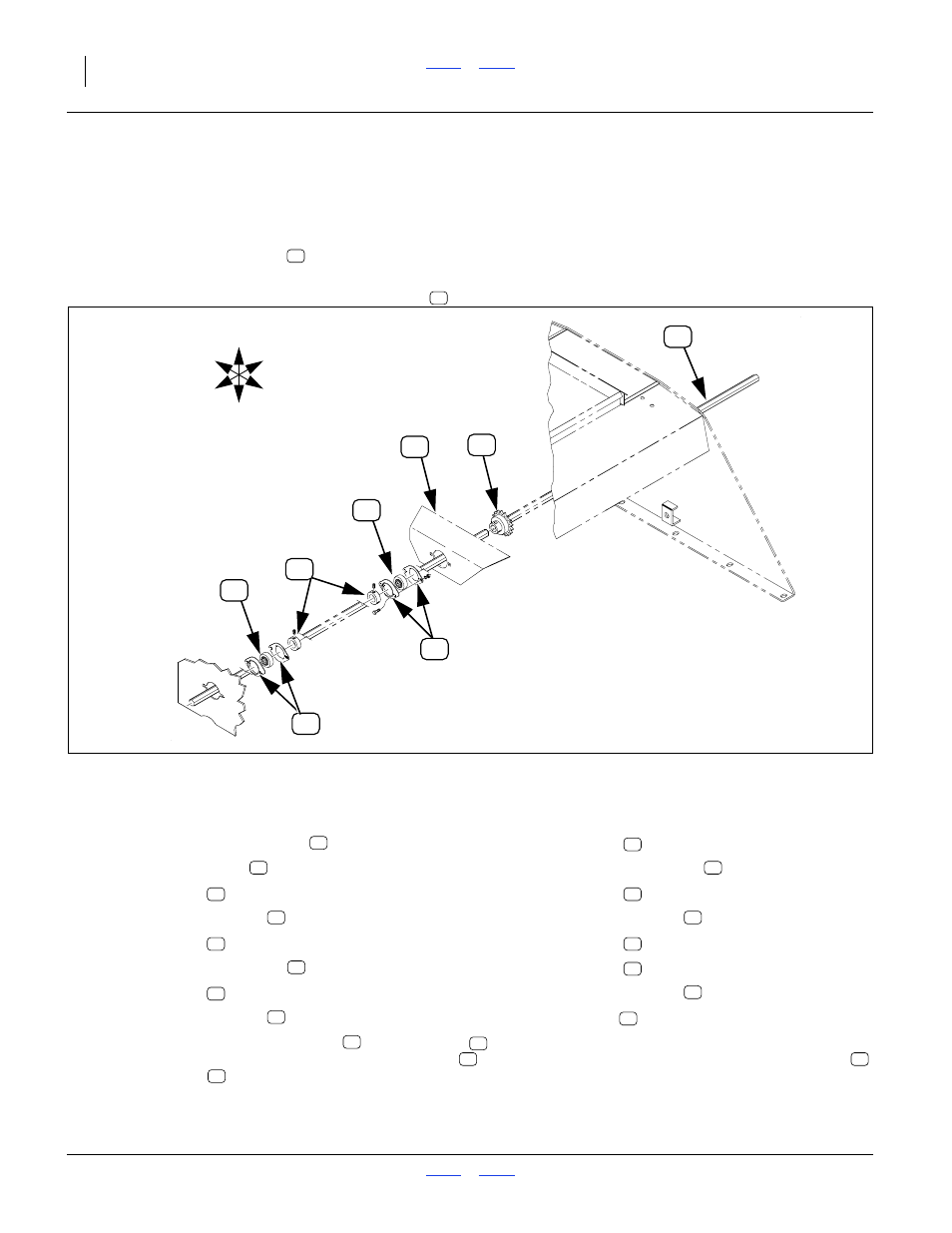

Refer to Figure 6
4.
Unpin the top of the hydraulic cylinder located at
the left side of the drill and lower the cylinder to the
frame in order to access the hex shaft insertion
point.
5.
Slide the
3
⁄
4
inch hex shaft
into the seed box
from the left side of the drill.
Note: The hub of the 17T-
3
⁄
4
inch hex bore sprocket
should be turned towards the center of the drill.
As the shaft progresses in, slide the following parts, starting at the left, onto the shaft.
a. Sprocket, 17T-
3
⁄
4
inch hex bore
b. Idler and bearing plate
c. Flangette-47mst
d. Bearing-
3
⁄
4
inch hex bore
e. Flangette-47mst
f. Lock collar-
3
⁄
4
inch hex bore
g. Flangette-47mst
h. Bearing-
3
⁄
4
inch hex bore
i.
Flangette-47mst
j.
Lock collar-
3
⁄
4
inch hex bore
k. Flangette-47mst
l.
Bearing-
3
⁄
4
inch hex bore
m. Flangette-47mst
n. Flangette-47mst
o. Bearing-
3
⁄
4
inch hex bore
p. Flangette-47ms
6.
Bolt the
3
⁄
4
inch hex bore bearings
and flangettes
to the center panel, partition, and idler plate using
5
⁄
16
-18 x
3
⁄
4
inch long round head square neck bolts
as shown in Figure 7. Install the
5
⁄
16
inch lock washer
and
5
⁄
16
-18 nut
hand tight.
7.
Bolt the idler plate to the inside of the box using the
3
⁄
8
-16 x 1
1
⁄
4
inch bolt, flat and lock washer removed in step 1.
37
40
36
78
76
40
U
D
R
L
F
B
78
76
37
33
Figure 7
Small Seed Attachment Agitation
36308
40
33
76
78
76
36
76
78
76
36
76
78
76
76
78
76
78
76
54
64
58
