18
Section 3 Adjustments
FCP1000 Three-Meter Drill and Hitch 148-693M-A 7/5/2005
Great Plains Mfg., Inc.
Opener Depth
When making opener adjustments, keep in mind that
openers will not run any deeper than coulters till the soil.

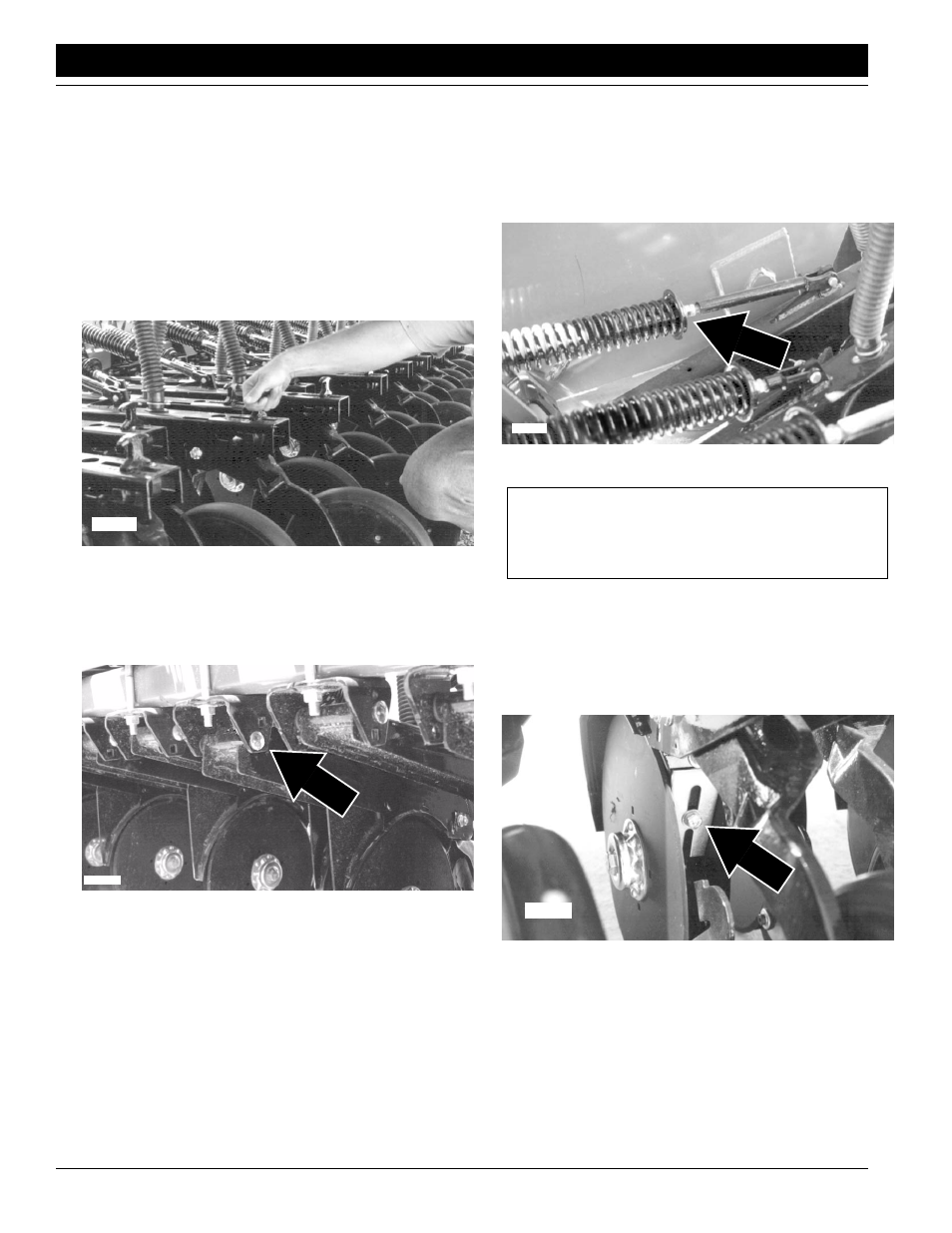

Press Wheel Adjustment
Changing the height of the press wheels automatically
changes seeding depth. To adjust, lift T-handle and slide
forward or back as shown in Figure 3-1.
•
For shallower seeding, slide handle ahead toward im-
plement.
•
For deeper seeding, slide handle back away from imple-
ment
.
Figure 3-1
Press Wheel Adjustment
Opener Mounting Height
You also can lower individual opener bodies that run in tire
tracks. To lower an opener, move opener-pivot bolt to
lower hole in opener mount. See Figure 3-2.
Figure 3-2
Individual Opener Height Adjustment
16671
16672
Opener Down Pressure
To adjust down pressure on individual openers that run in
tire tracks, change opener-spring length. To increase
down pressure, loosen the jam nut at lower end of opener
spring, then turn flange nut. See Figure 3-3. Each 6 mm
(1/4-inch) turn adds about 6 kg (13 pounds) of pressure.
After adjusting flange nut, tighten jam nut.
Figure 3-3
Individual Spring Adjustment
Disk Scraper Adjustment
To keep opener disks turning freely, dirt scrapers are
mounted between disks to clean as the disks rotate. As
field conditions vary, you may need to adjust the scrapers.
To adjust, loosen 3/8-inch bolt shown in Figure 3-4 and
raise or lower scraper as needed.
Figure 3-4
Disk Scraper
16688
IMPORTANT: Do not turn flange nut more than 25 mm
(one inch). Turning flange nut more than 25 mm (one
inch) could cause opener damage.
16634
