9
Section 1 Preparation and Setup
7/5/2005 FCP1000 Three-Meter Drill and Hitch 148-693M-A
Great Plains Mfg., Inc.
Section 1
Preparation and Setup
This section will help you prepare your tractor and implement
for use.
Prestart Checklist
1. Read and understand “Important Safety Information,”
page 1.
2. Check that all working parts are moving freely, bolts are
tight, and cotter pins are spread.
3. Check that all grease fittings are in place and lubricated.
Refer to Lubrication, “Maintenance and Lubrication,”
page 33.
4. Check that all safety decals and reflectors are correctly lo-
cated and legible. Replace if damaged. See Safety De-
cals, “Important Safety Information,”
page 4.
5. Inflate tires to pressure recommended and tighten wheel
bolts as specified. See “Appendix,” page 40.

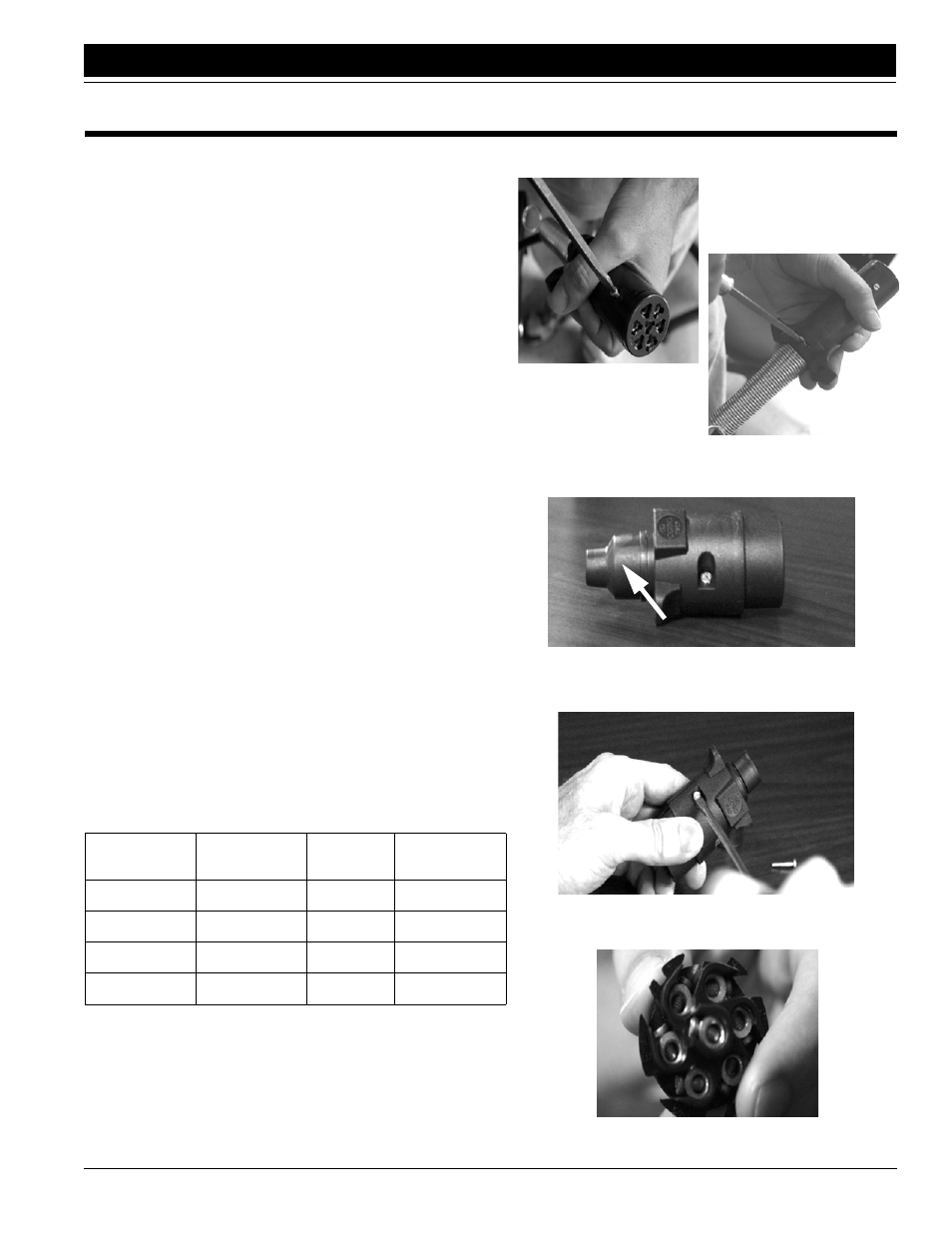

Wiring Drill
NOTE: If tractor does not comply with ASAE connector, use
the European adapter.
1. Remove screw from outer casing of ASAE connector.
Loosen screw holding wires in place from outer casing of
ASAE connector. Pull outer casing apart. Disconnect
wires from connector by removing screws. See Figure 1-1.
2. Completely remove outer casing from wires.
3. Remove black rubber end piece from European adapter.
Thread wires through black rubber end piece starting with
the smaller end. See Figure 1-2.
4. Remove the two screws holding the outer casing of the Eu-
ropean adapter together. Keep for reuse. See Figure 1-3.
5. Remove connector from outer casing. Thread wires under
metal bar in bottom of outer casing.
6. Attach wires to connector using the terminal number indi-
cators on the back of the connector and the table below.
See Table below and Figure 1-4.
7. Align connector in bottom of outer casing.
NOTE: BE SURE CONNECTOR AND CASING ARE PROP-
ERLY ALIGNED, OTHERWISE CASING WILL NOT FIT COR-
RECTLY.
8. Tighten screws securing wires and metal bar in place.
9. Replace top of outer casing. Insert and tighten screws re-
moved in Step 3.
Conductor
Indicator
Wire
Color
Terminal
Number
Circuit
Wht White 3 Ground
Yel Yellow 1 Left Blinker
Grn Green 4 Right Blinker
Brn Brown 6 Tail Lamps
10. Slide black rubber end piece over the end of the outer
casing securing the wires.
23264
23265
Figure 1-1
Removing ASAE Connector
End Piece
23252
Figure 1-2
European Adapter
23254
Figure 1-3
Remove Screws to Outer Casing
23255
Figure 1-4
Back of Connector
