Great Plains 1007NT-1906 Assembly Instructions User Manual
General information, Pull-type 10-foot 09 series no-till drills, Related documents

Great Plains Manufacturing, Inc.
1
© Copyright 2009
Printed 08/21/2009
151-169M
1007NT Caster Brace Update
Pull-Type 10-Foot 09 Series No-Till Drills
General Information
These instructions explain how to install a Caster Brace
Update. The brace reduces the potential for weldment
damage if the drill is subject to extended periods of
transport over unusually rough roads.
Great Plains recommends installing this update on all
drills, regardless of projected transport.
These instructions apply to an installation of:
One kit updates one drill.
This kit is only for the 1007NT pull type 10-foot no-till drill
with 07 Series openers, manufactured prior to mid-2009.
The kit is not compatible with CP1000 drills, EW10 family
drills or 3-point drills.
Related Documents
Have the Operator Manual at hand for drill movements.
Have the current Parts Manual at hand for parts ID.
Notations and Conventions
Call-Outs
• 1007NT-1575
• 1007NT-1906
When you see this symbol, the subsequent instructions
and warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Kit
Kit Description
151-168A
1007 REAR CASTER BRACE KIT
150-290M
Operator, 1007NT
150-290P
Parts, 1007NT
“Left” and “Right” are facing in the
direction of machine travel. An orienta-
tion rose in the line art illustrations
shows the directions of Left, Right,
Front, Back, Up, Down.
to
Single-digit callouts identify components in
the currently referenced Figure. These num-
bers may be reused for different items from
page to page.
to
Two-digit callouts in the range 11 to 15 refer-
ence new parts from the list on page 7.
to
Two-digit callouts in the range 51 to 54 refer-
ence existing parts from the list on page 7

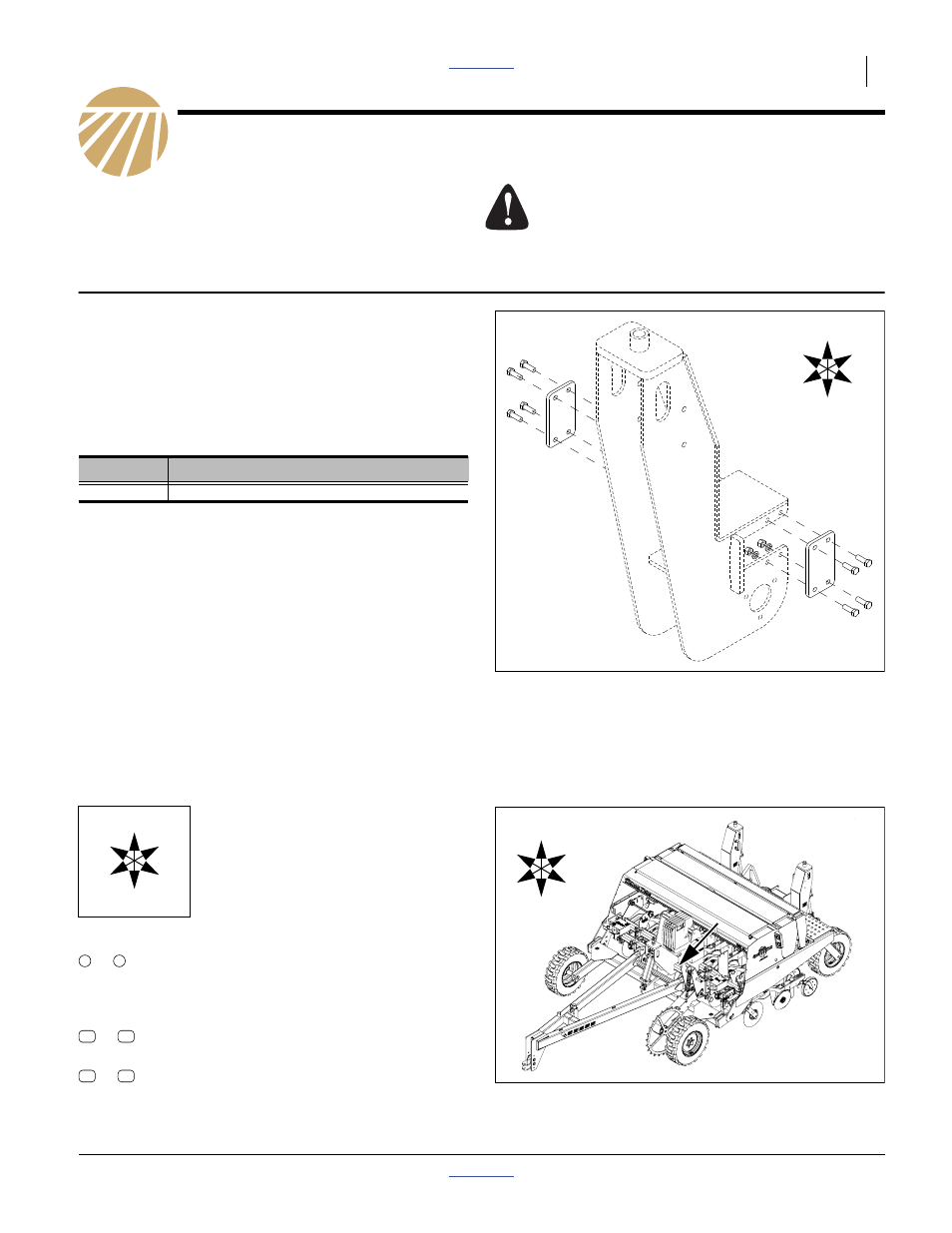

Figure 1
Kit Parts (Solid Lines)
29712
U
D
B
F
R
L
Figure 2
1007NT Serial Number Location
28454
U
D
F
B
L
R
U
D
L
R
B
F
1
9
