7 4/25/06 Great Plains Mfg., Inc.
Section 2 Assembly Instructions & Set-Up
EWNT7 and EWNT10 End Wheel No Till Drill 150-082M-A

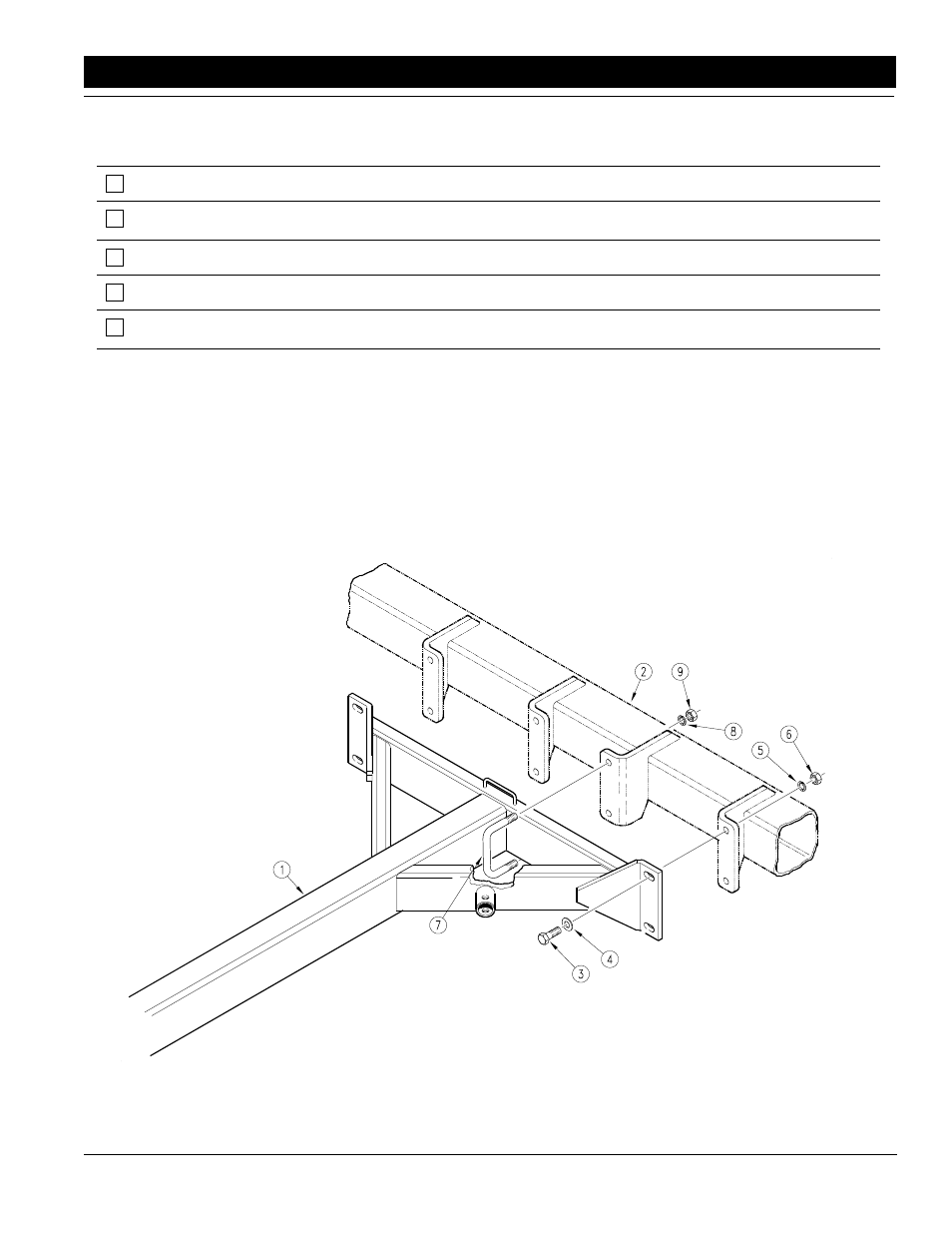

Refer to Figure 2-1:
Before starting the drill assembly, be sure that the drill
frame is safely supported and the end wheel tires are
blocked.
Bolt the outside legs of the tongue weldment (#1) to the
drill frame (#2) using 3/4" x 2 1/4" long bolts (#3), 3/4"
SAE flat washers (#4), 3/4" lock washers (#5), and 3/4"
hex nuts (#6).
Connect the rear tube of the tongue (#1) to the drill frame
(#2) using 3/4" x 6 1/32" x 3 1/4" long u-bolts (#7), 3/4"
lock washers (#8), and 3/4" hex nuts (#9).
Tighten all hardware to the torque specification listed in
the "Nut & Bolt Torquing Chart" on page 6.
Pre-Assembly Checklist
Check
All major components
Fasteners that were shipped with the End Wheel No-Till Drill.
NOTE: Some of the hardware from the factory has been installed in the location where it will be used.
Have a minimum of 2 people at hand while assembling the End Wheel No-Till Drill.
Have a fork lift or loader along with chains and safety stands ready for the assembly task.
If you are unsure where a fastener is used, use the parts section of this manual to identify it. Be sure the part gets
used in the correct location.
Tongue & Pull Bar Assembly
Figure 2-1
10681
