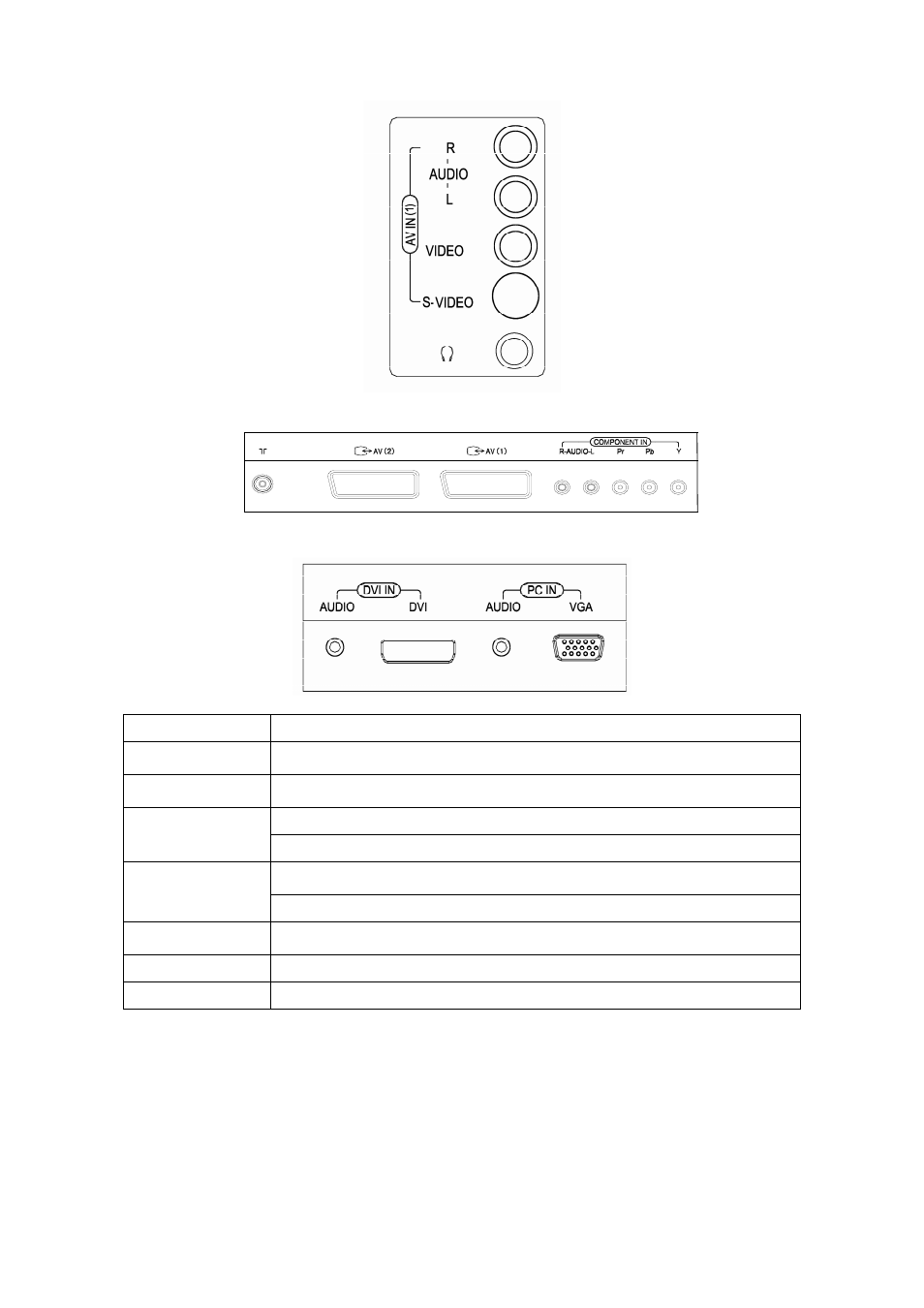

Enlarged View of Signal Input/Output Terminals 1:
Enlarged View of Signal Input/Output Terminals 2:
Enlarged View of Signal Input/Output Terminals 3:
Items Description
AV IN
Video or Y/C input. When they are input respectively, sign of AV(Video) or AV (Y/C)
appears on the screen accordingly
HEADPHONE
OUTPUT
Headphone audio signal output
Video or RGB signal input
AV(1)
TV-Video signal output
Video or Y/C signal input. When they are input respectively, sign of AV2(Video) or
AV2(Y/C) appears on the screen accordingly
AV(2)
TV-Video signal output
COMPONENT IN
Capable of transmitting YPbPr signal from DVD or other equipments to YPbPr input
port
DVI IN
Digital video signal input
PC IN
PC signal input
