Models ADI334 and ADI345 Air Drill Implement 160-195M

5/11/05

Great Plains Mfg., Inc.

14464

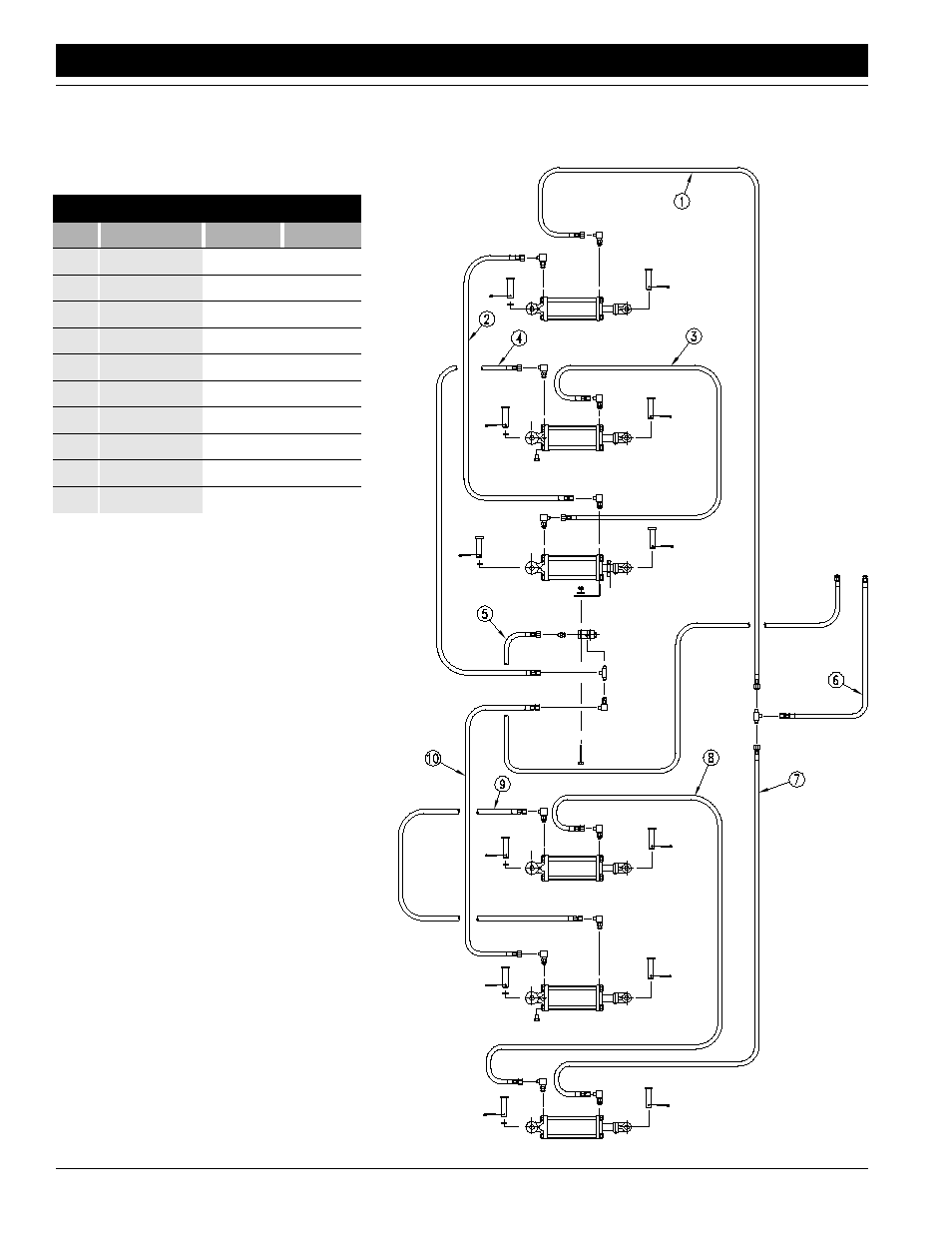

34-Foot Lifting Hydraulics

Hydraulic Hose Sizes

Item

Part Number

I.D.

Length

1

811-235C

3/8

222

2

811-237C

3/8

174

3

811-245C

3/8

74

4

811-245C

3/8

74

5

811-236C

3/8

84

6

811-123C

3/8

51

7

811-237C

3/8

174

8

811-235C

3/8

222

9

811-127C

3/8

111

10

811-127C

3/8

111

Hydraulic Schematics–34-Foot Drill
